Name: Reinforced POM Hydraulic Cylinder Piston Rings For Agricultural Machinery
Brand: Shaanxi Kelong New Materials Technology Co., Ltd.
SKU: KL52
Price: Negotiable USD
Availability: InStock

Home > products > Hydraulic Guide Ring >

Reinforced POM Hydraulic Cylinder Piston Rings For Agricultural Machinery

Reinforced Hydraulic Cylinder Piston Rings

POM Hydraulic Cylinder Piston Rings

Place of Origin:

China

Brand Name:

Cologne

Certification:

ISO9001 / IRIS

Model Number:

KL52

Request A Quote

Reinforced POM Hydraulic Cylinder Piston Rings For Agricultural Machinery

Product Details

Style:

Hydraulic Cylinder Piston Rings

Material:

POM

Temperature (max) °C:

-40/+110

Sliding Speed (max)- M/s:

1.0

Application:

Agricultural Machinery / Mobile Machinery / Industrial Cylinders / Light And Medium Duty Cylinders

Payment & Shipping Terms

Packaging Details:

Opp bags

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

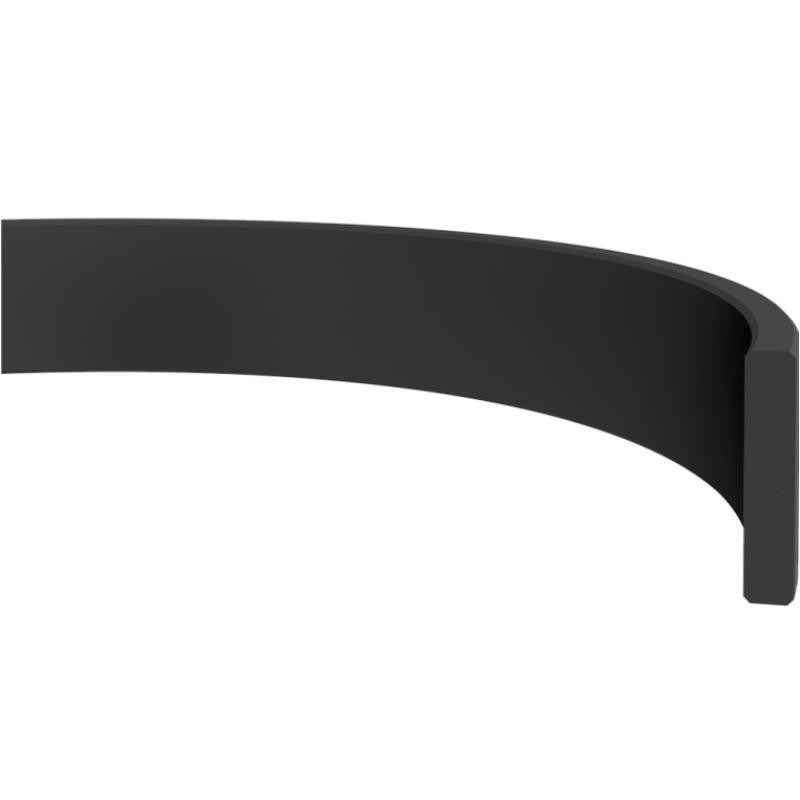

Good Load Bearing Glass-Fibre Reinforced POM Guide Ring With In Hydraulic Applications

KL52 is a glass-fibre reinforced POM guide ring, designed for general purpose in hydraulic applications. Glass-fibre composition in the material increases the load bearing capacity of the guiding element.

Advantages

• Easy installation
• The high form stability at operating temperature range
• Wide dimension range

Area of Application

• Agricultural machinery
• Mobile machinery
• Industrial cylinders
• Light and medium duty cylinders

Reinforced POM Hydraulic Cylinder Piston Rings For Agricultural Machinery 0

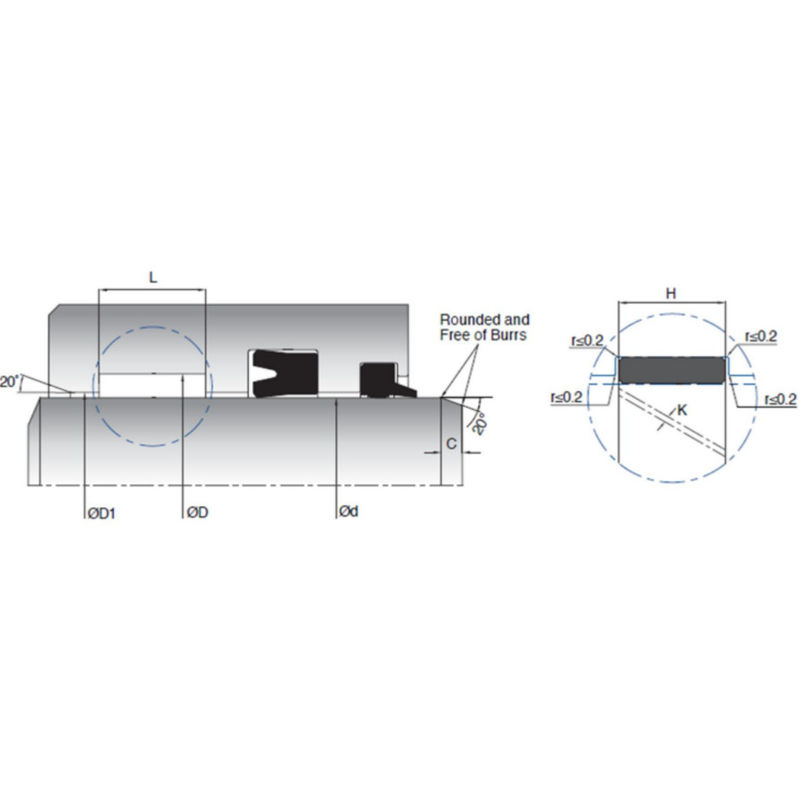

	d (f8)	D (H8)	D1 (H9)	L (+0.2/-0)	H	MATERIAL
K52-008	8	11	8.4	3.3	3.1	POM
K52-015	15	20	15.5	5.7	5.5	POM
K52-016	16	20	16.4	9.6	9.4	POM
K52-016/1	16	19	16.4	6	5.8	POM
K52-018	18	22	18.4	9.6	9.4	POM
K52-018/1	18	22	18.4	15	14.8	POM
K52-020	20	24	20.4	9.6	9.4	POM
K52-020/1	20	26	20.6	4	3.8	POM
K52-020/2	20	26	20.6	9.7	9.5	POM
K52-020/3	20	25	20.5	5.6	5.4	POM
K52-020/5	20	23	20.4	2.5	2.3	POM
K52-020/6	20	23	20.4	5.6	5.4	POM
K52-022	22	26	22.4	9.6	9.4	POM
K52-022/1	22	25	22.4	4.2	4	POM
K52-022/2	22	27	22.5	9.7	9.5	POM
K52-022/4	22	26	22.4	5.2	5	POM
K52-025	25	31	25.6	9.6	9.4	POM
K52-025/1	25	29	25.4	9.6	9.4	POM
K52-025/2	25	30	25.5	5.6	5.4	POM
K52-025/3	25	31	25.6	9.9	9.7	POM
K52-025/4	25	29	25.4	6.4	6.2	POM
K52-025/5	25	30	25.5	15.2	15	POM
K52-025/7	25	28	25.4	5.5	5.3	POM
K52-025/8	25	28	25.4	3.2	3	POM
K52-025/10	25	29	25.4	5.6	5.4	POM
K52-026	26	32	26.6	10	9.8	POM
K52-027	27	32	27.5	5.6	5.4	POM
K52-027/1	27	31	27.4	9.6	9.4	POM
K52-028	28	32	28.4	9.7	9.5	POM
K52-028/2	28	33	28.5	6.4	6.2	POM
K52-028/3	28	33	28.5	5.7	5.5	POM
K52-028/4	28	34	28.6	9.7	9.5	POM
K52-028/5	28	33	28.5	9.7	9.5	POM
K52-028/6	28	32	28.4	6.4	6.2	POM
K52-028/7	28	32	28.4	10.2	10	POM
K52-030	30	35	30.5	15.2	15	POM
K52-030/1	30	34	30.4	9.7	9.5	POM
K52-030/2	30	36	30.6	9.5	9.3	POM
K52-030/3	30	35	30.5	9.7	9.5	POM
K52-030/4	30	35	30.5	8.2	8	POM
K52-030/5	30	35	30.5	5.6	5.4	POM
K52-032	32	36	32.4	9.7	9.5	POM
K52-032/1	32	38	32.6	9.6	9.4	POM
K52-032/2	32	37	32.5	11.2	11	POM
K52-032/3	32	37	32.5	5.6	5.4	POM
K52-032/4	32	35.1	32.4	4	3.8	POM
K52-032/5	32	36	32.4	6.4	6.2	POM
K52-033	33	36	33.4	4	3.8	POM
K52-035	35	40	35.5	15.2	15	POM
K52-035/1	35	39	35.4	9.7	9.5	POM
K52-035/2	35	40	35.5	9.9	9.7	POM
K52-035/3	35	41	35.6	9.6	9.4	POM
K52-035/4	35	40	35.5	5.6	5.4	POM
K52-035/5	35	40	35.5	6.3	6.1	POM
K52-035/6	35	40	35.5	9.7	9.5	POM
K52-035/7	35	41	35.6	20	19.8	POM
K52-035/8	35	39	35.4	6.5	6.3	POM
K52-035/10	35	41	35.6	13	12.8	POM
K52-036	36	40	36.4	9.7	9.5	POM
K52-036/1	36	42	36.6	9.8	9.6	POM
K52-036/2	36	41	36.5	9.7	9.5	POM
K52-036/3	36	41	36.5	5.6	5.4	POM
K52-036/4	36	40	36.4	6.1	5.9	POM
K52-036/5	36	40	36.4	6.4	6.2	POM
K52-036/7	36	40	36.4	15.2	15	POM
K52-038	38	42	38.4	9.6	9.4	POM
K52-038/1	38	41	38.4	21	20.8	POM
K52-038/2	38	42	38.4	4.2	4	POM
K52-039	39	44	39.5	15.4	15.2	POM
K52-039/1	39	45	39.6	10	9.8	POM
K52-040	40	45	40.5	15.2	15	POM
K52-040/1	40	44	40.4	9.7	9.5	POM
K52-040/2	40	46	40.6	9.8	9.6	POM
K52-040/3	40	45	40.5	9.7	9.5	POM
K52-040/4	40	45	40.5	20.2	20	POM
K52-040/5	40	45	40.5	5	4.8	POM
K52-040/6	40	45	40.5	5.6	5.4	POM
K52-040/7	40	46	40.6	13	12.8	POM
K52-040/8	40	44	40.4	6.5	6.3	POM
K52-040/9	40	45	40.5	9.8	9.6	POM
K52-040/10	40	46	40.6	9.7	9.5	POM
K52-040/11	40	45	40.5	9.9	9.7	POM
K52-040/12	40	45	40.5	8.2	8	POM
K52-043	43	48	43.5	5.8	5.6	POM
K52-044.45	44.45	50.8	45.05	19.25	19.05	POM
K52-045	45	50	45.5	15.2	15	POM
K52-045/1	45	51	45.6	9.7	9.5	POM
K52-045/2	45	50	45.5	9.7	9.5	POM
K52-045/3	45	51	45.6	12.7	12.5	POM
K52-045/4	45	49	45.4	20	19.8	POM
K52-045/5	45	50	45.5	5.6	5.4	POM
K52-045/6	45	50	45.5	9.9	9.7	POM
K52-045/7	45	48	45.4	4	3.8	POM
K52-045/8	45	51	45.6	20	19.8	POM
K52-045/9	45	51	45.6	8.2	8	POM
K52-045/10	45	50	45.5	8.2	8	POM
K52-046	46	50	46.4	15.2	15	POM
K52-046/1	46	50	46.4	4.2	4	POM
K52-048	48	54	48.6	9.8	9.6	POM
K52-048/1	48	53	48.5	9.6	9.4	POM
K52-050	50	55	50.5	15.2	15	POM
K52-050/1	50	56	50.6	9.7	9.5	POM
K52-050/2	50	56	50.6	12.7	12.5	POM
K52-050/3	50	55	50.5	8.2	8	POM
K52-050/4	50	55	50.5	20.2	20	POM
K52-050/5	50	55	50.5	9.7	9.5	POM
K52-050/6	50	55	50.5	5.6	5.4	POM
K52-050/8	50	55	50.5	9.9	9.7	POM
K52-050/10	50	53	50.4	5.6	5.4	POM
K52-050/11	50	56	50.6	20.2	20	POM
K52-050/12	50	56	50.6	8.2	8	POM
K52-050.8	50.8	57.15	51.4	19.25	19.05	POM
K52-050.8/1	50.8	53.98	51.2	25.6	25.4	POM
K52-050.8/2	50.8	57.15	51.4	12.8	12.6	POM
K52-055	55	60	55.5	15.2	15	POM
K52-055/1	55	61	55.6	9.7	9.5	POM
K52-055/2	55	60	55.5	8.2	8	POM
K52-055/3	55	60	55.5	20.2	20	POM
K52-055/4	55	61	55.6	12.7	12.5	POM
K52-055/5	55	60	55.5	9.7	9.5	POM
K52-055/6	55	60	55.5	5.6	5.4	POM
K52-055/7	55	60	55.5	5.8	5.6	POM
K52-055/8	55	60	55.5	9.9	9.7	POM
K52-056	56	62	56.6	12.7	12.5	POM
K52-056/1	56	60	56.4	9.8	9.6	POM
K52-056/2	56	61	56.5	9.7	9.5	POM
K52-056/3	56	60	56.4	8.1	7.9	POM
K52-056/4	56	62	56.6	20.2	20	POM
K52-056/6	56	61	56.5	9.9	9.7	POM
K52-056/7	56	62	56.6	8.2	8	POM
K52-058	58	63	58.5	9.7	9.5	POM
K52-058/1	58	63	58.5	5.6	5.4	POM
K52-058/2	58	63	58.5	10	9.8	POM
K52-058/3	58	63	58.5	15.2	15	POM
K52-060	60	65	60.5	15.2	15	POM
K52-060/1	60	66	60.6	12.7	12.5	POM
K52-060/2	60	65	60.5	9.7	9.5	POM
K52-060/3	60	65	60.5	20.2	20	POM
K52-060/4	60	65	60.5	8.2	8	POM
K52-060/5	60	66	60.6	9.9	9.7	POM
K52-060/6	60	65	60.5	5.5	5.3	POM
K52-060/7	60	64	60.4	19.5	19.3	POM
K52-060/8	60	64	60.4	10.2	10	POM
K52-060/9	60	66	60.6	9.7	9.5	POM
K52-060/10	60	65	60.5	9.5	9.3	POM
K52-060/11	60	65	60.5	9.9	9.7	POM
K52-060/12	60	65	60.5	24.7	24.5	POM
K52-060/13	60.3	63.33	60.7	15	14.8	POM
K52-060/14	60	65	60.5	4.2	4	POM
K52-060/15	60	66	60.6	20.2	20	POM
K52-060/16	60	66	60.6	8.2	8	POM
K52-062	62	65	62.4	20	19.8	POM
K52-063	63	69	63.6	12.7	12.5	POM
K52-063/1	63	68	63.5	9.7	9.5	POM
K52-063/2	63	67	63.4	6.5	6.3	POM
K52-063/4	63	69	63.6	30.2	30	POM
K52-063/5	63	68	63.5	30.2	30	POM
K52-063/6	63	69	63.6	9.2	9	POM
K52-063.5	63.4	66.68	63.8	25.2	25	POM
K52-065	65	70	65.5	15.2	15	POM
K52-065/1	65	71	65.6	12.7	12.5	POM
K52-065/2	65	70	65.5	5.6	5.4	POM
K52-065/3	65	70	65.5	7	6.8	POM
K52-065/4	65	70	65.5	9.9	9.7	POM
K52-065/5	65	70	65.5	9.7	9.5	POM
K52-066	66	70	66.4	10	9.8	POM
K52-067	67	72	67.5	5.6	5.4	POM
K52-069.85	69.85	76.2	70.45	19.25	19.05	POM
K52-070	70	75	70.5	15.2	15	POM
K52-070/1	70	76	70.6	12.7	12.5	POM
K52-070/2	70	75	70.5	5.6	5.4	POM
K52-070/3	70	76	70.6	25.2	25	POM
K52-070/4	70	76	70.6	10.2	10	POM
K52-070/5	70	75	70.5	9.7	9.5	POM
K52-070/7	70	75	70.5	30.2	30	POM
K52-070/8	70	75	70.5	9.9	9.7	POM
K52-070/9	70	75	70.5	39.7	39.5	POM
K52-070/12	70	75	70.5	20.2	20	POM
K52-072	72	80	72.6	6.2	6	POM
K52-072/1	72	78	72.6	12.7	12.5	POM
K52-075	75	80	75.5	15.2	15	POM
K52-075/1	75	81	75.6	12.7	12.5	POM
K52-075/2	75	80	75.5	8.2	8	POM
K52-075/3	75	80	75.5	9.7	9.5	POM
K52-075/4	75	80	75.5	5.6	5.4	POM
K52-075/6	75	83	75.6	9.7	9.5	POM
K52-075/7	75	81	75.6	19.2	19	POM
K52-075/8	75	80	75.5	9.9	9.7	POM
K52-075/9	75	80	75.5	25.2	25	POM
K52-080	80	85	80.5	15.2	15	POM
K52-080/1	80	86	80.6	12.7	12.5	POM
K52-080/2	80	84	80.4	9.5	9.3	POM
K52-080/3	80	85	80.5	9.7	9.5	POM
K52-080/4	80	86	80.6	25	24.8	POM
K52-080/5	80	85	80.5	20	19.8	POM
K52-080/6	80	84	80.4	8.3	8.1	POM
K52-080/7	80	86	80.6	30.2	30	POM
K52-080/8	80	85	80.5	9.9	9.7	POM
K52-080/9	80	85	80.5	5.6	5.4	POM
K52-080/10	80	84	80.4	15	14.8	POM
K52-080/11	80	85	80.5	9.5	9.3	POM
K52-080/12	80	85	80.5	24.7	24.5	POM
K52-084	84	90	84.6	15.2	15	POM
K52-085	85	90	85.5	15.2	15	POM
K52-085/1	85	91	85.6	12.7	12.5	POM
K52-085/2	85	90	85.5	5.7	5.5	POM
K52-085/3	85	90	85.5	9.9	9.7	POM
K52-085/4	85	90	85.5	9.7	9.5	POM
K52-086	86	92	86.6	12.7	12.5	POM
K52-090	90	95	90.5	15.2	15	POM
K52-090/1	90	96	90.6	12.7	12.5	POM
K52-090/2	90	95	90.5	9.7	9.5	POM
K52-090/3	90	95	90.5	5.8	5.6	POM
K52-090/4	90	94	90.4	15.2	15	POM
K52-090/6	90	96	90.6	40	39.8	POM
K52-090/7	90	96	90.6	30.2	30	POM
K52-090/8	90	95	90.5	9.9	9.7	POM
K52-094	94	100	94.6	13	12.8	POM
K52-094/1	94	100	94.6	15.2	15	POM
K52-095	95	100	95.5	15.2	15	POM
K52-095/1	95	101	95.6	12.7	12.5	POM
K52-095/2	95	100	95.5	9.7	9.5	POM
K52-095/3	95	100	95.5	5.6	5.4	POM
K52-095/4	95	103	95.6	9.7	9.5	POM
K52-095/6	95	100	95.5	8.2	8	POM
K52-100	100	105	100.5	15.2	15	POM
K52-100/1	100	106	100.6	12.7	12.5	POM
K52-100/2	100	104	100.4	15.2	15	POM
K52-100/3	100	105	100.5	9.9	9.7	POM
K52-100/4	100	104	100.4	15	14.8	POM
K52-100/5	100	105	100.5	15	14.8	POM
K52-100/6	100	105	100.5	9.7	9.5	POM
K52-104	104	110	104.6	10.2	10	POM
K52-105	105	110	105.5	15.2	15	POM
K52-105/1	105	110	105.5	8.2	8	POM
K52-105/2	105	110	105.5	9.7	9.5	POM
K52-105/4	105	115	105.6	17.2	17	POM
K52-105/5	105	110	105.5	9.9	9.7	POM
K52-110	110	116	110.6	12.7	12.5	POM
K52-110/1	110	115	110.5	9.7	9.5	POM
K52-110/2	110	115	110.5	20.2	20	POM
K52-110/3	110	116	110.6	7.7	7.5	POM
K52-110/5	110	116	110.6	25.6	25.4	POM
K52-115	115	120	115.5	15.2	15	POM
K52-115/1	115	121	115.6	12.7	12.5	POM
K52-115/2	115	120	115.5	9.7	9.5	POM
K52-115/3	115	120	115.5	15	14.8	POM
K52-120	120	125	120.5	15.2	15	POM
K52-120/1	120	126	120.6	12.7	12.5	POM
K52-120/2	120	125	120.5	9.7	9.5	POM
K52-120/3	120	125	120.5	9.9	9.7	POM
K52-125	125	131	125.6	12.7	12.5	POM
K52-125/1	125	130	125.5	15.2	15	POM
K52-125/2	125	130	125.5	7.2	7	POM
K52-125/3	125	130	125.5	9.9	9.7	POM
K52-125/4	125	130	125.5	15	14.8	POM
K52-130	130	135	130.5	15.2	15	POM
K52-130/1	130	136	130.6	12.7	12.5	POM
K52-135	135	140	135.5	9.7	9.5	POM
K52-135/1	135	140	135.5	15.2	15	POM
K52-140	140	145	140.5	15.2	15	POM
K52-140/1	140	146	140.6	12.7	12.5	POM
K52-140/2	140	145	140.5	9.9	9.7	POM
K52-140/3	140	145	140.5	25	24.8	POM
K52-146	146	150	146.4	10.2	10	POM
K52-150	150	155	150.5	15.2	15	POM
K52-150/1	150	156	150.6	12.7	12.5	POM
K52-150/2	150	154	150.4	15.2	15	POM
K52-150/4	150	160	150.6	35	34.8	POM
K52-150/5	150	155	150.5	25	24.8	POM
K52-150/6	150	156	150.6	19.2	19	POM
K52-155	155	160	155.5	15.2	15	POM
K52-155/1	155	160	155.5	9.7	9.5	POM
K52-160	160	165	160.5	15.2	15	POM
K52-160/1	160	166	160.6	12.7	12.5	POM
K52-160/2	160	166	160.6	19.1	18.9	POM
K52-170	170	175	170.5	15.2	15	POM
K52-175	175	180	175.5	9.7	9.5	POM
K52-180	180	185	180.5	15.2	15	POM
K52-180/1	180	186	180.6	19.2	19	POM
K52-190	190	195	190.5	15.2	15	POM
K52-195	195	200	195.5	15.2	15	POM
K52-200	200	206	200.6	19.2	19	POM
K52-200/1	200	205	200.5	15.2	15	POM
K52-210	210	216	210.6	19.2	19	POM
K52-220	220	226	220.6	19.2	19	POM

Tags：
