Name: Three Piece Hydraulic Piston Seals With Elastomeric Sealing Element / Guide Backup Rings
Brand: Cologne
SKU: KL28
Rating: 4.6 (112 reviews)

Home > products > Hydraulic Piston Seals >

Three Piece Hydraulic Piston Seals With Elastomeric Sealing Element / Guide Backup Rings

Three Piece Hydraulic Piston Seals

ISO9001 Hydraulic Piston Seals

Three Piece Piston Hydraulic Seals

Place of Origin:

China

Brand Name:

Cologne

Certification:

ISO9001 / IRIS

Model Number:

KL28

Request A Quote

Three Piece Hydraulic Piston Seals With Elastomeric Sealing Element / Guide Backup Rings

Product Details

Material:

NBR / FABRIC NBR / POM

Pressure (max) Bar:

400

Temperature (max) °C:

-30/+100

Sliding Speed (max)- M/s:

0.5

Style:

Hydraulic Piston Seals

Application:

Mining Industry / Marine Hydraulics / Iron And Steel Industry / Presses

Payment & Shipping Terms

Packaging Details:

Opp bags

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

Three Piece Double Acting Compact Seal With One Elastomeric Sealing Element And Two Guide Backup Rings

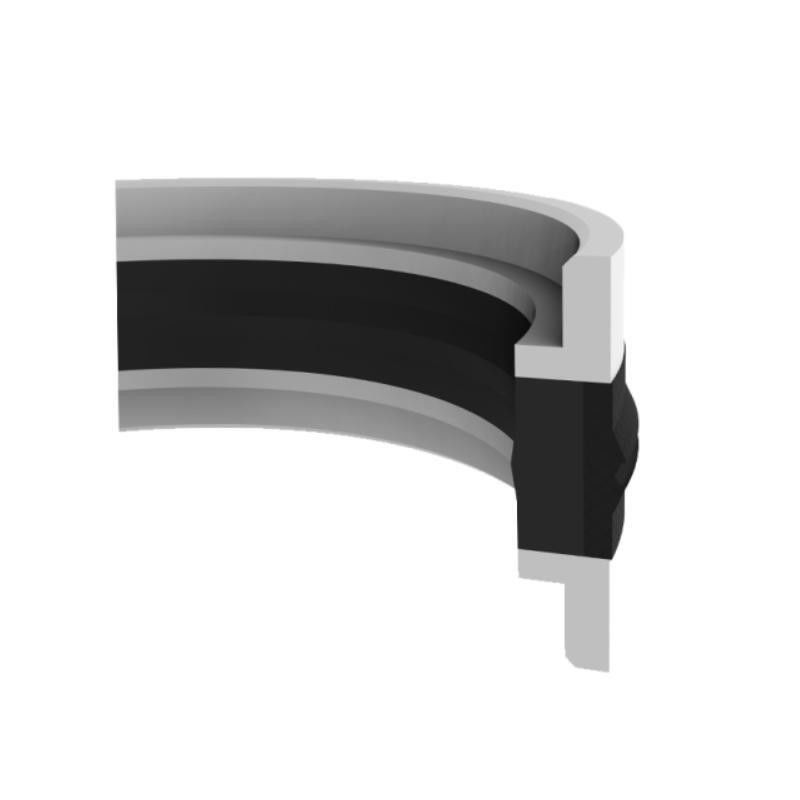

KL28 is a three piece double acting compact seal which consists of one fabric reinforced elastomeric sealing element and two thermoplastic guide backup rings. The self-lubricating sealing ring allow KL28 to work safely in systems with insufficient lubrication as well as rough surfaces

Advantages

• Good dynamic and static sealing
• Good sealing at heavy duty applications
• Long service life
• High wear resistance
• Free of stick-slip even at long stand by

Area of Application

• Mining industry
• Marine hydraulics
• Iron and steel industry
• Presses

Three Piece Hydraulic Piston Seals With Elastomeric Sealing Element / Guide Backup Rings 0

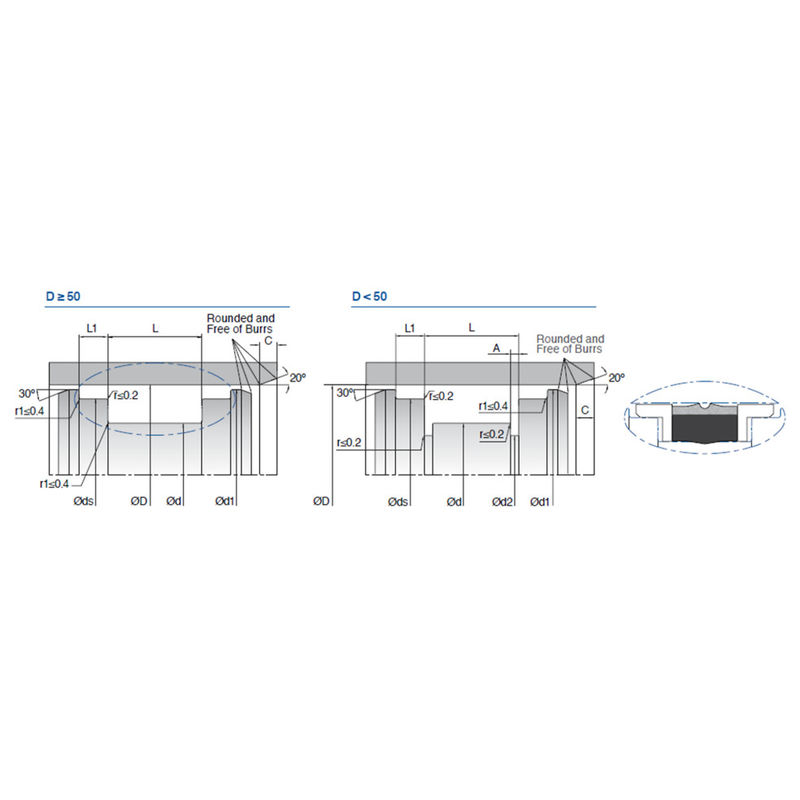

	D (H10)	d (h11)	L (+0.2/-0)	ds (h8)	d1 (±0.1)	d2 (+0/-0.1)	A (+0.1/-0)	L1	C	MATERIAL
KL28 025-017	25	17	13.5	21	24.4	14	2.1	3.2	4	FB
KL28 030-021	30	21	13.5	27	29.4	21	2.2	2.1	4	FB
KL28 030-022	30	22	13.5	26	29.4	19	2.1	3.2	4	FB
KL28 032-024	32	24	15.5	28	31.4	21	3.1	3.2	4	FB
KL28 035-027	35	27	15.5	31	34.4	24	3.1	3.2	4	FB
KL28 040-032	40	32	15.5	36	39.4	29	3.1	3.2	4	FB
KL28 045-037	45	37	15.5	41	44.4	34	3.1	3.2	4	FB
KL28 050-038	50	38	20.5	46	49.4	-	-	4.2	4	FB
KL28 060-048	60	48	20.5	56	59.4	-	-	4.2	4	FB
KL28 063-051	63	51	20.5	59	62.4	-	-	4.2	4	FB
KL28 065-053	65	53	20.5	61	64.4	-	-	4.85	4	FB
KL28 070-058	70	58	20.5	66	69.4	-	-	4.2	4	FB
KL28 075-063	75	63	20.5	71	69.4	-	-	4.2	4	FB
KL28 080-065	80	65	20	76	78.5	-	-	5	5	FB
KL28 080-066	80	66	22.5	76	79.4	-	-	5.2	4.5	FB
KL28 085-071	85	71	22.5	81	84.4	-	-	5.2	4.5	FB
KL28 090-076	90	76	22.5	86	89.4	-	-	5.2	4.5	FB
KL28 100-086	100	86	22.5	96	99.4	-	-	5.2	4.5	FB
KL28 110-096	110	96	22.5	106	109.4	-	-	5.2	4.5	FB
KL28 115-101	115	101	22.5	111	114.4	-	-	5.2	4.5	FB
KL28 120-106	120	106	22.5	116	119.4	-	-	5.2	4.5	FB
KL28 125-103	125	103	26.5	121	124.4	-	-	5.2	6	FB
KL28 125-108	125	108	26.5	121	124.4	-	-	7.2	5	FB
KL28 140-123	140	123	26.5	136	139.4	-	-	7.2	5	FB
KL28 150-133	150	133	26.5	146	149.4	-	-	7.2	5	FB
KL28 160-140	160	140	25	155	158	-	-	6.3	6	FB
KL28 160-143	160	143	26.5	156	159.4	-	-	7.2	5	FB
KL28 170-153	170	153	26.5	166	169.4	-	-	7.2	5	FB
KL28 180-163	180	163	26.5	176	179.4	-	-	7.2	5	FB
KL28 200-180	200	180	31.5	196	199.4	-	-	9.2	6	FB
KL28 220-200	220	200	31.5	216	219.4	-	-	9.2	6	FB
KL28 250-225	250	225	31.5	246	249.4	-	-	6.6	6	FB
KL28 250-230	250	230	31.5	246	249.4	-	-	9.2	6	FB
