KL128 - Piston Seal High Wear Resistance Low Friction And Stick-Slip Free Good Dynamic And Static Sealing

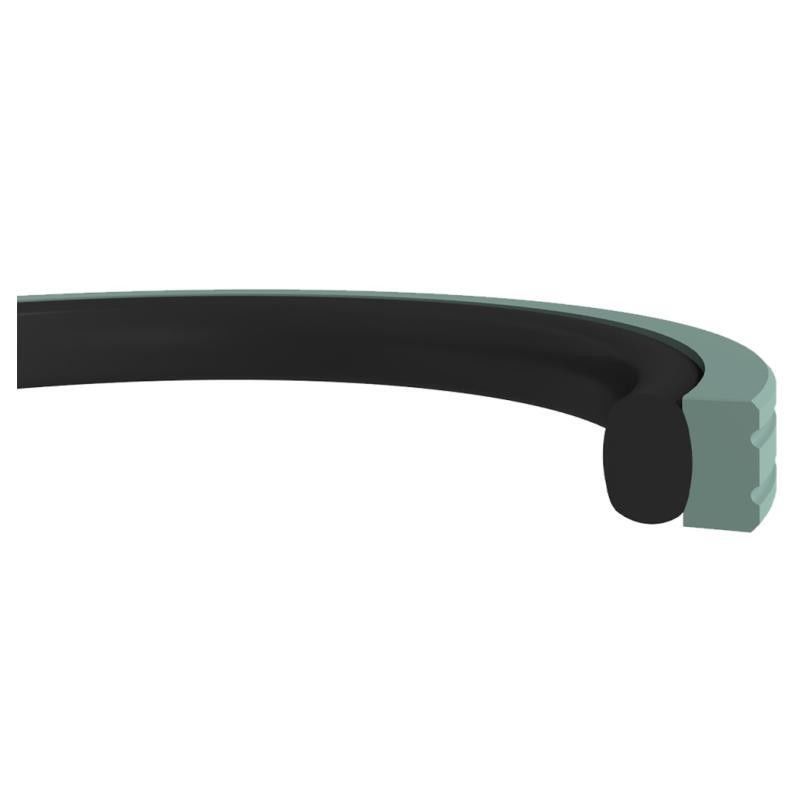

KL128 is a double acting rotary sealing element consisting of a PTFE ring and an energizer elastomer o-ring. It provides high performance with the superior properties of PTFE material in piston type pressurized rotary sealing applications.
PROPERTIES:
• Low friction, free of stick slip.
• High abrasion resistance.
• Wide temperature range.
• Good thermal conductivity.
• Low wear and high extrusion resistance.
• Wide fluid application range.
• Resistance against cold flow.

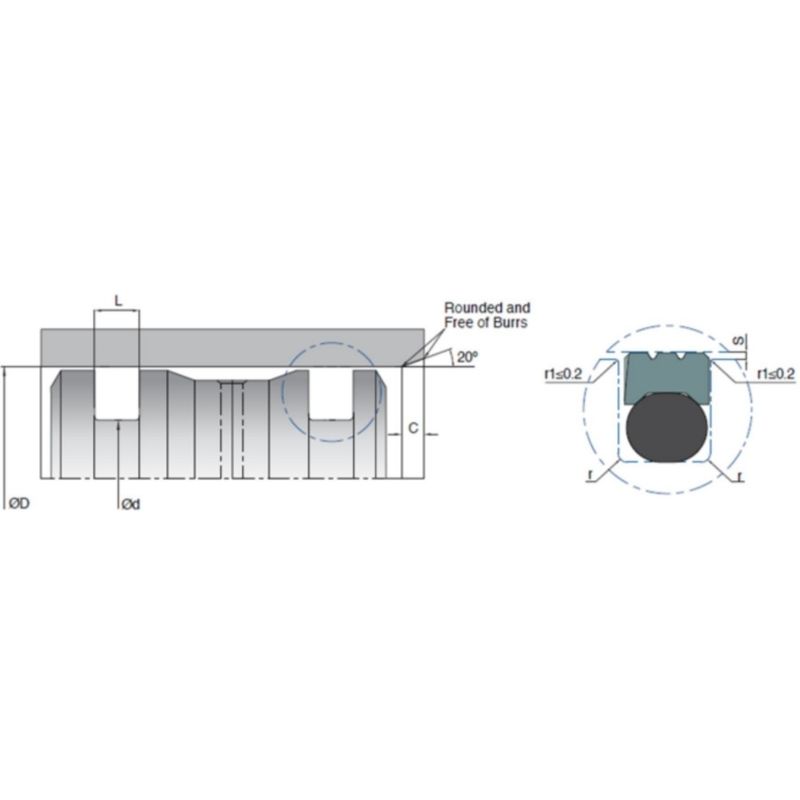

| D (H8) | d (h9) | L (+0.2/-0) | r | C | O-Ring | MATERIAL | |
| KL128-015 | 15 | 10.1 | 2.2 | 0.4 | 3 | 9.75x1.78 | PTFE NBR |
| KL128-016 | 16 | 11.1 | 2.2 | 0.4 | 3 | 10.82x1.78 | PTFE NBR |
| KL128-020 | 20 | 15.1 | 2.2 | 0.4 | 3 | 15.20x1.78 | PTFE NBR |
| KL128-025 | 25 | 20.1 | 2.2 | 0.4 | 3 | 19.00x1.78 | PTFE NBR |
| KL128-028 | 28 | 20.5 | 3.2 | 0.6 | 4.5 | 20.29x2.62 | PTFE NBR |
| KL128-030 | 30 | 25.1 | 2.2 | 0.4 | 3 | 25.12x1.78 | PTFE NBR |
| KL128-032 | 32 | 27.1 | 2.2 | 0.4 | 3 | 26.70x1.78 | PTFE NBR |
| KL128-032/1 | 32 | 24.5 | 3.2 | 0.6 | 4.5 | 23.81x2.62 | PTFE NBR |
| KL128-035 | 35 | 30.1 | 2.2 | 0.4 | 3 | 29.87x1.78 | PTFE NBR |
| KL128-040 | 40 | 32.5 | 3.2 | 0.6 | 4.5 | 31.42x2.62 | PTFE NBR |
| KL128-040/1 | 40 | 29 | 4.2 | 0.8 | 5.5 | 28.17x3.53 | PTFE NBR |
| KL128-045 | 45 | 37.5 | 3.2 | 0.6 | 4.5 | 36.17x2.62 | PTFE NBR |
| KL128-050 | 50 | 42.5 | 3.2 | 0.6 | 4.5 | 42.52x2.62 | PTFE NBR |
| KL128-052 | 52 | 44.5 | 3.2 | 0.6 | 4.5 | 44.12x2.62 | PTFE NBR |
| KL128-055 | 55 | 47.5 | 3.2 | 0.6 | 4.5 | 47.29x2.62 | PTFE NBR |
| KL128-060 | 60 | 52.5 | 3.2 | 0.6 | 4.5 | 52.07x2.62 | PTFE NBR |
| KL128-063 | 63 | 55.5 | 3.2 | 0.6 | 4.5 | 53.65x2.62 | PTFE NBR |
| KL128-065 | 65 | 57.5 | 3.2 | 0.6 | 4.5 | 56.82x2.62 | PTFE NBR |
| KL128-070 | 70 | 62.5 | 3.2 | 0.6 | 4.5 | 61.60x2.62 | PTFE NBR |
| KL128-075 | 75 | 67.5 | 3.2 | 0.6 | 4.5 | 66.35x2.62 | PTFE NBR |
| KL128-080 | 80 | 69 | 4.2 | 0.8 | 5.5 | 68.26x3.53 | PTFE NBR |
| KL128-080/1 | 80 | 64.5 | 6.3 | 1.2 | 6 | 62.87x5.33 | PTFE NBR |
| KL128-085 | 85 | 74 | 4.2 | 0.8 | 5.5 | 73.03x3.53 | PTFE NBR |
| KL128-090 | 90 | 79 | 4.2 | 0.8 | 5.5 | 78.97x3.53 | PTFE NBR |
| KL128-095 | 95 | 84 | 4.2 | 0.8 | 5.5 | 82.14x3.53 | PTFE NBR |
| KL128-100 | 100 | 89 | 4.2 | 0.8 | 5.5 | 88.50x3.53 | PTFE NBR |
| KL128-105 | 105 | 94 | 4.2 | 0.8 | 5.5 | 91.67x3.53 | PTFE NBR |
| KL128-110 | 110 | 99 | 4.2 | 0.8 | 5.5 | 98.02x3.53 | PTFE NBR |
| KL128-115 | 115 | 104 | 4.2 | 0.8 | 5.5 | 101.20x3.53 | PTFE NBR |
| KL128-120 | 120 | 109 | 4.2 | 0.8 | 5.5 | 107.54x3.53 | PTFE NBR |
| KL128-125 | 125 | 114 | 4.2 | 0.8 | 5.5 | 113.90x3.53 | PTFE NBR |
| KL128-130 | 130 | 119 | 4.2 | 0.8 | 5.5 | 117.07x3.53 | PTFE NBR |
| KL128-135 | 135 | 119.5 | 6.3 | 1.2 | 6 | 117.48x5.33 | PTFE NBR |
| KL128-135/1 | 135 | 124 | 4.2 | 0.8 | 5.5 | 120.25x3.53 | PTFE NBR |
| KL128-140 | 140 | 124.5 | 6.3 | 1.2 | 6 | 123.80x5.33 | PTFE NBR |
| KL128-145 | 145 | 134 | 4.2 | 0.8 | 5.5 | 132.94x3.53 | PTFE NBR |
| KL128-150 | 150 | 134.5 | 6.3 | 1.2 | 6 | 133.35x5.33 | PTFE NBR |
| KL128-155 | 155 | 144 | 4.2 | 0.8 | 5.5 | 142.47x3.53 | PTFE NBR |
| KL128-160 | 160 | 144.5 | 6.3 | 1.2 | 6 | 142.24x5.33 | PTFE NBR |
| KL128-170 | 170 | 154.5 | 6.3 | 1.2 | 6 | 151.77x5.33 | PTFE NBR |
| KL128-175 | 175 | 159.5 | 6.3 | 1.2 | 6 | 155.00x5.33 | PTFE NBR |
| KL128-180 | 180 | 164.5 | 6.3 | 1.2 | 6 | 161.30x5.33 | PTFE NBR |
| KL128-190 | 190 | 174.5 | 6.3 | 1.2 | 6 | 170.82x5.33 | PTFE NBR |
| KL128-200 | 200 | 184.5 | 6.3 | 1.2 | 6 | 183.52x5.33 | PTFE NBR |
| KL128-210 | 210 | 194.5 | 6.3 | 1.2 | 6 | 189.87x5.33 | PTFE NBR |
| KL128-220 | 220 | 204.5 | 6.3 | 1.2 | 6 | 202.57x5.33 | PTFE NBR |
| KL128-230 | 230 | 214.5 | 6.3 | 1.2 | 6 | 208.92x5.33 | PTFE NBR |
| KL128-240 | 240 | 224.5 | 6.3 | 1.2 | 6 | 221.62x5.33 | PTFE NBR |
| KL128-250 | 250 | 234.5 | 6.3 | 1.2 | 6 | 234.32x5.33 | PTFE NBR |
| KL128-260 | 260 | 244.5 | 6.3 | 1.2 | 6 | 247.02x5.33 | PTFE NBR |
| KL128-280 | 280 | 264.5 | 6.3 | 1.2 | 6 | 266.07x5.33 | PTFE NBR |
| KL128-300 | 300 | 284.5 | 6.3 | 1.2 | 6 | 278.77x5.33 | PTFE NBR |
