Place of Origin:
CHINA
Brand Name:
KELONG
Model Number:
KL-110
Contact Us
KL127 - ROD SEAL High Wear Resistance Low Friction And Stick-Slip Free Good Dynamic And Static Sealing Long Service L

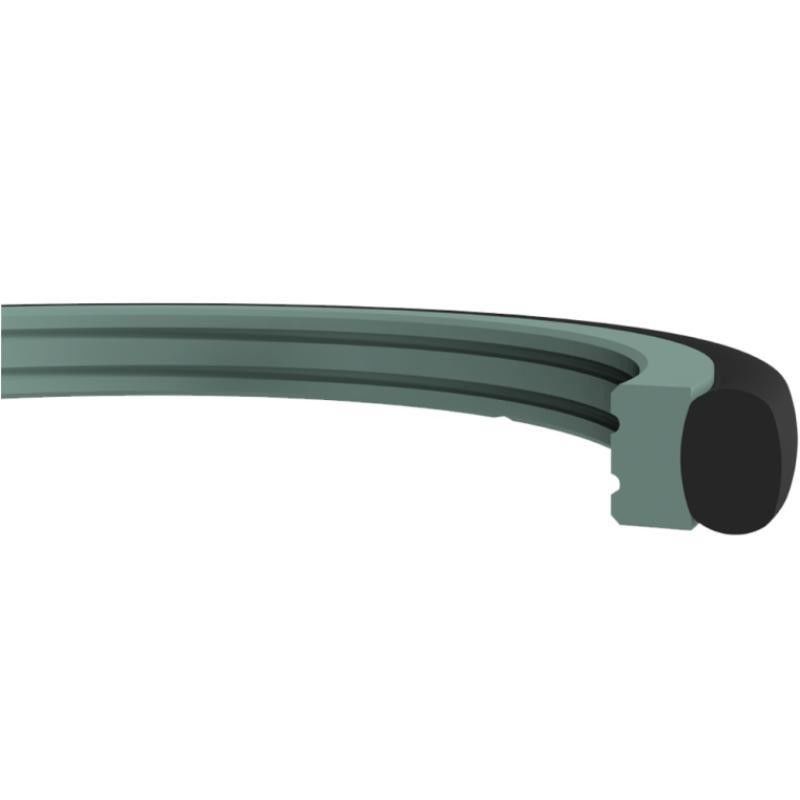

K702 is a double acting rotary sealing element consisting of a PTFE ring and an energizer elastomer o-ring. It provides high performance with its superior properties in rod type pressurized rotary sealing applications.

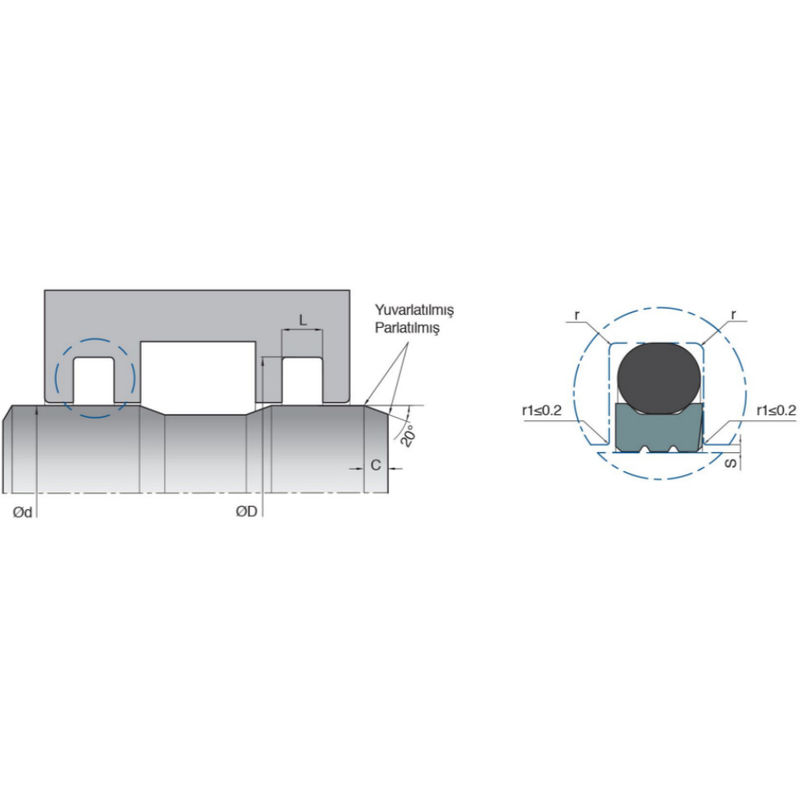

| d (f8) | D (H9) | L (+0.2/-0) | r | C | O-Ring | MATERIAL | |
| KL127-010 | 10 | 14.9 | 2.2 | 0.4 | 3 | 11.11x1.78 | PTFE NBR |
| KL127-012 | 12 | 16.9 | 2.2 | 0.4 | 3 | 12.42x1.78 | PTFE NBR |
| KL127-015 | 15 | 19.9 | 2.2 | 0.4 | 3 | 17.17x1.78 | PTFE NBR |
| KL127-016/1 | 16 | 20.9 | 2.2 | 0.4 | 3 | 17.17x1.78 | PTFE NBR |
| KL127-020 | 20 | 27.5 | 3.2 | 0.6 | 4.5 | 23.47x2.62 | PTFE NBR |
| KL127-020/1 | 20 | 24.9 | 2.2 | 0.4 | 3 | 21.95x1.78 | PTFE NBR |
| KL127-024 | 24 | 31.5 | 3.2 | 0.6 | 4.5 | 26.64x2.62 | PTFE NBR |
| KL127-025 | 25 | 32.5 | 3.2 | 0.6 | 4.5 | 28.25x2.62 | PTFE NBR |
| KL127-025/1 | 25.4 | 32.9 | 3.2 | 0.6 | 4.5 | 28.25x2.62 | PTFE NBR |
| KL127-028 | 28 | 35.5 | 3.2 | 0.6 | 4.5 | 31.42x2.62 | PTFE NBR |
| KL127-030 | 30 | 37.5 | 3.2 | 0.6 | 4.5 | 33.00x2.62 | PTFE NBR |
| KL127-032 | 32 | 39.5 | 3.2 | 0.6 | 4.5 | 34.59x2.62 | PTFE NBR |
| KL127-035 | 35 | 42.5 | 3.2 | 0.6 | 4.5 | 37.77x2.62 | PTFE NBR |
| KL127-036 | 36 | 43.5 | 3.2 | 0.6 | 4.5 | 39.34x2.62 | PTFE NBR |
| KL127-038/1 | 38 | 49 | 4.2 | 0.8 | 5.5 | 41.28x3.53 | PTFE NBR |
| KL127-040 | 40 | 51 | 4.2 | 0.8 | 5.5 | 44.45x3.53 | PTFE NBR |
| KL127-040/1 | 40 | 55.5 | 6.3 | 1.2 | 6 | 47.00x5.33 | PTFE NBR |
| KL127-045 | 45 | 56 | 4.2 | 0.8 | 5.5 | 49.21x3.53 | PTFE NBR |
| KL127-050 | 50 | 61 | 4.2 | 0.8 | 5.5 | 53.57x3.53 | PTFE NBR |
| KL127-052 | 52 | 67.5 | 6.3 | 1.2 | 6 | 56.52x5.33 | PTFE NBR |
| KL127-055 | 55 | 66 | 4.2 | 0.8 | 5.5 | 58.74x3.53 | PTFE NBR |
| KL127-056 | 56 | 67 | 4.2 | 0.8 | 5.5 | 60.33x3.53 | PTFE NBR |
| KL127-060 | 60 | 71 | 4.2 | 0.8 | 5.5 | 63.50x3.53 | PTFE NBR |
| KL127-060/1 | 60 | 75.5 | 6.3 | 1.2 | 6 | 66.04x5.33 | PTFE NBR |
| KL127-070 | 70 | 81 | 4.2 | 0.8 | 5.5 | 73.03x3.53 | PTFE NBR |
| KL127-075 | 75 | 86 | 4.2 | 0.8 | 5.5 | 78.97x3.53 | PTFE NBR |
| KL127-080 | 80 | 91 | 4.2 | 0.8 | 5.5 | 82.14x3.53 | PTFE NBR |
| KL127-080/1 | 80 | 95.5 | 6.3 | 1.2 | 6 | 85.09x5.33 | PTFE NBR |
| KL127-085 | 85 | 96 | 4.2 | 0.8 | 5.5 | 88.50x3.53 | PTFE NBR |
| KL127-085/1 | 85 | 100.5 | 6.3 | 1.2 | 6 | 89.69x5.33 | PTFE NBR |
| KL127-090 | 90 | 101 | 4.2 | 0.8 | 5.5 | 94.84x3.53 | PTFE NBR |
| KL127-095 | 95 | 106 | 4.2 | 0.8 | 5.5 | 98.02x3.53 | PTFE NBR |
| KL127-100 | 100 | 111 | 4.2 | 0.8 | 5.5 | 104.37x3.53 | PTFE NBR |
| KL127-100/1 | 100 | 115.5 | 6.3 | 1.2 | 6 | 104.14x5.33 | PTFE NBR |
| KL127-105 | 105 | 116 | 4.2 | 0.8 | 5.5 | 107.54x3.53 | PTFE NBR |
| KL127-110 | 110 | 121 | 4.2 | 0.8 | 5.5 | 113.90x3.53 | PTFE NBR |
| KL127-115 | 115 | 126 | 4.2 | 0.8 | 5.5 | 117.07x3.53 | PTFE NBR |
| KL127-120 | 120 | 131 | 4.2 | 0.8 | 5.5 | 123.40x3.53 | PTFE NBR |
| KL127-120/1 | 120 | 135.5 | 6.3 | 1.2 | 6 | 123.80x5.33 | PTFE NBR |
| KL127-125 | 125 | 136 | 4.2 | 0.8 | 5.5 | 126.60x3.53 | PTFE NBR |
| KL127-125/1 | 125 | 140.5 | 6.3 | 1.2 | 6 | 130.20x5.33 | PTFE NBR |
| KL127-130 | 130 | 141 | 4.2 | 0.8 | 5.5 | 132.94x3.53 | PTFE NBR |
