KL115 PU Static Sealing Elements Seal Backup Ring No Twisting In Housing

KL115 PU Static Sealing Elements Seal Backup Ring No Twisting In Housing

PU Static Sealing Elements

KL115 Static Sealing Elements

KELONG Seal Backup Ring

Place of Origin:

CHINA

Brand Name:

KELONG

Certification:

ISO9001 / IRIS

Model Number:

KL-115

Contact Us

Request A Quote
KL115 PU Static Sealing Elements Seal Backup Ring No Twisting In Housing
KL115 PU Static Sealing Elements Seal Backup Ring No Twisting In Housing KL115 PU Static Sealing Elements Seal Backup Ring No Twisting In Housing KL115 PU Static Sealing Elements Seal Backup Ring No Twisting In Housing KL115 PU Static Sealing Elements Seal Backup Ring No Twisting In Housing KL115 PU Static Sealing Elements Seal Backup Ring No Twisting In Housing KL115 PU Static Sealing Elements Seal Backup Ring No Twisting In Housing KL115 PU Static Sealing Elements Seal Backup Ring No Twisting In Housing
Product Details
Name:
Static Sealing Elements
Material:
PU
Pressure (max) Bar:
600
Temperature (max) °C:
-35/+110
Payment & Shipping Terms
Minimum Order Quantity:
100
Packaging Details:
Customizable packaging
Delivery Time:
15
Payment Terms:
L/C, T/T
Supply Ability:
100,000 pcs /months
RELATED PRODUCTS
Contact Us
86-29-33326567
cecilia@snkelong.com
Contact Now
Product Description

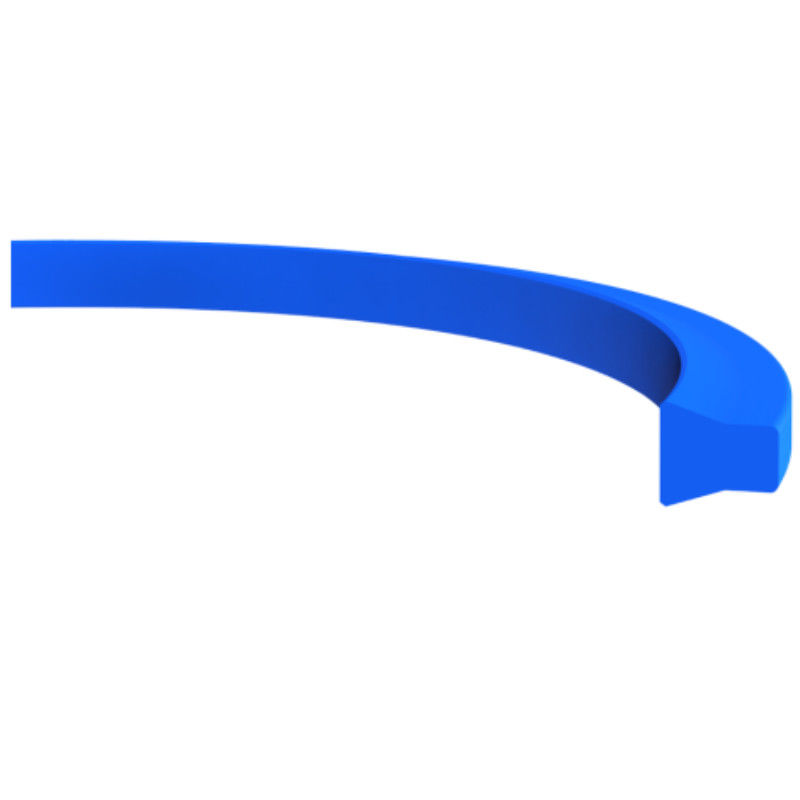

KL115 - STATIC SEAL Can Replace O-Rings Easy Installation Can Be Used At High Pressure No Twisting In The Housing



K82 statics seals are designed for SAE flanges and has high resistance due to TPU materials

Advantages

• Can replace O-rings
• Easy installation
• Can be used at high pressure
• No twisting in the housing

Area of Application

• SAE flanges
• Valve blocks
• Cover applications

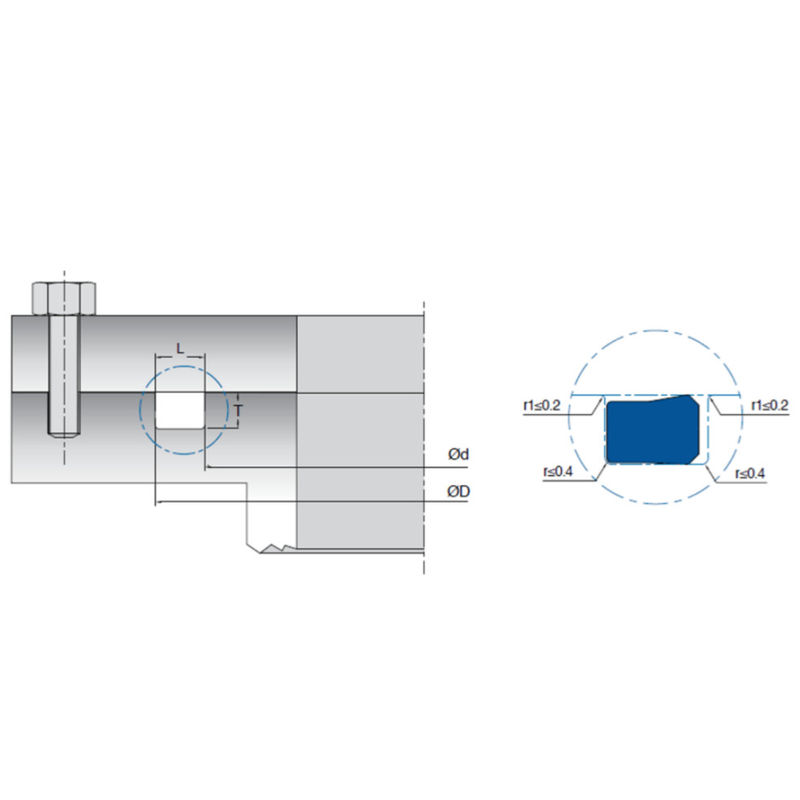

KL115 PU Static Sealing Elements Seal Backup Ring No Twisting In Housing 0
  d D (H10) T (±0.05) L (±0.1) MATERIAL
K82-017 17 25.4 2.85 4.2 PU
K82-023.40 23.4 31.8 2.85 4.2 PU
K82-031.30 31.3 39.7 2.85 4.2 PU
K82-036.10 36.1 44.5 2.85 4.2 PU
K82-045.40 45.4 53.8 2.85 4.2 PU
K82-055 55 63.4 2.85 4.2 PU
