Name: Kelong Hydraulic Rod Seals NBR / FABRIC NBR / POM Material With Multi Lip Structure
Brand: Kelong
SKU: KL02
Rating: 4.7 (147 reviews)

Home > products > Hydraulic Rod Seals >

Kelong Hydraulic Rod Seals NBR / FABRIC NBR / POM Material With Multi Lip Structure

Kelong Hydraulic Rod Seals

Hydraulic Rod Seals NBR

NBR Rod Seals Hydraulic

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL02

Request A Quote

Kelong Hydraulic Rod Seals NBR / FABRIC NBR / POM Material With Multi Lip Structure

Product Details

Style:

Hydraulic Rod Seals

Material:

NBR / FABRIC NBR / POM

Temperature (max) °C:

-30/+100

Pressure (max) Bar:

400

Sliding Speed (max)- M/s:

0.5

Application:

Iron And Steel Industry / Marine Hydraulics / Presses / Heavy Duty Cylinders / Mining Industry

Payment & Shipping Terms

Packaging Details:

Opp bag

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

Operating In Heavy Duty Conditions Single Acting Rod Sealing Set Rod Packing Multi Lip Structure

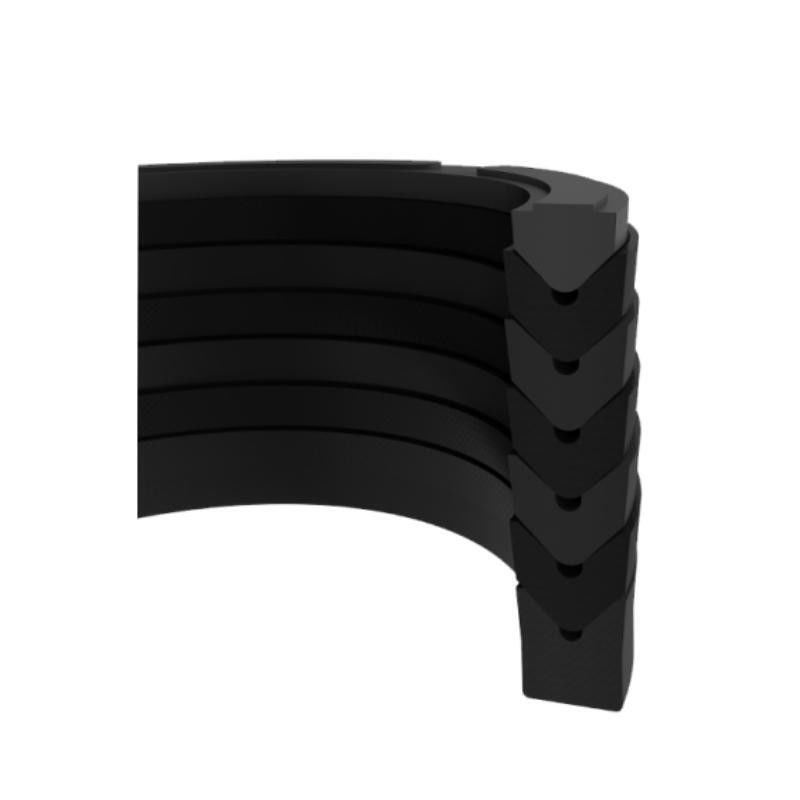

KL02 rod packing is a single acting rod sealing set which consists of one header ring, three pieces fabric elastomer rings, two pieces elastomer rings and one fabric elastomer back ring.

Advantages

• Operating in heavy duty conditions
• Functions even with poor surfaces by the multi lip structure
• Adjustable housing height due to the reason of being used in open grooves
• Quick installation and removal
• Long service life
• Very good sealing performance at both low and high pressures

Area of Application

• Iron and steel industry
• Marine hydraulics
• Presses
• Heavy duty cylinders
• Mining industry

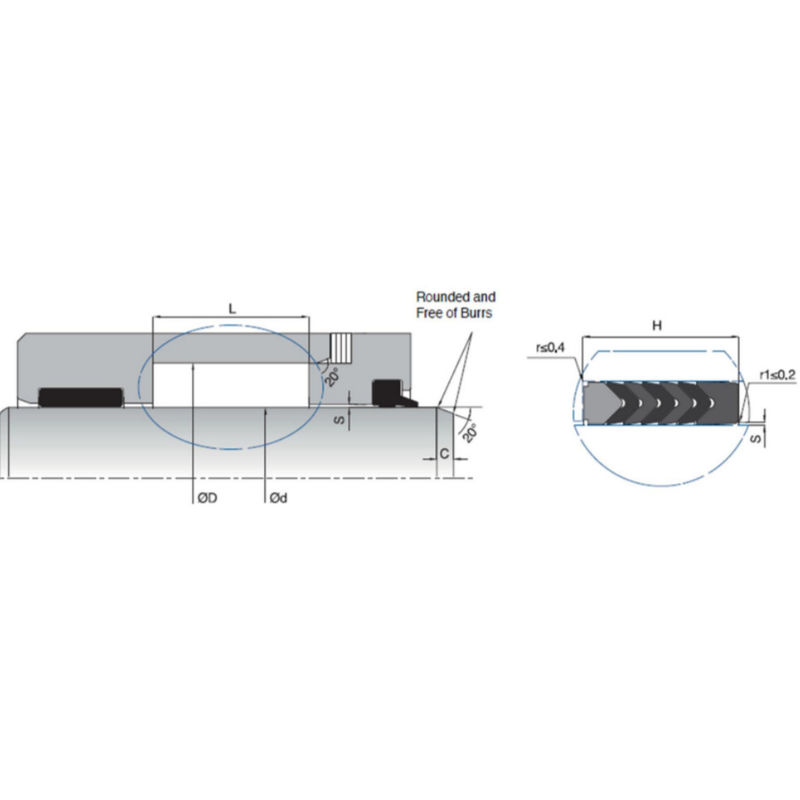

	d (f8)	D (H9)	L (+0.2/-0)	H	Cross Section	E	C	MATERIAL
KL02-008	8	18	18.5	18.5	5	2.5	3	FB
KL02-010	10	20	18.5	18.5	5	2.5	3	FB
KL02-012	12	22	18.5	18.5	5	2.5	3	FB
KL02-013	13.5	25	16.5	16.5	5.75	-	3	FB
KL02-014	14	24	18.5	18.5	5	2.5	3	FB
KL02-015	15	25	18.5	18.5	5	2.5	3	FB
KL02-015/1	15	32	25	25	8.5	-	3	FB
KL02-016	16	26	18.5	18.5	5	2.5	3	FB
KL02-018	18	28	18.5	18.5	5	2.5	3	FB
KL02-018/1	18	32	23.5	23.5	7	-	3	FB
KL02-020	20	30	18.5	18.5	5	2.5	3	FB
KL02-020/1	20	32	22.5	22.5	6	3	5	FB
KL02-022	22	32	18.5	18.5	5	2.5	3	FB
KL02-022/1	22	34	22.5	22.5	6	3	5	FB
KL02-025	25	37	22.5	22.5	6	3	5	FB
KL02-025/1	25	40	22.5	22.5	7.5	3	5	FB
KL02-028	28	40	22.5	22.5	6	3	5	FB
KL02-028/1	28	43	22.5	22.5	7.5	3	5	FB
KL02-030	30	42	22.5	22.5	6	3	5	FB
KL02-030/1	30	45	22.5	22.5	7.5	3	5	FB
KL02-030/2	30	50	37	37	10	-	5	FB
KL02-032	32	44	22.5	22.5	6	3	5	FB
KL02-032/1	32	47	22.5	22.5	7.5	3	5	FB
KL02-032/2	32	45	22.5	22.5	6.5	3	5	FB
KL02-035	35	47	22.5	22.5	6	3	5	FB
KL02-035/1	35	50	22.5	22.5	7.5	3	5	FB
KL02-036	36	48	22.5	22.5	6	3	5	FB
KL02-036/1	36	51	22.5	22.5	7.5	3	5	FB
KL02-040	40	52	22.5	22.5	6	3	5	FB
KL02-040/1	40	55	22.5	22.5	7.5	3	5	FB
KL02-040/2	40	55	25	25	7.5	-	5	FB
KL02-040/3	40	56	22.5	22.5	8	3	5	FB
KL02-042	42	54	22.5	22.5	6	3	5	FB
KL02-042/1	42	57	22.5	22.5	7.5	3	5	FB
KL02-045	45	60	22.5	22.5	7.5	3	5	FB
KL02-045/1	45	65	22.5	22.5	10	4	5	FB
KL02-045/2	45	55	22	22	5	-	5	FB
KL02-045/3	45	62	26	26	8.5	-	5	FB
KL02-047	47	65	33	33	9	-	5	FB
KL02-048	48	63	22.5	22.5	7.5	3	5	FB
KL02-050	50	65	22.5	22.5	7.5	3	5	FB
KL02-050/1	50	70	30	30	10	4	5	FB
KL02-055	55	70	22.5	22.5	7.5	3	5	FB
KL02-055/1	55	75	30	30	10	4	5	FB
KL02-055/2	55	67	24	24	6	3	5	FB
KL02-056	56	71	22.5	22.5	7.5	3	5	FB
KL02-056/1	56	76	37	37	10	5	5	FB
KL02-056/2	56	72	46	46	8	6	5	FB
KL02-060	60	75	22.5	22.5	7.5	3	5	FB
KL02-060/1	60	80	37	37	10	5	5	FB
KL02-060/3	60	85	37	37	12.5	5	7.5	FB
KL02-063	63	78	22.5	22.5	7.5	3	5	FB
KL02-063/1	63	83	37	37	10	5	5	FB
KL02-063/2	63.5	78	40	40	7.25	-	5	FB
KL02-065	65	80	22.5	22.5	7.5	3	5	FB
KL02-065/1	65	85	40	40	10	5	5	FB
KL02-070	70	85	22.5	22.5	7.5	3	5	FB
KL02-070/1	70	90	40	40	10	5	5	FB
KL02-075	75	90	22.5	22.5	7.5	3	5	FB
KL02-075/1	75	95	40	40	10	5	5	FB
KL02-075/2	75	87	25	25	6	3	5	FB
KL02-075/3	75	100	34	34	12.5	4	7.5	FB
KL02-078	78	100	35	35	11	-	7.5	FB
KL02-080	80	95	22.5	22.5	7.5	3	5	FB
KL02-080/1	80	100	40	40	10	5	5	FB
KL02-085	85	100	22.5	22.5	7.5	3	5	FB
