Name: Single Acting U Cup Piston Seal / Polyurethane Hydraulic Seals For Light Duty Cylinders
Brand: Kelong
SKU: KL20
Rating: 4.7 (117 reviews)

Home > products > Piston Rod Seals >

Single Acting U Cup Piston Seal / Polyurethane Hydraulic Seals For Light Duty Cylinders

Single Acting U Cup Piston Seal

U Cup Piston Seal Hydraulic

ISO9001 Polyurethane Hydraulic Seals

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL20

Request A Quote

Single Acting U Cup Piston Seal / Polyurethane Hydraulic Seals For Light Duty Cylinders

Product Details

Style:

U Cup Piston Seal

Temperature (max) °C-1:

-40/+100

Temperature (max) °C-2:

-30/+105

Material:

PU / NBR

Pressure (max) Bar:

400/150

Sliding Speed (max)- M/s:

0.5

Payment & Shipping Terms

Packaging Details:

Opp bag

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

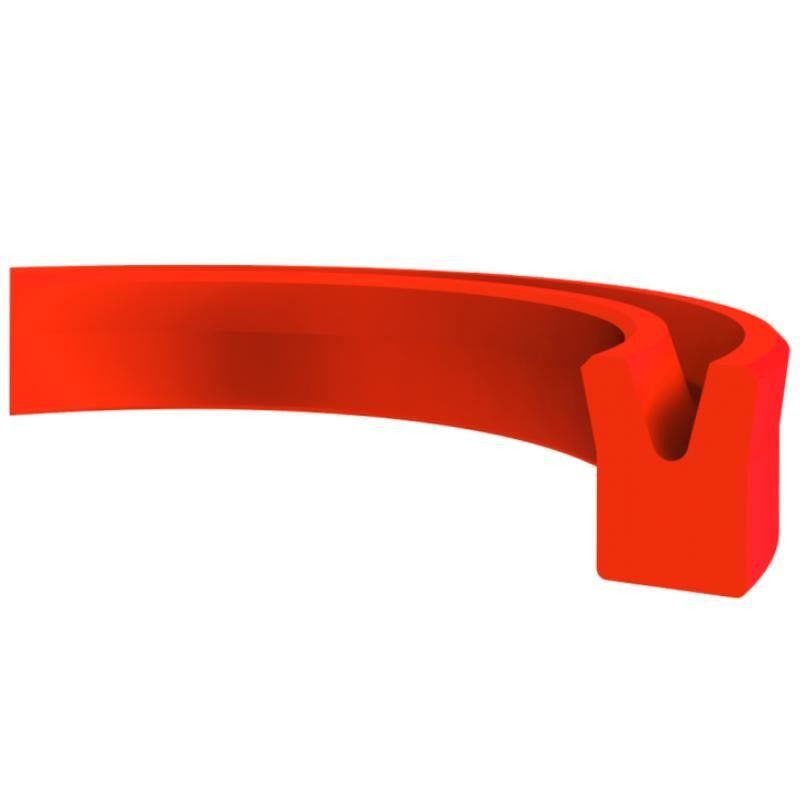

Single Acting Symmetrical U-Cup Be Produced From Polyurethane Material For Use In Light Duty Cylinders.

KL20 is an innovative rod seal developed for challenging high temperature applications that require both extrusion resistance and low leakage.

Advantages

• Wide range of dimensions
• Economical sealing solution
• Good dynamic and static sealing
• Good locking feature

Area of Application

• Standard industrial cylinders
• Agricultural cylinders

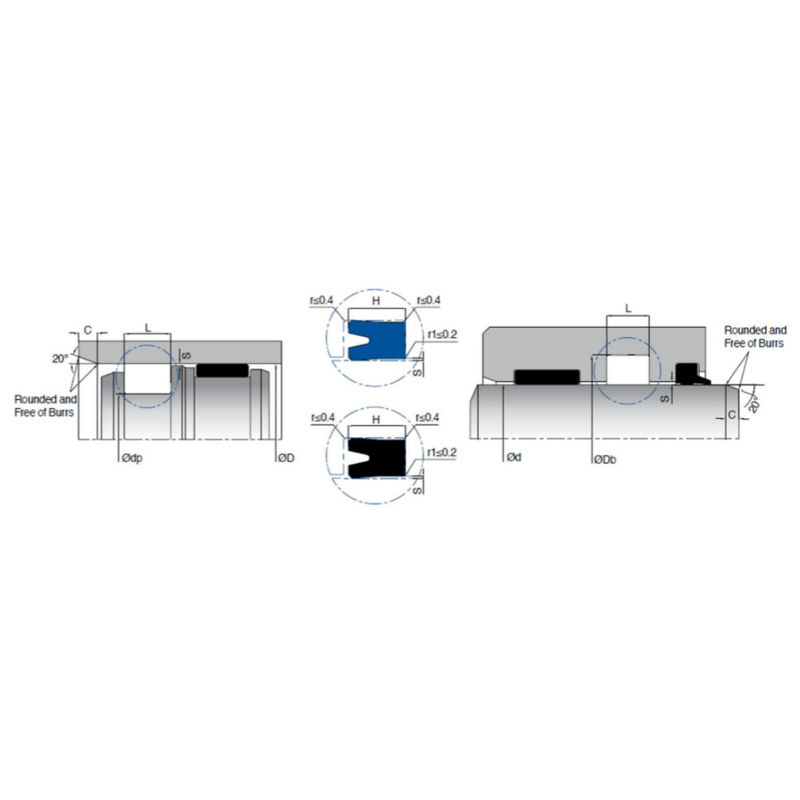

	d(f7) dp(h11)	Db(H10) D(H10)	L (+0.2/-0)	H	C	MATERIAL
K20-003/5	3	8	5	4.5	3	NB
K20-004	4	10	6	5	3.5	NB
K20-004/2	4	12	4.5	4	4.5	NB
K20-004/3	4	10	4.5	4	3.5	NB
K20-004/3 PU	4	10	4.5	4	3.5	PU
K20-004/4	4	7.5	3.5	3	2.5	NB
K20-004/6	4	10	7	6	3.5	NB
K20-004/6 PU	4	10	7	6	3.5	PU
K20-005/2	5	11	6	5	3.5	NB
K20-005/2 PU	5	11	6	5	3.5	PU
K20-005/4	5	10	6	5	3	NB
K20-005/4 PU	5	10	6	5	3	PU
K20-005/5	5	9	2.9	2.4	2.5	NB
K20-005/6	5	12	6	5	4	NB
K20-005/6 PU	5	12	6	5	4	PU
K20-005/8	5	12	4.5	4	4	NB
K20-006	6	9	2.5	2	2	NB
K20-006/1	6	12	7	6	3.5	NB
K20-006/1 PU	6	12	7	6	3.5	PU
K20-006/2	6	12	8	7	3.5	NB
K20-006/2 PU	6	12	8	7	3.5	PU
K20-006/3	6	10	3.5	3	2.5	NB
K20-006/3 PU	6	10	3.5	3	2.5	PU
K20-006/6	6	12	4.5	4	3.5	NB
K20-006/6 PU	6	12	4.5	4	3.5	PU
K20-006/9	6	13	6.5	5.5	4	NB
K20-006/9 PU	6	13	6.5	5.5	4	PU
K20-006/12	6	14	4.5	4	4	NB
K20-006/12 PU	6	14	4.5	4	4	PU
K20-006/14	6	12	6	5	3.5	NB
K20-007/5	7	12	4.5	4	3	NB
K20-008	8	18	9	8	5.5	NB
K20-008 PU	8	18	9	8	5.5	PU
K20-008/1	8	14	7	6	3.5	NB
K20-008/1 PU	8	14	7	6	3.5	PU
K20-008/2	8	16	7	6	4.5	NB
K20-008/2 PU	8	16	7	6	4.5	PU
K20-008/3	8	16	9	8	4.5	NB
K20-008/3 PU	8	16	9	8	4.5	PU
K20-008/5	8	14	4.5	4	3.5	NB
K20-008/5 PU	8	14	4.5	4	3.5	PU
K20-008/8	8	12	6	5	2.5	NB
K20-008/10	8	15	7	6	4	NB
K20-008/16	8	12	4.5	4	2.5	NB
K20-008/16 PU	8	12	4.5	4	2.5	PU
K20-009/1	9	19	7	6	5.5	NB
K20-009/1 PU	9	19	7	6	5.5	PU
K20-009/2	9	16	4.5	4	4	NB
K20-009/2 PU	9	16	4.5	4	4	PU
