Place of Origin:
China
Brand Name:
Kelong
Certification:
ISO9001 / IRIS
Model Number:
KL02
Contact Us

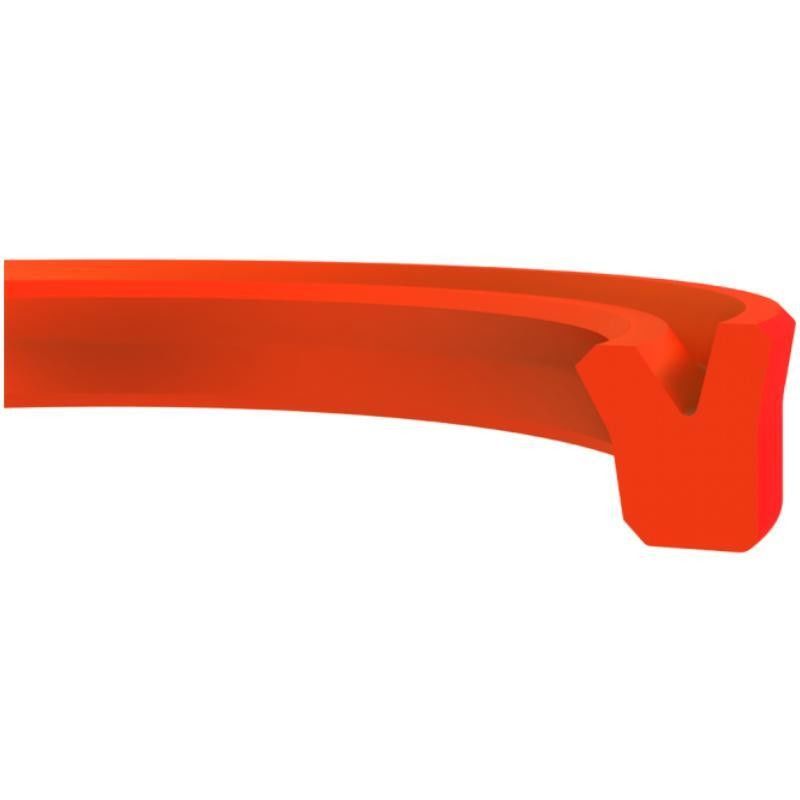

KL19 is an innovative rod seal developed for challenging high temperature applications that require both extrusion resistance and low leakage.
The rod seal is designed to ensure that pressurized fluid does not leak out of the system as the rod cycles back and forth (dynamic pressure sealing). The rod seal is the most critical seal on any type of fluid power equipment. A leaking rod seal not only reduces equipment performance, but also causes environmental issues.
• Superior static and dynamic sealing effect
• High abrasion resistance
• Insensibility against shock loads and pressure peaks
• Low compression set
• Long service life
• Thin oil film
• High extrusion resistance
Area of Application
• Construction machinery
• Loading platforms
• Injection moulding machines
• Forklifts
• Mobile machinery
• Agricultural machinery

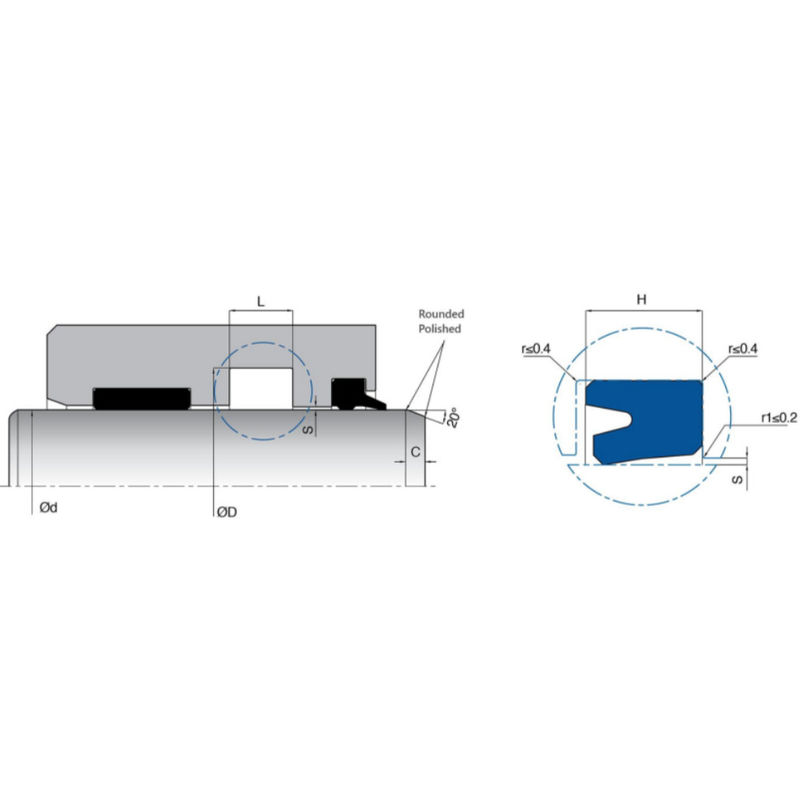

| d (f8) | D (H10) | L (+0.2/-0) | H | C | MATERIAL | |
| KL19-018 | 18 | 24 | 5.2 | 4.7 | 4 | PU |
| KL19-020 | 20 | 28 | 6.3 | 5.7 | 4 | PU |
| KL19-020/1 | 20 | 30 | 7 | 6.3 | 5 | PU |
| KL19-020/2 | 20 | 30 | 9 | 8 | 5 | PU |
| KL19-022 | 22 | 30 | 6.3 | 5.7 | 4 | PU |
| KL19-025 | 25 | 33 | 6.3 | 5.7 | 4 | PU |
| KL19-025/1 | 25 | 35 | 9 | 8 | 5 | PU |
| KL19-025/2 | 25 | 33 | 5.6 | 5 | 4 | PU |
| KL19-028 | 28 | 36 | 6.3 | 5.7 | 4 | PU |
| KL19-028/1 | 28 | 38 | 9 | 8 | 5 | PU |
| KL19-030 | 30 | 38 | 6.3 | 5.7 | 4 | PU |
| KL19-030/1 | 30 | 40 | 9 | 8 | 5 | PU |
| KL19-030/2 | 30 | 45 | 11 | 10 | 5.5 | PU |
| KL19-030/3 | 30 | 40 | 6.7 | 6 | 4.5 | PU |
| KL19-032 | 32 | 40 | 6.3 | 5.7 | 4 | PU |
| KL19-032/1 | 32 | 47 | 11 | 10 | 5.5 | PU |
| KL19-035 | 35 | 43 | 6.3 | 5.7 | 4 | PU |
| KL19-035/1 | 35 | 45 | 9 | 8 | 5 | PU |
| KL19-035/2 | 35 | 50 | 11 | 10 | 5.5 | PU |
| KL19-035/3 | 35 | 45 | 6.7 | 6 | 4.5 | PU |
| KL19-036 | 36 | 44 | 6.3 | 5.7 | 4.5 | PU |
| KL19-040 | 40 | 50 | 9 | 8 | 5 | PU |
| KL19-040/1 | 40 | 48 | 6.3 | 5.7 | 4 | PU |
| KL19-040/2 | 40 | 48 | 9 | 8 | 4 | PU |
| KL19-040/3 | 40 | 50 | 8 | 7.3 | 5 | PU |
| KL19-040/4 | 40 | 50 | 10 | 9 | 5 | PU |
| KL19-040/5 | 40 | 50 | 11 | 10 | 5 | PU |
| KL19-040/6 | 40 | 55 | 11 | 10 | 5.5 | PU |
| KL19-040/7 | 40 | 50 | 6.7 | 6 | 4.5 | PU |
| KL19-045 | 45 | 53 | 9 | 8 | 4.5 | PU |
| KL19-045/1 | 45 | 55 | 9 | 8 | 5 | PU |
| KL19-045/2 | 45 | 60 | 11 | 10 | 5.5 | PU |
| KL19-045/3 | 45 | 55 | 6.7 | 6 | 4.5 | PU |
| KL19-045/4 | 45 | 53 | 6.3 | 5.7 | 4.5 | PU |
| KL19-050 | 50 | 60 | 8 | 7.3 | 4.5 | PU |
| KL19-050/1 | 50 | 65 | 11 | 10 | 5.5 | PU |
| KL19-050/2 | 50 | 58 | 9 | 8 | 4 | PU |
| KL19-050/3 | 50 | 60 | 9 | 8 | 4.5 | PU |
| KL19-050/4 | 50 | 60 | 11 | 10 | 4.5 | PU |
| KL19-050/5 | 50 | 65 | 12 | 11 | 5.5 | PU |
| KL19-050/6 | 50 | 60 | 6.7 | 6 | 4.5 | PU |
| KL19-055 | 55 | 65 | 8 | 7.3 | 5 | PU |
| KL19-055/1 | 55 | 65 | 9 | 8 | 5 | PU |
| KL19-055/2 | 55 | 70 | 11 | 10 | 5.5 | PU |
| KL19-055/3 | 55 | 65 | 6.7 | 6 | 4.5 | PU |
| KL19-055/4 | 55 | 75 | 13 | 12 | 5 | PU |
| KL19-056 | 56 | 66 | 9 | 8 | 5 | PU |
| KL19-056/1 | 56 | 66 | 11 | 10 | 5 | PU |
| KL19-056/2 | 56 | 71 | 11 | 10 | 5.5 | PU |
| KL19-060 | 60 | 68 | 9 | 8 | 4.5 | PU |
| KL19-060/1 | 60 | 70 | 8 | 7.3 | 5 | PU |
| KL19-060/2 | 60 | 70 | 9 | 8 | 5 | PU |
| KL19-060/3 | 60 | 75 | 11 | 10 | 5.5 | PU |
| KL19-060/4 | 60 | 70 | 6.7 | 6 | 5 | PU |
| KL19-060/5 | 60 | 80 | 13 | 12 | 5.5 | PU |
| KL19-063 | 63 | 78 | 11 | 10 | 5.5 | PU |
| KL19-065 | 65 | 75 | 9 | 8 | 5 | PU |
| KL19-065/1 | 65 | 80 | 13 | 12 | 5.5 | PU |
| KL19-065/2 | 65 | 75 | 6.7 | 6 | 5 | PU |
| KL19-065/3 | 65 | 85 | 13 | 12 | 6 | PU |
| KL19-070 | 70 | 80 | 9 | 8 | 5 | PU |
| KL19-070/1 | 70 | 82 | 9.6 | 8.6 | 6 | PU |
| KL19-070/2 | 70 | 90 | 13 | 12 | 6 | PU |
| KL19-070/3 | 70 | 80 | 6.7 | 6 | 5 | PU |
| KL19-075 | 75 | 90 | 11 | 10 | 5.5 | PU |
| KL19-075/1 | 75 | 85 | 6.7 | 6 | 4.5 | PU |
| KL19-080 | 80 | 90 | 11 | 10 | 4.5 | PU |
| KL19-080/1 | 80 | 95 | 12.5 | 11.5 | 5.5 | PU |
| KL19-080/2 | 80 | 100 | 13 | 12 | 6 | PU |
| KL19-080/3 | 80 | 90 | 8 | 7.3 | 4.5 | PU |
| KL19-080/4 | 80 | 90 | 6.7 | 6 | 4.5 | PU |
| KL19-085 | 85 | 100 | 10 | 9 | 5.5 | PU |
| KL19-085/1 | 85 | 95 | 9.6 | 8.6 | 4.5 | PU |
| KL19-085/2 | 85 | 105 | 13 | 12 | 6 | PU |
| KL19-085/3 | 85 | 100 | 11 | 10 | 5.5 | PU |
| KL19-085/4 | 85 | 97 | 9.7 | 8.7 | 5 | PU |
| KL19-090 | 90 | 105 | 11 | 10 | 5.5 | PU |
| KL19-090/1 | 90 | 110 | 13 | 12 | 6 | PU |
| KL19-090/2 | 90 | 105 | 10 | 9 | 5.5 | PU |
| KL19-095 | 95 | 110 | 10 | 9 | 5.5 | PU |
| KL19-095/1 | 95 | 110 | 11 | 10 | 5.5 | PU |
| KL19-100 | 100 | 115 | 10 | 9 | 5.5 | PU |
| KL19-100/1 | 100 | 115 | 11 | 10 | 5.5 | PU |
| KL19-100/2 | 100 | 115 | 13 | 12 | 5.5 | PU |
| KL19-100/3 | 100 | 120 | 13 | 12 | 6 | PU |
| KL19-105 | 105 | 120 | 10 | 9 | 5.5 | PU |
| KL19-105/1 | 105 | 120 | 11 | 10 | 5.5 | PU |
| KL19-110 | 110 | 125 | 10 | 9 | 5.5 | PU |
| KL19-110/1 | 110 | 130 | 16 | 14.5 | 6 | PU |
| KL19-110/2 | 110 | 125 | 11 | 10 | 5.5 | PU |
| KL19-115 | 115 | 130 | 10 | 9 | 5.5 | PU |
| KL19-115/1 | 115 | 130 | 11 | 10 | 5.5 | PU |
| KL19-120 | 120 | 140 | 16 | 14.5 | 6 | PU |
| KL19-125 | 125 | 140 | 10 | 9 | 5.5 | PU |
| KL19-130 | 130 | 145 | 11 | 10 | 5.5 | PU |
| KL19-130/1 | 130 | 150 | 13 | 12 | 6 | PU |
| KL19-140 | 140 | 155 | 10 | 9 | 5.5 | PU |
| KL19-140/1 | 140 | 160 | 13 | 12 | 6 | PU |
| KL19-145 | 145 | 160 | 11 | 10 | 5.5 | PU |
| KL19-150 | 150 | 170 | 16 | 14.5 | 6 | PU |
| KL19-150/1 | 150 | 170 | 13 | 12 | 6 | PU |
| KL19-150/2 | 150 | 165 | 11 | 10 | 5.5 | PU |
| KL19-160 | 160 | 180 | 16 | 14.5 | 6 | PU |
| KL19-160/1 | 160 | 180 | 13 | 12 | 6 | PU |
| KL19-170 | 170 | 190 | 16 | 14.5 | 6 | PU |
| KL19-180 | 180 | 200 | 13 | 12 | 6 | PU |
| KL19-180/1 | 180 | 200 | 16 | 14.5 | 6 | PU |
| KL19-190 | 190 | 210 | 16 | 14.5 | 6 | PU |
| KL19-200 | 200 | 220 | 16 | 14.5 | 6 | PU |
| KL19-220 | 220 | 240 | 16 | 14.5 | 6 | PU |
| KL19-220/1 | 220 | 240 | 13 | 12 | 6 | PU |
| KL19-240 | 240 | 260 | 16 | 14.5 | 6 | PU |
| KL19-250 | 250 | 270 | 16 | 14.5 | 6 | PU |
