Place of Origin:
SHAANXI
Brand Name:
KELONG
Model Number:
KL108
Contact Us

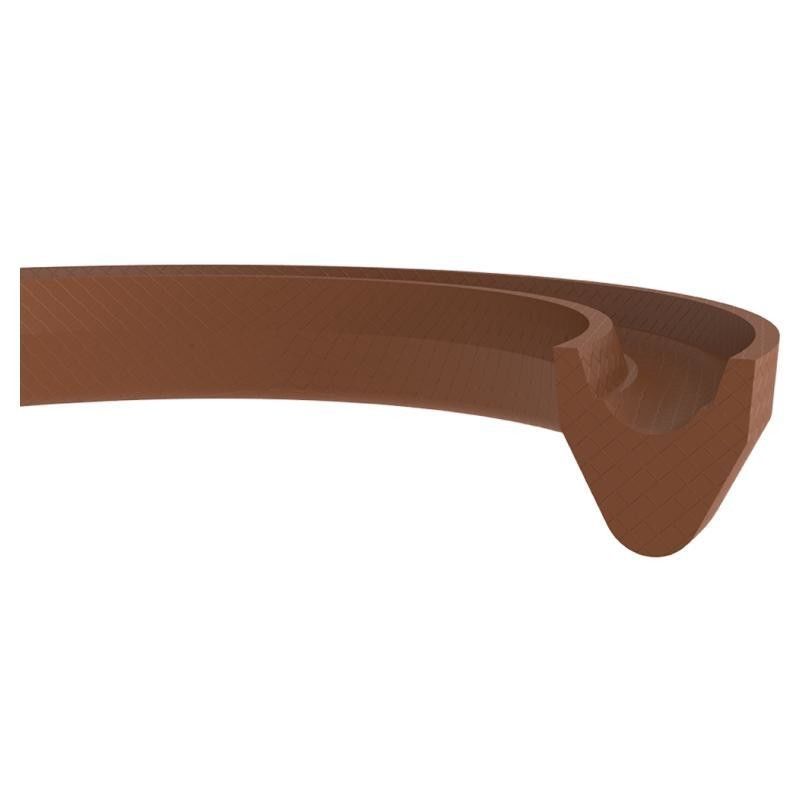

KL108 Chevron rings are single acting rod seals made by water resistant fabric impregnated elastomer, specially designed for water and wateroil mixture. They are high pressure pump seals working at high pressure washers.
The rod seal is designed to ensure that pressurized fluid does not leak out of the system as the rod cycles back and forth (dynamic pressure sealing). The rod seal is the most critical seal on any type of fluid power equipment. A leaking rod seal not only reduces equipment performance, but also causes environmental issues.
Advantages

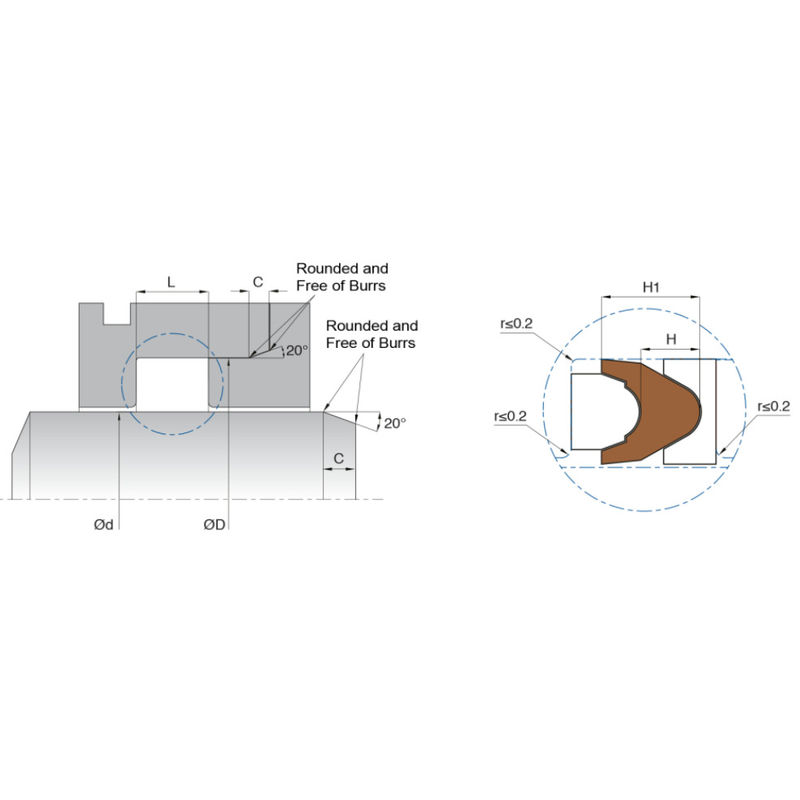

| d (f7) | D (H9) | H | H1 | C | MATERIAL | |
| KL108-024 | 15 | 24 | 3 | 5 | 6 | FABRIC NBR |
| KL108-025 | 15 | 25 | 3 | 5 | 6 | FABRIC NBR |
| KL108-026 | 18 | 26 | 3 | 5 | 6 | FABRIC NBR |
| KL108-028 | 15 | 28 | 4 | 6.5 | 7 | FABRIC NBR |
| KL108-028/1 | 18 | 28 | 3.5 | 5.5 | 6 | FABRIC NBR |
| KL108028/2 | 18 | 28 | 4 | 6 | 6 | FABRIC NBR |
| KL108-030 | 15 | 30 | 4.5 | 7.5 | 8 | FABRIC NBR |
| KL108-030/1 | 16 | 30 | 4 | 7 | 8 | FABRIC NBR |
| KL108-030/2 | 18 | 30 | 3.5 | 6 | 7 | FABRIC NBR |
| KL108-030/3 | 20 | 30 | 3.3 | 5.5 | 6 | FABRIC NBR |
| KL108-032 | 18 | 32 | 4.6 | 7.1 | 8 | FABRIC NBR |
| KL108-032/1 | 20 | 32 | 4.5 | 6.7 | 7 | FABRIC NBR |
| KL108-032/2 | 22 | 32 | 3.3 | 5.7 | 6 | FABRIC NBR |
| KL108-034 | 18 | 34 | 4 | 6 | 8 | FABRIC NBR |
| KL108-034/1 | 20 | 34 | 4.5 | 7.5 | 8 | FABRIC NBR |
| KL108-035 | 20 | 35 | 4.5 | 7.5 | 8 | FABRIC NBR |
| KL108-035/1 | 22 | 35 | 4.5 | 7 | 7 | FABRIC NBR |
| KL108-035/2 | 24 | 35 | 4 | 6 | 7 | FABRIC NBR |
| KL108-035/3 | 25 | 35 | 3.3 | 5.5 | 6 | FABRIC NBR |
| KL108-037 | 25 | 37 | 3.6 | 6.7 | 7 | FABRIC NBR |
| KL108-037/1 | 20 | 37 | 4.5 | 7.5 | 9 | FABRIC NBR |
| KL108-038 | 22 | 38 | 3.5 | 8.5 | 8 | FABRIC NBR |
| KL108-038/1 | 25 | 38 | 4.6 | 7 | 7 | FABRIC NBR |
| KL108-038/2 | 28 | 38 | 4.1 | 6.1 | 6 | FABRIC NBR |
| KL108-045 | 30 | 45 | 4.5 | 7.5 | 8 | FABRIC NBR |
| KL108-048 | 36 | 48 | 3.5 | 6 | 7 | FABRIC NBR |
| KL108-048/1 | 38 | 48 | 3.5 | 6 | 6 | FABRIC NBR |
| KL108-050/1 | 40 | 50 | 3.5 | 6 | 6 | FABRIC NBR |
| KL108-055 | 40 | 55 | 4.5 | 7.5 | 8 | FABRIC NBR |
| KL108-056 | 36 | 56 | 6 | 10 | 9 | FABRIC NBR |
| KL108-060 | 45 | 60 | 4.5 | 7.5 | 8 | FABRIC NBR |
| KL108-060/1 | 50 | 60 | 3.5 | 5.5 | 6 | FABRIC NBR |
| KL108-065 | 50 | 65 | 4.5 | 7.5 | 8 | FABRIC NBR |
| KL108-065/1 | 55 | 65 | 3.5 | 5.5 | 6 | FABRIC NBR |
| KL108-070 | 55 | 70 | 4.5 | 7.5 | 8 | FABRIC NBR |
| KL108-076 | 60 | 76 | 5 | 8 | 8 | FABRIC NBR |
| KL108-080 | 65 | 80 | 4.5 | 7.5 | 8 | FABRIC NBR |
