Place of Origin:
China
Brand Name:
Kelong
Certification:
ISO9001 / IRIS
Model Number:
SAE 100 R3 R6
Contact Us

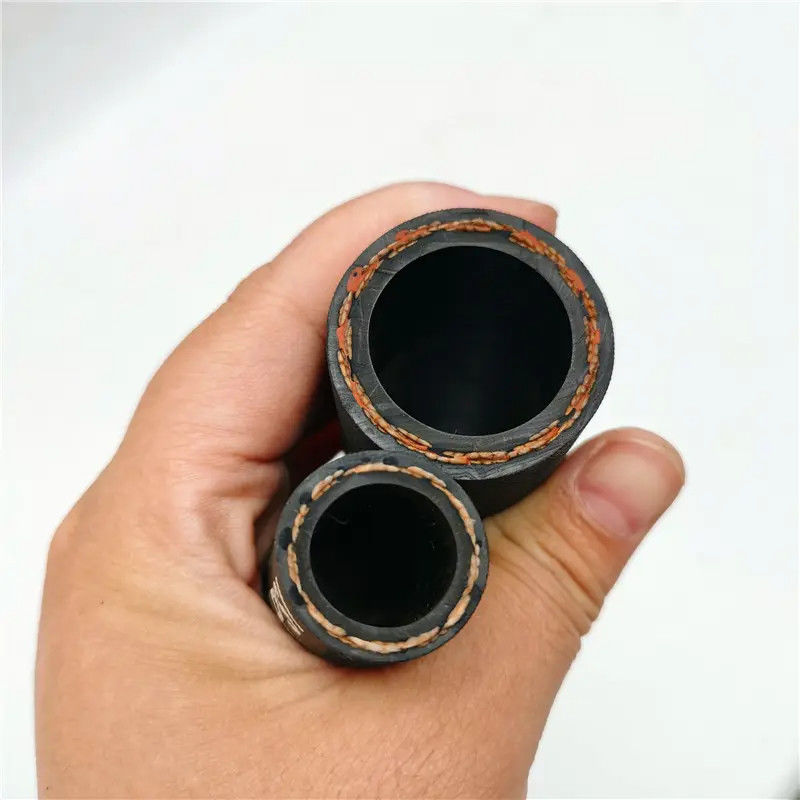

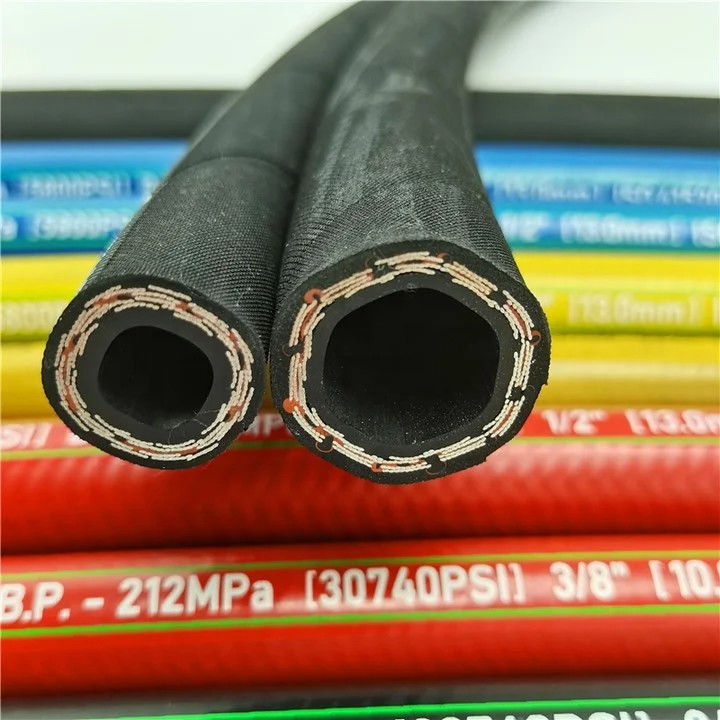

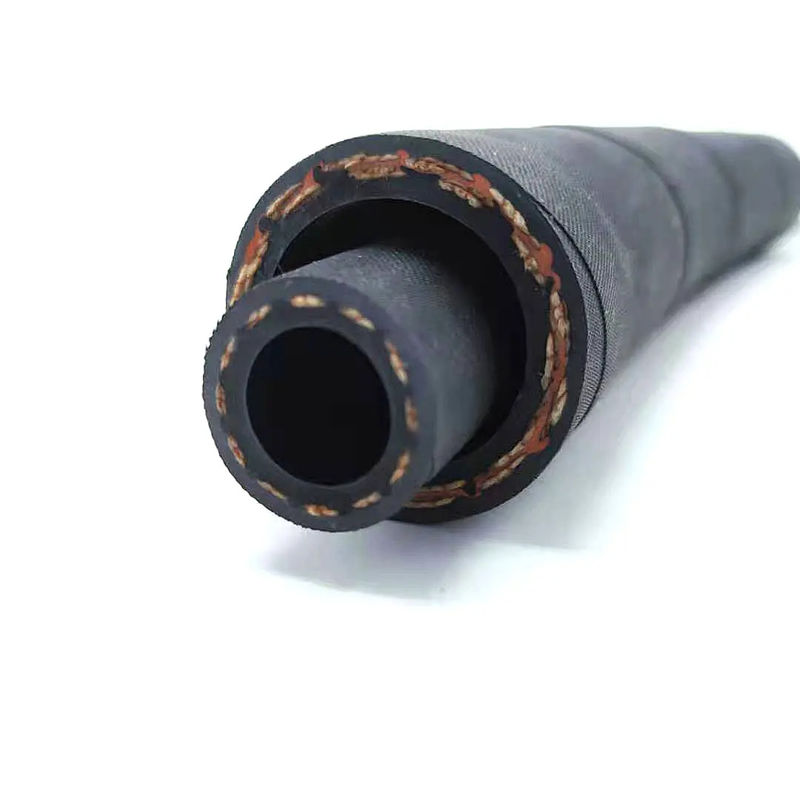

R3 R6 flexible rubber hose hydraulic rubber hose
SAE 100 R3 / EN 854 R3 HYDRAULIC HOSE
Inner Tube:oil resistant synthetic rubber
Reinforcement:double high tensile fibre braids
Cover :abrasion and weather resistant synthetic rubber
Temperature Range:-40°C to +120°C
| Hose ID | Hose OD | Working Pressure |
Burst pressure | Minimum Bend Radius |
Weight | |||
| inch | mm | mm | MPA | PSI | MPA | PSI | mm | kg/m |
| 3/16 | 4.8 | 12.7 | 10.5 | 1520 | 42.0 | 6500 | 75 | 0.16 |
| 1/4 | 6.4 | 14.3 | 8.7 | 1350 | 34.8 | 5300 | 75 | 0.19 |
| 5/16 | 7.9 | 17.5 | 8.4 | 1300 | 33.6 | 5200 | 100 | 0.26 |
| 3/8 | 9.5 | 19.0 | 7.8 | 1200 | 31.2 | 4840 | 100 | 0.28 |
| 1/2 | 12.7 | 23.8 | 7.0 | 1080 | 28.0 | 4340 | 125 | 0.40 |
| 5/8 | 15.9 | 27.0 | 6.1 | 945 | 24.4 | 3780 | 140 | 0.55 |
| 3/4 | 19.0 | 31.8 | 5.2 | 800 | 20.8 | 3220 | 150 | 0.69 |
| 1 | 25.4 | 38.0 | 3.9 | 600 | 15.5 | 2420 | 205 | 0.82 |
| 1-1/2 | 31.8 | 44.4 | 2.6 | 400 | 10.4 | 1610 | 250 | 1.00 |

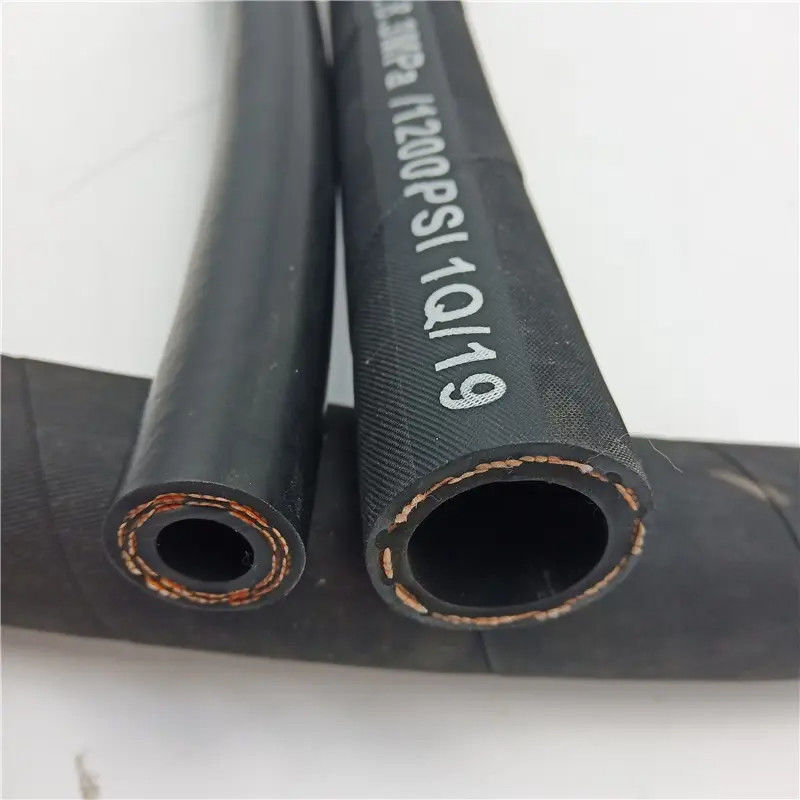

SAE 100 R6 / EN 854 R6 HYDRAULIC HOSE
Inner Tube:oil resistant synthetic rubber
Reinforcement:one high tensile fibre braid
Cover :abrasion and weather resistant synthetic rubber
Temperature Range:-40°C to +120°C
| Hose ID | Hose OD |
W.P | B.P | Min Bend Radius |
Weight | |||
| Inch | mm | mm | Mpa | Psi | Mpa | Psi | mm | kg/m |
| 3/16 | 4.8 | 11.1 | 3.4 | 500 | 13.8 | 2000 | 50 | 0.11 |
| 1/4 | 6.4 | 12.7 | 2.8 | 400 | 11.0 | 1600 | 65 | 0.15 |
| 5/16 | 7.9 | 14.3 | 2.8 | 400 | 11.0 | 1600 | 75 | 0.16 |
| 3/8 | 9.5 | 15.9 | 2.8 | 400 | 11.0 | 1600 | 75 | 0.18 |
| 1/2 | 12.7 | 19.8 | 2.8 | 400 | 11.0 | 1600 | 100 | 0.26 |
| 5/8 | 15.9 | 23 | 2.4 | 350 | 9.7 | 1400 | 125 | 0.29 |
| 3/4 | 19.0 | 26.6 | 2.1 | 300 | 8.3 | 1200 | 150 | 0.4 |
