Place of Origin:
China
Brand Name:
Kelong
Certification:
ISO9001 / IRIS
Model Number:
SAE 100 R2 AT
Contact Us

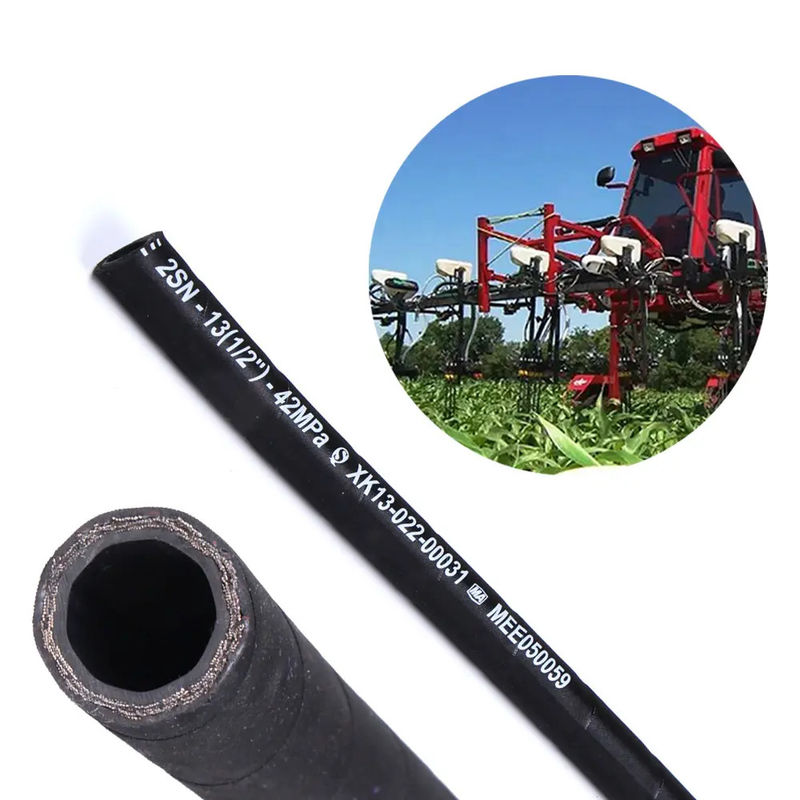

1/4" Hydraulic Hose 100R2AT
Applications:
Hydraulic Hose 100R2AT are particularly suitable for the following areas of applications:
* Heavy equipment and earth-moving machinery
* Mining and drilling
* Agricultural machines and equipment
* Working platforms, cranes and lifting
* Marine and off-shore
* Naval Construction
* Machine tool industry, automatic machines and industrial plants
* Wood machinery, marble and sheet metal machining
|
Specification |
||||||||
|
Hose size nominal |
Outside diameter |
Working pressure |
Breaking |
Min.ben |
||||
|
A(2ST) |
AT(2SN) |
type: |
type: |
type: |
type: |
|||
|
MIN |
MAX |
MAX |
||||||
|
3/16 |
15.1 |
16.7 |
14.1 |
35 |
41.5 |
140 |
165 |
90 |
|
1/4 |
16.7 |
18.3 |
15.7 |
35 |
40 |
140 |
160 |
100 |
|
5/16 |
18.3 |
19.8 |
17.3 |
29.7 |
35 |
118.8 |
140 |
115 |
|
3/8 |
20.6 |
22.2 |
19.7 |
28 |
33 |
112 |
132 |
125 |
|
1/2 |
23.8 |
25.4 |
23.1 |
24.5 |
27.5 |
98 |
110 |
180 |
|
5/8 |
27 |
28.6 |
26.3 |
19.2 |
25 |
76.8 |
100 |
205 |
|
3/4 |
31 |
32.5 |
30.2 |
15.7 |
21.5 |
62.8 |
85 |
240 |
|
1 |
38.5 |
40.9 |
38.9 |
14 |
16.5 |
56 |
65 |
200 |
|
1'1/4 |
49 |
52.4 |
49.6 |
11.3 |
12.5 |
45.2 |
50 |
420 |
|
1'1/2 |
55.6 |
58.7 |
56 |
8.7 |
9 |
34.8 |
36 |
500 |
|
2 |
68.3 |
71.4 |
68.6 |
7.8 |
8 |
31.2 |
32 |
630 |
|
2'1/2 |
80.9 |
84.1 |
81.2 |
7 |
7 |
28 |
28 |
760 |
|
The above are common specifications, other sizes can be customized |
||||||||
|

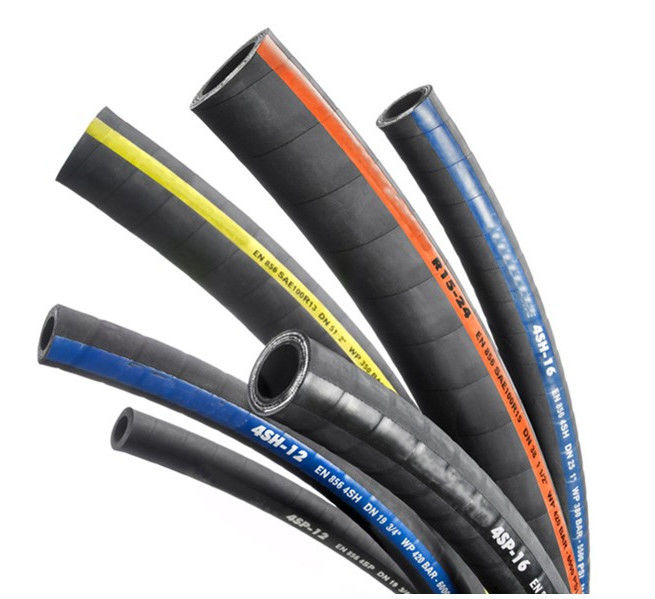

Product catalog |
|
|
Reinforcement |
Number |
|
One steel wire braided |
SAE R1AT/DIN 1SN. SAE R1AT/DIN 1ST, DIN 1SNK |
|
Two steel wire braided |
SAE R2AT/DIN 2SN,SAE R2AT/DIN 2ST,DIN 2SNK,DIN 2SC |
|
One/two wire braided |
SAE R16 |
|
Four steel wire spiral |
SAE R9AT, SAE R10 , SAE R12 ,DIN 4SP , DIN 4SH |
|
High flexibility nylon or thermoplastic |
SAE R7, SAE R8 |
