Place of Origin:
China
Brand Name:
Kelong
Certification:
ISO9001 / IRIS
Model Number:
EN856 4 SH
Contact Us

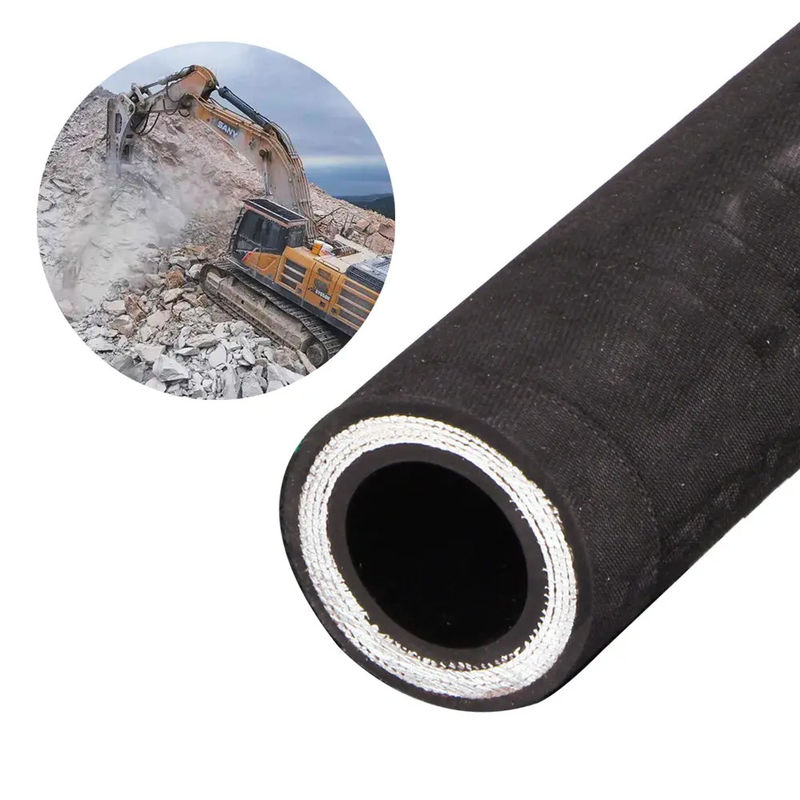

The en856 4sh hydraulic rubber hose is composed of three parts: inner tube, reinforcement layer, and outer rubber cover.
1) The inner tube is made of synthetic rubber that can withstand water and oil.
2) The reinforcement layer consists of multi-layer high-tensile spiraled steel wire layers that provide a strong structure.
3) The outer cover is made of high-quality synthetic rubber that is both weather and ozone resistant.
|
Product Name |
Industrial High Pressure Hose EN856 4sh Hydraulic Rubber Hose
|
|
Application
|
Industrial and automotive systems use hydraulic fluids to transfer force. The hydraulic hose is widely used in these field.
These fluids can be petroleum or water-based, and contain mineral oils, glycols, lubricants, emulsions, or hydrocarbons.
|
|
Reinforcement Layer
|
Multi-layer high intensity steel wire spiraled reinforcement
|
|
Outer Cover
|
Weather & ozone resistant synthetic rubber coating
|
|
Working Temperature Range
|
-40℉ to +212℉ (-40℃ to +100℃)
|
|
HS Code
|
4009220000
|
|
Products Application
|
EN856 4sh hydraulic rubber hose are utilized in multiple industries and machine tools, including engineering, metallurgy, mining, agriculture, and equipment like cranes, ships, and injection molding machines.
|
|

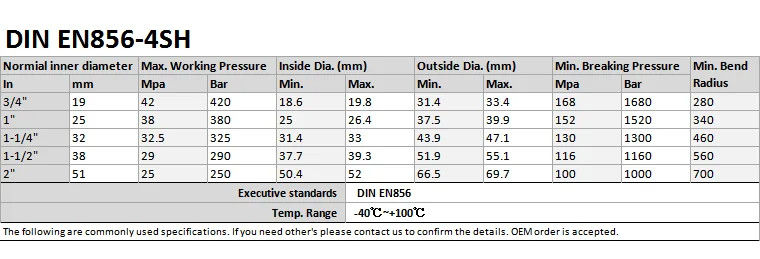

DIN EN856-4SH |
||||||||||
|
Normial inner diameter |
Max.Working Pressure |
Inside Dia. (mm) |
Outside Dia. (mm) |
Min. Breaking Pressure |
Min.Bend |
|||||
|
In |
mm |
Mpa |
Bar |
Min. |
Max. |
Min. |
Max. |
Mpa |
Bar |
|
|
3/4" |
19 |
42 |
420 |
18.6 |
19.8 |
31.4 |
33.4 |
168 |
1680 |
280 |
|
1" |
25 |
38 |
380 |
25 |
26.4 |
37.5 |
39.9 |
152 |
1520 |
340 |
|
1-1/4" |
32 |
32.5 |
325 |
31.4 |
33 |
43.9 |
47.1 |
130 |
1300 |
460 |
|
1-1/2" |
38 |
29 |
290 |
37.7 |
39.3 |
51.9 |
55.1 |
116 |
1160 |
560 |
|
2" |
51 |
25 |
250 |
50.4 |
52 |
66.5 |
69.7 |
100 |
1000 |
700 |
|
Executive standards |
DIN EN856 |
|||||||||
|
Temp. Range |
40℃~+100℃ |
|||||||||
|
The following are commonly used specifications. If you need other's please contact us to confirm the details. OEM order is accepted. |
||||||||||
