Place of Origin:
China
Brand Name:
Kelong
Certification:
ISO9001 / IRIS
Model Number:
EN853-2SN / SAE 100R2 AT
Contact Us
Material:

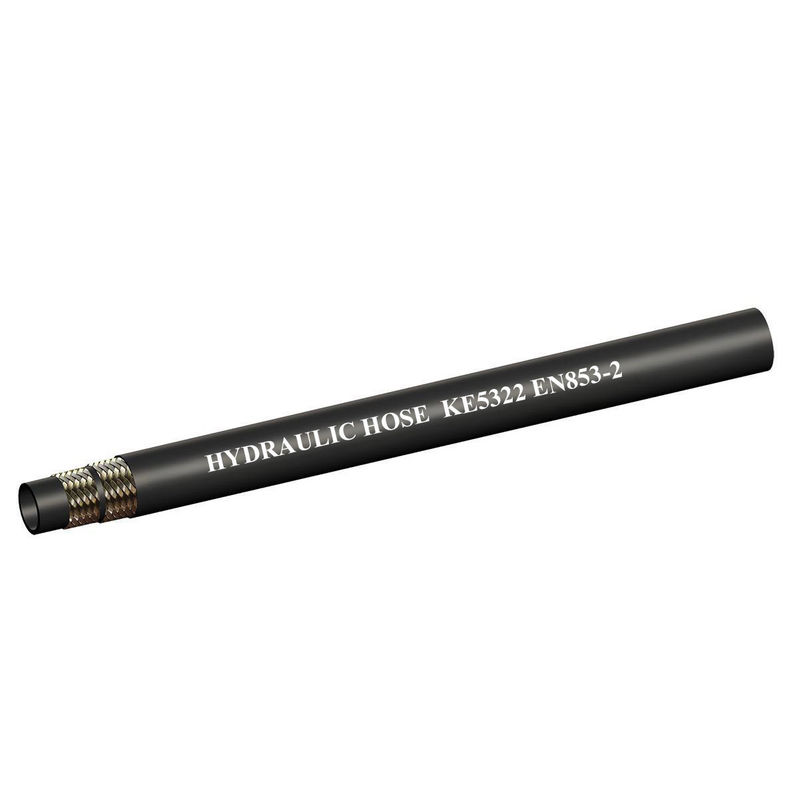

The high pressure 2sn rubber hydraulic hose features a blend of high-strength steel wire, as well as synthetic rubber which is weatherproof and resistant to mineral oils and water.
Temperature range:-40℃ (-40℉) To 100℃ (+212℉).
Product color:
We provide standard sizes, and also offer custom product creation through our OEM/ODM services.
Our standard color is black, but upon request for custom orders, we can offer different colors for specific quantities.
The implementation of standards:
SAE 100r2at/Din en 853
Applications:

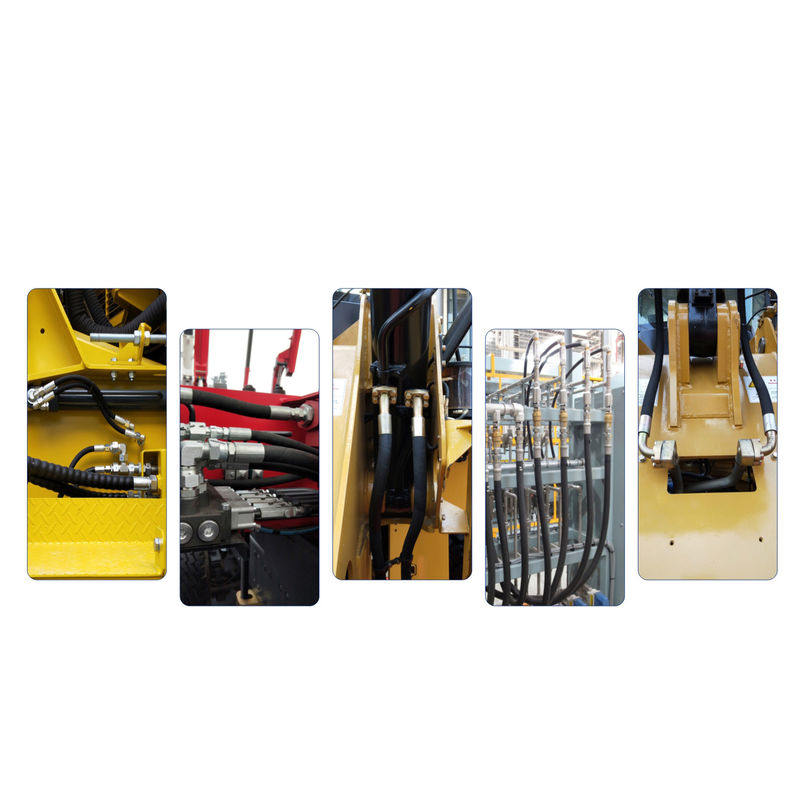

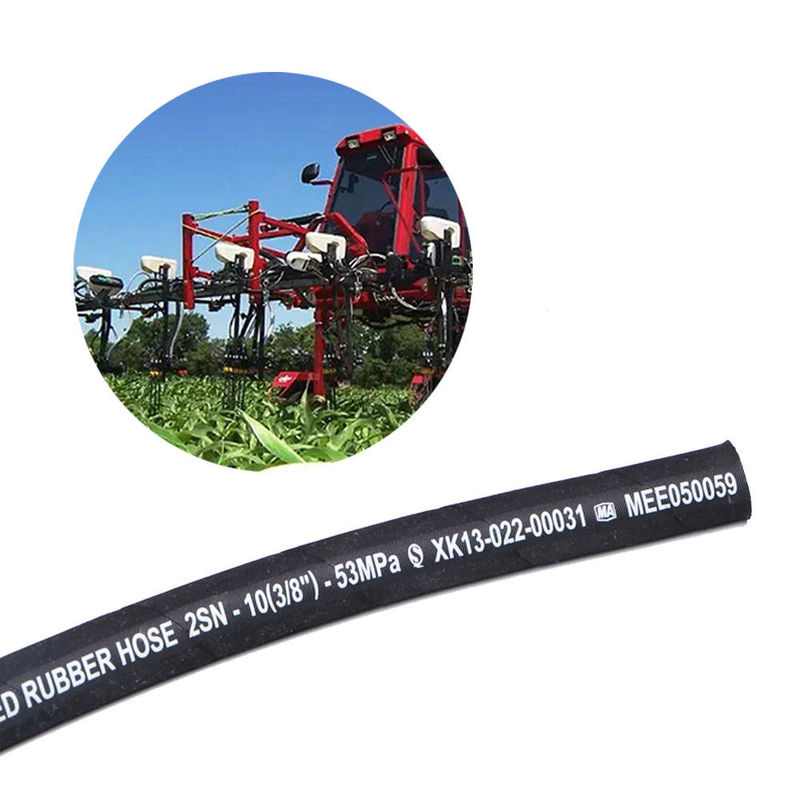

The application for high pressure 2sn rubber hydraulic hose is in mine hydraulic support and oil exploration. It is also suitable for use in engineering construction, crane transportation, metallurgy, mining equipment, ships, injection molding machinery, and agricultural machinery, among others. It is capable of transporting medium-high pressure hydraulic fluids, including but not limited to mineral oil, glycol, lubricating oil, emulsion, and hydrocarbon, that are either petroleum or water-based.
|

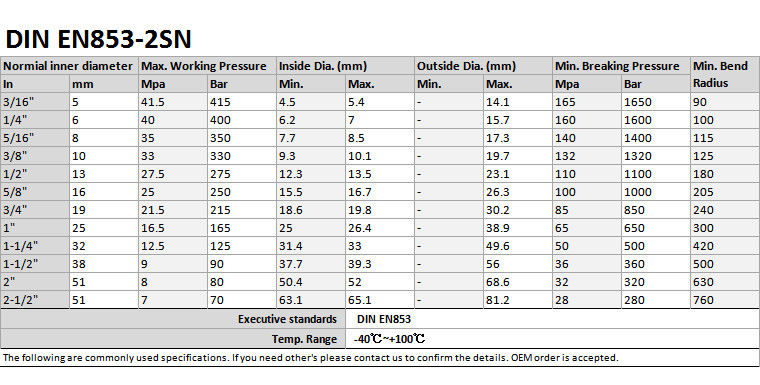

DIN EN853-2SN |
||||||||||
|
Normial inner diameter |
Max. Working Pressure |
Inside Dia. (mm) |
Outside Dia. (mm) |
Min.Breaking Pressure |
Min. Bend |
|||||
|
In |
mm |
Mpa |
Bar |
Min. |
Max. |
Min. |
Max. |
Mpa |
Bar |
|
|
3/16" |
5 |
41.5 |
415 |
4.5 |
5.4 |
|
14.1 |
165 |
1650 |
90 |
|
1/4" |
6 |
40 |
400 |
6.2 |
7 |
|
15.7 |
160 |
1600 |
100 |
|
5/16" |
8 |
35 |
350 |
7.7 |
8.5 |
|
17.3 |
140 |
1400 |
115 |
|
3/8" |
10 |
33 |
330 |
9.3 |
10.1 |
|
19.7 |
132 |
1320 |
125 |
|
1/2" |
13 |
27.5 |
275 |
12.3 |
13.5 |
|
23.1 |
110 |
1100 |
180 |
|
5/8" |
16 |
25 |
250 |
15.5 |
16.7 |
|
26.3 |
100 |
1000 |
205 |
|
3/4" |
19 |
21.5 |
215 |
18.6 |
19.8 |
|
30.2 |
85 |
850 |
240 |
|
1" |
25 |
16.5 |
165 |
25 |
26.4 |
|
38.9 |
65 |
650 |
300 |
|
1-1/4" |
32 |
12.5 |
125 |
31.4 |
33 |
|
49.6 |
50 |
500 |
420 |
|
1-1/2" |
38 |
9 |
90 |
37.7 |
39.3 |
|
56 |
36 |
360 |
500 |
|
2" |
51 |
8 |
80 |
50.4 |
52 |
|
68.6 |
32 |
320 |
630 |
|
2-1/2" |
51 |
7 |
70 |
63.1 |
65.1 |
|
81.2 |
28 |
280 |
760 |
|
Executive standards |
DIN EN853 |
|||||||||
|
Temp. Range |
-40℃~+100℃ |
|||||||||
|
The following are commonly used specifications. If you need other's please contact us to confirm the details. OEM order is accepted. |
||||||||||
|

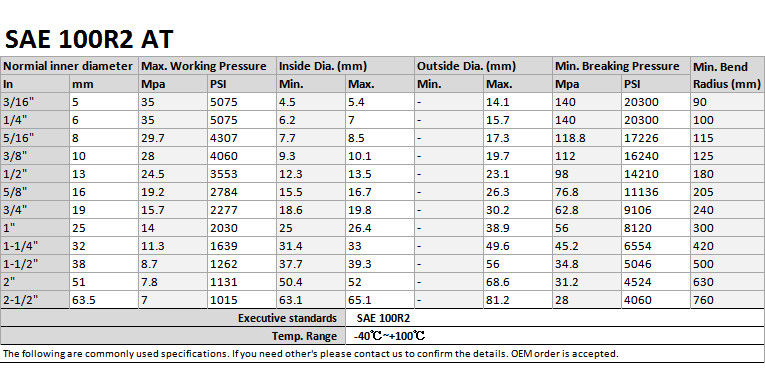

SAE 100R2 AT |
||||||||||
|
Normial inner diameter |
Max. Working Pressure |
Inside Dia. (mm) |
Outside Dia. (mm) |
Min.Breaking Pressure |
Min.Bend |
|||||
|
In |
mm |
Mpa |
PSI |
Min. |
Max. |
Min. |
Max. |
Mpa |
PSI |
|
|
3/16" |
5 |
35 |
5075 |
4.5 |
5.4 |
|
14.1 |
140 |
20300 |
90 |
|
1/4" |
6 |
35 |
5075 |
6.2 |
7 |
|
15.7 |
140 |
20300 |
100 |
|
5/16" |
8 |
29.7 |
4307 |
7.7 |
8.5 |
|
17.3 |
118.8 |
17226 |
115 |
|
3/8" |
10 |
28 |
4060 |
9.3 |
10.1 |
|
19.7 |
112 |
16240 |
125 |
|
1/2" |
13 |
24.5 |
3553 |
12.3 |
13.5 |
|
23.1 |
98 |
14210 |
180 |
|
5/8" |
16 |
19.2 |
2784 |
15.5 |
16.7 |
|
26.3 |
76.8 |
11136 |
205 |
|
3/4" |
19 |
15.7 |
2277 |
18.6 |
19.8 |
|
30.2 |
62.8 |
9106 |
240 |
|
1" |
25 |
14 |
2030 |
25 |
26.4 |
|
38.9 |
56 |
8120 |
300 |
|
1-1/4" |
32 |
11.3 |
1639 |
31.4 |
33 |
|
49.6 |
45.2 |
6554 |
420 |
|
1-1/2" |
38 |
8.7 |
1262 |
37.7 |
39.3 |
|
56 |
34.8 |
5046 |
500 |
|
2" |
51 |
7.8 |
1131 |
50.4 |
52 |
|
68.6 |
31.2 |
4524 |
630 |
|
2-1/2" |
63.5 |
7 |
1015 |
63.1 |
65.1 |
|
81.2 |
28 |
4060 |
760 |
|
Executive standards |
SAE 100R2 |
|||||||||
|
Temp. Range |
40℃~+100℃ |
|||||||||
|
The following are commonly used specifications. Ifyou need other's please contact us to confirm the details. OEMorderis accepted. |
||||||||||
