Place of Origin:
China
Brand Name:
Kelong
Certification:
ISO9001 / IRIS
Model Number:
SAE 100 R12
Contact Us

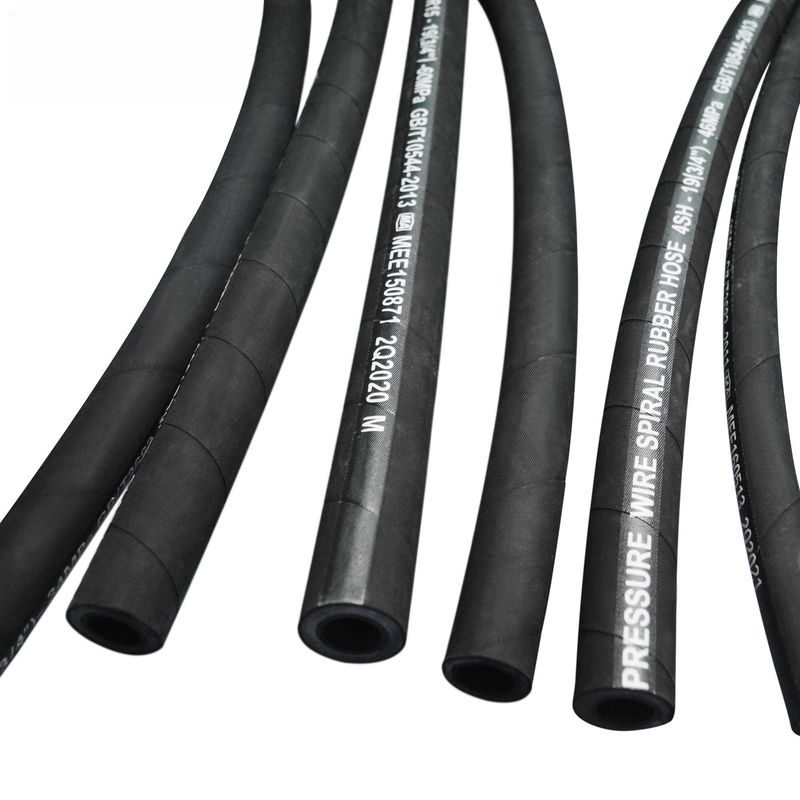

SAE 100 R12 1/4 Inch 3/4inch Suction Steel Wire Braided Hydraulic Hose Pipe With Oil Resistant Tube
Application:

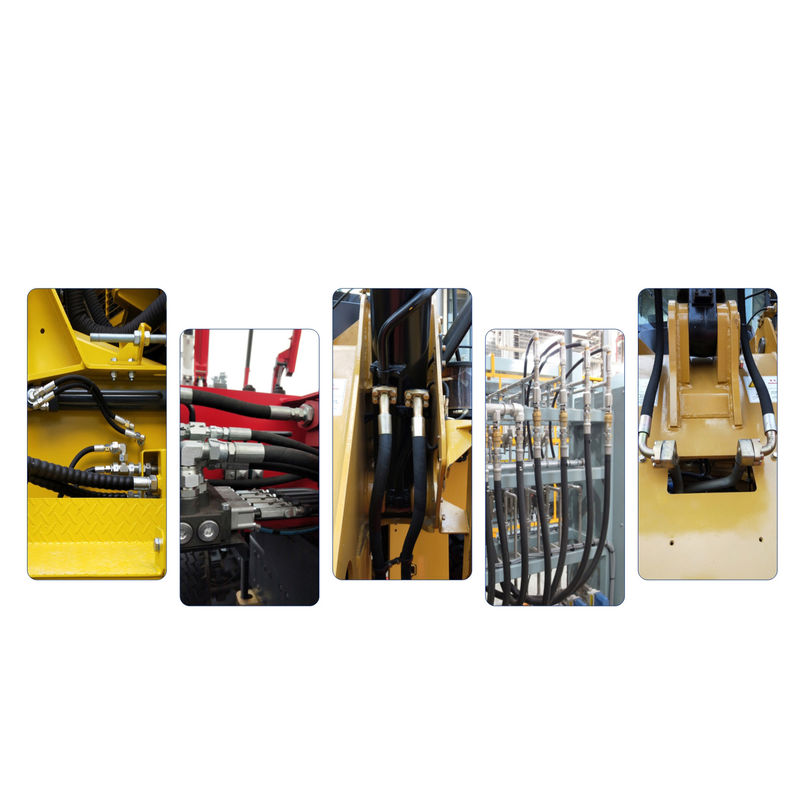

This hose is suitable for delivering petroleum-based hydraulic oils and it is mainly used in high pressure working conditions.
Features:
1, Good resistance to oil
2, Good resistance to extremely high pressure.
3, Good resistance to abrasion, corrosion, weather, ozone, cut, aging and sunlight.
Material:
Tube: high quality black oil resistant synthetic rubber.

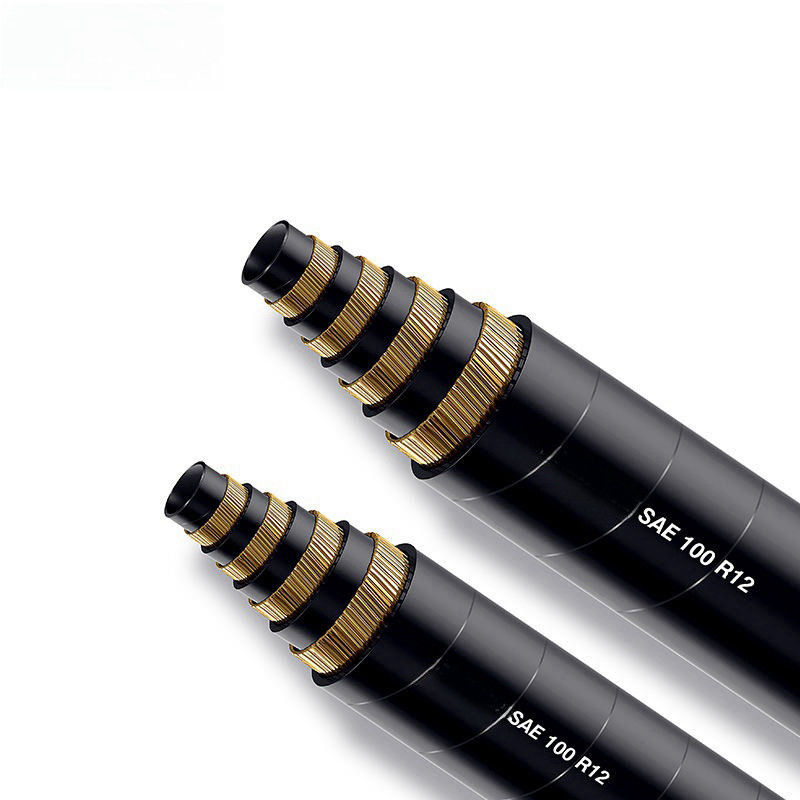

Reinforcement: four layers of high tensile and high strength thick spiraled steel wire in alternating direction.
Cover: high quality abrasion, weather and corrosion resistant synthetic rubber.
Working temperature range: -40 °C to +121 °C.
Specifications:
1. Oil&weather resistant rubber
2. Steel wire braided or spiral
3. High pressure,good flexible
4. SAE&DIN&EN standard
| Commodity | Specification |
| SAE 100 | R1,R2,R6,R7,R8,R9,R12,R13,R14,R15,R16,R17 |
| DIN EN853 | 1SN,2SN,1ST,2ST |
| DIN EN856 | 4SH 4SP |
| DIN EN857 | 1SC,2SC |

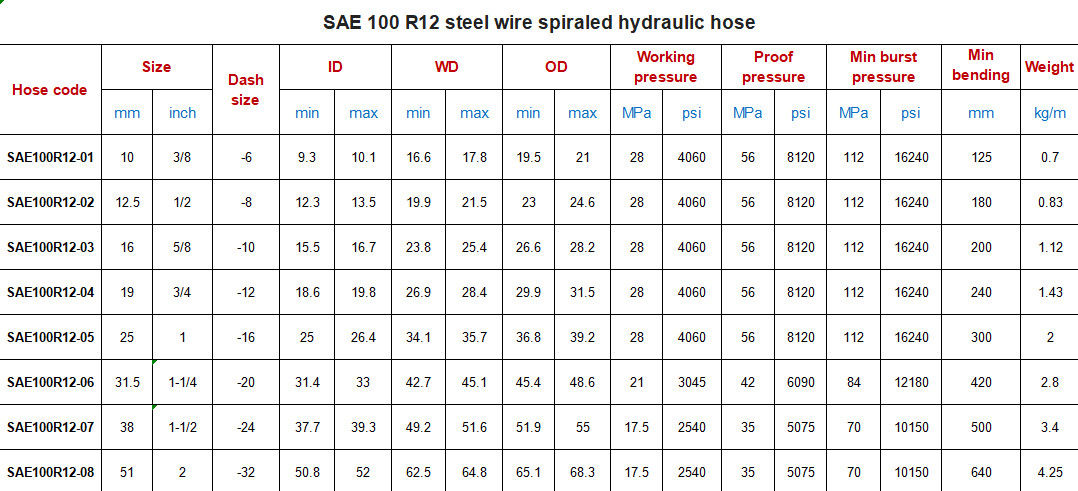

| SAE 100 R12 steel wire spiraled hydraulic hose | |||||||||||||||||
| Hose code | Size | Dash size |
ID | WD | OD | Working pressure |
Proof pressure |
Min burst pressure |
Min bending |
Weight | |||||||
| mm | inch | min | max | min | max | min | max | MPa | psi | MPa | psi | MPa | psi | mm | kg/m | ||
| SAE100R12-01 | 10 | 3/8 | 6 | 9.3 | 10.1 | 16.6 | 17.8 | 19.5 | 21 | 28 | 4060 | 56 | 8120 | 112 | 16240 | 125 | 0.7 |
| SAE100R12-02 | 12.5 | 1/2 | -8 | 12.3 | 13.5 | 19.9 | 21.5 | 23 | 24.6 | 28 | 4060 | 56 | 8120 | 112 | 16240 | 180 | 0.83 |
| SAE100R12-03 | 16 | 5/8 | -10 | 15.5 | 16.7 | 23.8 | 25.4 | 26.6 | 28.2 | 28 | 4060 | 56 | 8120 | 112 | 16240 | 200 | 1.12 |
| SAE100R12-04 | 19 | 3/4 | -12 | 18.6 | 19.8 | 26.9 | 28.4 | 29.9 | 31.5 | 28 | 4060 | 56 | 8120 | 112 | 16240 | 240 | 1.43 |
| SAE100R12-05 | 25 | 1 | -16 | 25 | 26.4 | 34.1 | 35.7 | 36.8 | 39.2 | 28 | 4060 | 56 | 8120 | 112 | 16240 | 300 | 2 |
| SAE100R12-06 | 31.5 | 1-1/4 | 20 | 31.4 | 33 | 42.7 | 45.1 | 45.4 | 48.6 | 21 | 3045 | 42 | 6090 | 84 | 12180 | 420 | 2.8 |
| SAE100R12-07 | 38 | 1-1/2 | -24 | 37.7 | 39.3 | 49.2 | 51.6 | 51.9 | 55 | 17.5 | 2540 | 35 | 5075 | 70 | 10150 | 500 | 3.4 |
| SAE100R12-08 | 51 | 2 | -32 | 50.8 | 52 | 62.5 | 64.8 | 65.1 | 68.3 | 17.5 | 2540 | 35 | 5075 | 70 | 10150 | 640 | 4.25 |
