Name: KL07 PU Hydraulic Rod Seals For Construction Machinery / Loading Platforms
Brand: Shaanxi Kelong New Materials Technology Co., Ltd.
SKU: KL07
Availability: InStock

Home > products > Hydraulic Rod Seals >

KL07 PU Hydraulic Rod Seals For Construction Machinery / Loading Platforms

KL07 Hydraulic Rod Seals

Loading Platforms Hydraulic Rod Seals

IRIS PU Hydraulic Seals

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL07

Request A Quote

Product Details

Style:

PU Hydraulic Seals

Temperature (max) °C:

-35/+100

Pressure (max) Bar:

400

Material:

PU / POM

Sliding Speed (max)- M/s:

0.5

Application:

Construction Machinery / Loading Platforms

Payment & Shipping Terms

Packaging Details:

Opp bag

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

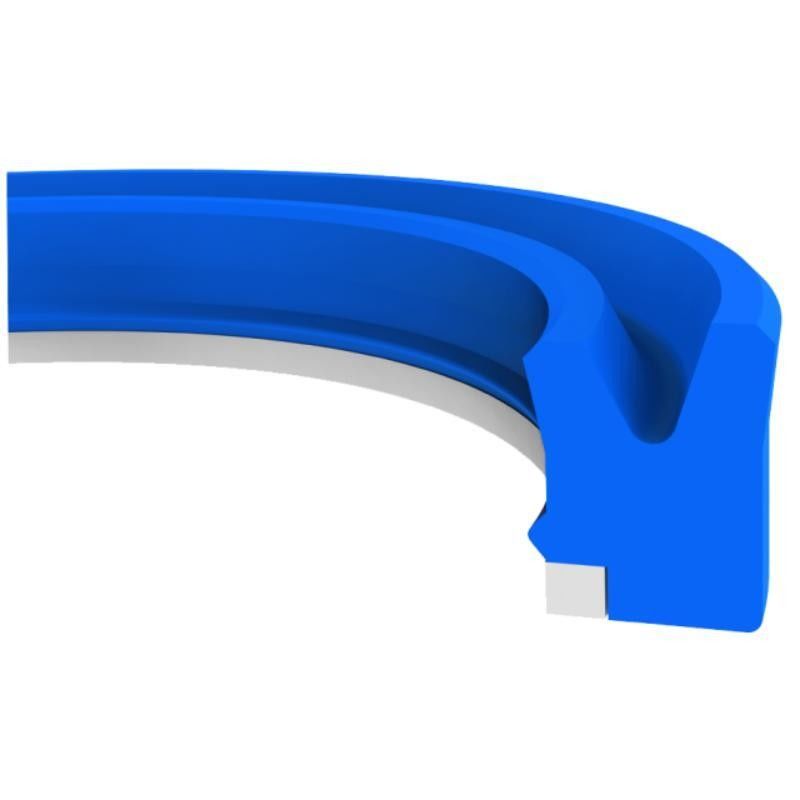

KL07 is a rod seal for hydraulic rod applications consisting of polyurethane seal and thermoplastic backup ring

Advantages

• High sealing performance

• Improved sealing gap thanks to the back-up ring

• Secondary sealing lip provides extra protection against the ingress of dirt particles.

• Simple groove design

Area of Application

• Construction machinery

• Mobile machinery

• Loading platforms

• Presses

• Medium and heavy duty cylinders

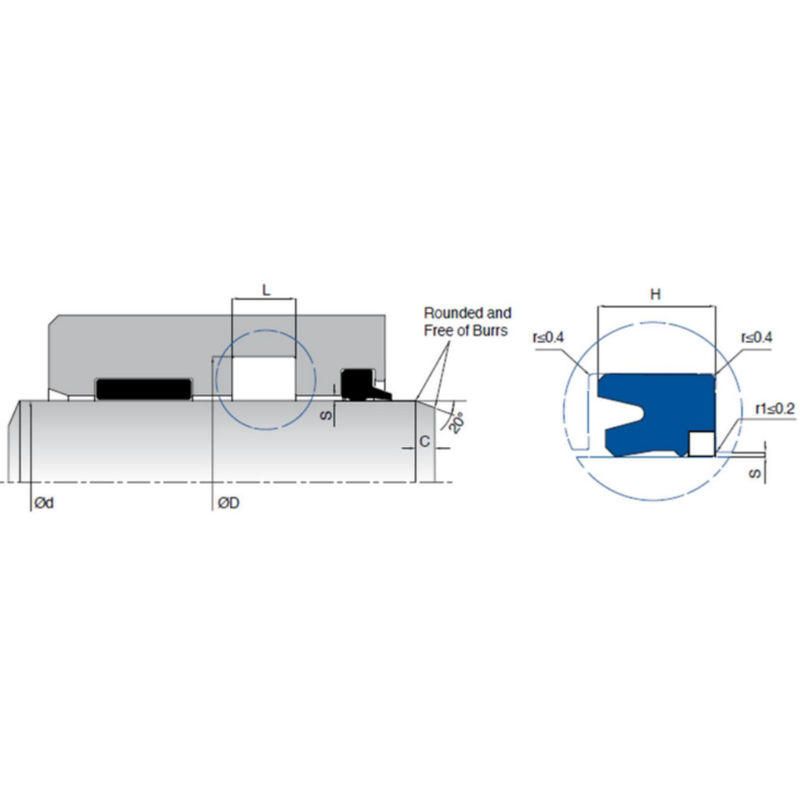

	d (f8)	D (H10)	L (+0.2/-0)	H	C	MATERIAL
KL07-019	19.05	25.4	7.14	6.35	3.5	PU
KL07-022	22	30	7	6	4.5	PU
KL07-025	25	35	6	5	5.5	PU
KL07-025/1	25.4	31.75	7.14	6.35	3.5	PU
KL07-028	28	38	7	6	5.5	PU
KL07-028/1	28	35.5	6	5	4.5	PU
KL07-030	30	40	9	8	5.5	PU
KL07-031	31.75	38.1	7.14	6.35	3.5	PU
KL07-032	32	45	10.5	9.5	5.5	PU
KL07-032/1	32	42	8	7	5.5	PU
KL07-034	34.92	41.27	7.14	6.35	3.5	PU
KL07-035	35	45	9	8	5.5	PU
KL07-035/1	35	45	8	7	5.5	PU
KL07-036	36	46	9	8	5.5	PU
KL07-038	38.1	44.45	7.14	6.35	3.5	PU
KL07-040	40	50	11	10	5.5	PU
KL07-040/1	40	52	13	12	5.5	PU
KL07-040/2	40	52	12	109	5.5	PU
KL07-040/3	40	48	9	8	4.5	PU
KL07-040/4	40	52	10	9	5.5	PU
KL07-044	44.45	53.97	10.5	9.52	5.5	PU
KL07-044/1	44.45	50.8	7.14	6.35	3.5	PU
KL07-045	45	55	11	10	5.5	PU
KL07-050	50	60	11	10	5.5	PU
KL07-050/1	50	62	9	8	5.5	PU
KL07-050/2	50.8	57.15	7.14	6.35	3.5	PU
KL07-050/4	50	65	13	12	6	PU
KL07-052	52	68	11	10	6	PU
KL07-055	55	65	11	10	5.5	PU
KL07-055/1	55	65	13	12	5.5	PU
KL07-056	56	71	11	10	6	PU
KL07-056/1	56	74	11	10	6	PU
KL07-060	60	70	11	10	5.5	PU
KL07-060/2	60	75	13	12	6	PU
KL07-063	63	75	9	8	5.5	PU
KL07-063/1	63	78	12	10.8	6	PU
KL07-065	65	80	13	12	6	PU
KL07-070	70	80	11	10	5.5	PU
KL07-070/1	70	82	13	12	5.5	PU
KL07-075	75	85	13	12	5.5	PU
KL07-080	80	90	13	12	5.5	PU
KL07-080/1	80	92	12	11	5.5	PU
KL07-080/3	80	100	16	15	6.5	PU
KL07-085	85	100	13	12	6	PU
KL07-090	90	100	13	12	5.5	PU
KL07-095	95	105	13	12	5.5	PU
KL07-100	100	115	13	12	6	PU
KL07-100/1	100	120	13	12	6.5	PU
KL07-105	105	115	13	12	5.5	PU
KL07-110	110	125	15.6	14.6	6	PU
KL07-110/1	110	130	16	15	6.5	PU
KL07-115	115	125	13	12	5.5	PU
KL07-120	120	140	15.6	14.6	6.5	PU
KL07-125	125	145	13	12	6.5	PU
KL07-130	130	140	13	12	5.5	PU
KL07-135	135	145	13	12	5.5	PU
KL07-140	140	160	15.6	14.6	6.5	PU
KL07-150/2	150	160	13	12	5.5	PU
KL07-155	155	170	15.6	14.6	6	PU
KL07-160	160	170	13	12	5.5	PU
KL07-190	190	210	16	15	6.5	PU
KL07-195	195	215	16	15	6.5	PU
KL07-210	210	235	19.2	18.2	8	PU
KL07-220	220	235	15.6	14.6	6	PU
KL07-260	260	280	15.6	14.6	6.5	PU
KL07-275	275	295	12	11	6.5	PU
KL07-285	285	310	20	19	8	PU
KL07-350	350	380	24	22.5	9.5	PU
KL07-380	380	400	16	15	6.5	PU
