Name: Four Piece Heavy Duty Hydraulic Piston Seals Double Acting For Mining Industry
Brand: Shaanxi Kelong New Materials Technology Co., Ltd.
SKU: KL39
Availability: InStock

Home > products > Hydraulic Piston Seals >

Four Piece Heavy Duty Hydraulic Piston Seals Double Acting For Mining Industry

Heavy Duty Hydraulic Piston Seals

Hydraulic Piston Seals Double Acting

Four Piece Hydraulic Piston Seals

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL39

Request A Quote

Product Details

Style:

Hydraulic Piston Seals Double Acting

Material:

NBR / TPE / POM

Pressure (max) Bar:

700

Temperature (max) °C:

-30/+100

Sliding Speed (max)- M/s:

0.3

Application:

Heavy Duty Cylinders

Payment & Shipping Terms

Packaging Details:

Opp bags

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

KL 39 Is A Four Piece Double Acting Heavy Duty Piston Seal With A Preferred Sealing Solution For Rough Counter Surfaces

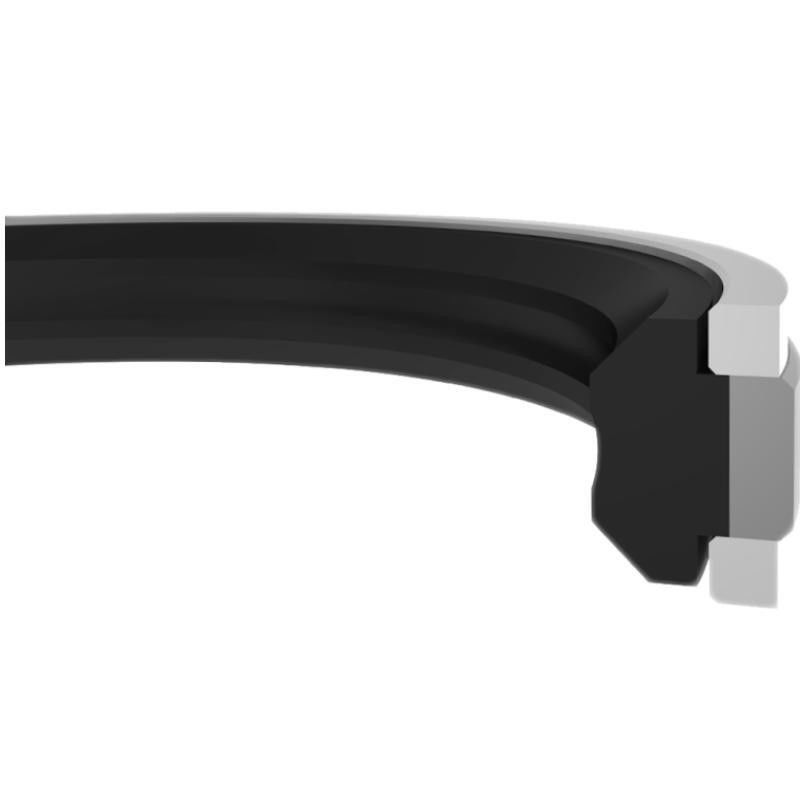

KL39 is a four piece double acting heavy duty piston seal which consists of one TPE profile ring, one elastomeric nitrile rubber to preload sealing element and two thermoplastic backup rings. TPE profile ring has superior abrasion resistance properties and KL39 is a preffered sealing solution for rough countersurfaces.

Advantages

• High wear resistance
• High extrusion resistance
• Good performance in high and variable pressure
• Long service life
• High performance in water-based oils and on rough surfaces
• Suitable with long term locked systems

Area of Application

• Mining industry
• Heavy duty cylinders

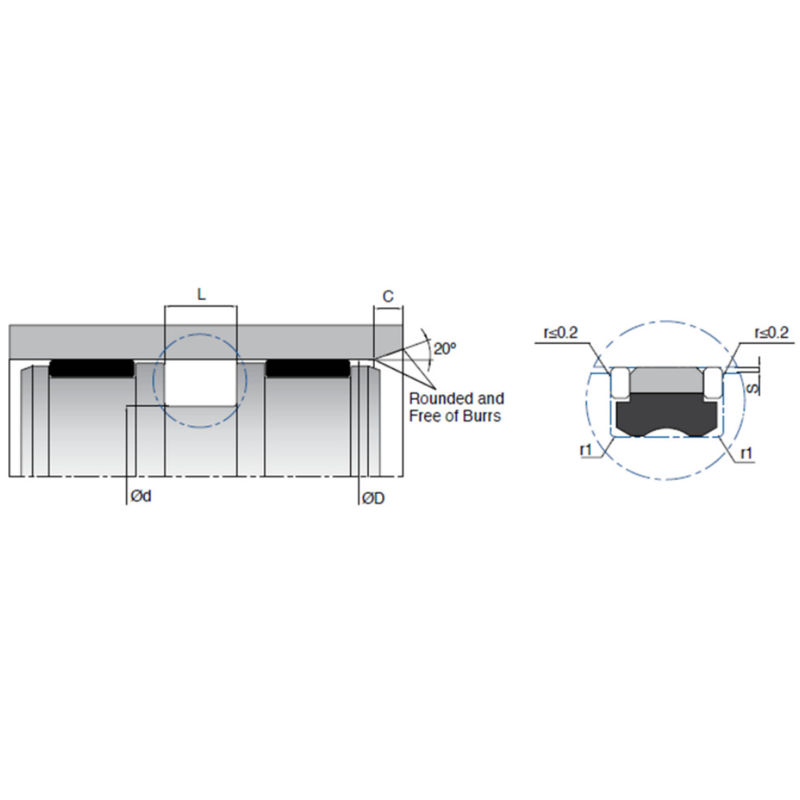

	D (H10)	d (h9)	L (+0.2/-0)	r1	C	MATERIAL
KL39 063-050	63	50	14.5	0.2	8	TPE
KL39 075-055	75	55	23	0.4	10	TPE
KL39 080-066	80	66	17	0.2	8	TPE
KL39 090-075	90	75	13.5	0.2	8	TPE
KL39 090-076	90	76	16	0.2	8	TPE
KL39 100-082	100	82	22.5	0.4	8	TPE
KL39 100-085	100	85	13.5	0.2	8	TPE
KL39 110-095	110	95	16	0.2	8	TPE
KL39 110-095/1	110	95	12.5	0.2	8	TPE
KL39 120-105	120	105	16	0.2	8	TPE
KL39 125-110	125	110	15.8	0.2	8	TPE
KL39 130-105	130	105	30	0.8	13	TPE
KL39 130-113	130	113	12.5	0.4	8	TPE
KL39 135-118	135	118	20.5	0.4	8	TPE
KL39 135-120	135	120	16	0.2	8	TPE
KL39 140-123	140	123	16	0.4	8	TPE
KL39 140-125	140	125	16	0.2	8	TPE
KL39 150-133	150	133	20	0.4	8	TPE
KL39 160-143	160	143	20	0.4	8	TPE
KL39 160-145	160	145	16	0.2	8	TPE
KL39 165-145	165	145	20	0.4	10	TPE
KL39 170-145	170	145	20	0.8	13	TPE
KL39 170-150	170	150	16	0.2	10	TPE
KL39 170-150/1	170	150	20	0.4	10	TPE
KL39 180-160	180	160	16	0.2	10	TPE
KL39 180-163	180	163	20	0.4	8	TPE
KL39 185-165	185	165	20	0.4	10	TPE
KL39 186-166	186	166	16	0.2	10	TPE
KL39 190-170	190	170	16	0.4	10	TPE
KL39 200-175	200	175	28	0.8	13	TPE
KL39 200-180/1	200	180	16	0.4	10	TPE
KL39 200-180	200	180	20	0.4	10	TPE
KL39 200-183	200	183	20	0.4	8	TPE
KL39 220-195	220	195	25	0.8	13	TPE
KL39 220-200	220	200	20.5	0.4	10	TPE
KL39 224-204	224	204	20.5	0.4	10	TPE
KL39 230-205	230	205	25	0.8	13	TPE
KL39 230-210	230	210	20	0.4	10	TPE
KL39 240-215	240	215	25	0.8	13	TPE
KL39 250-225	250	225	25	0.8	13	TPE
KL39 260-235	260	235	25	0.8	13	TPE
KL39 290-265	290	265	25	0.8	13	TPE
KL39 290-265/1	290	265	27	0.8	13	TPE
KL39 300-275/1	300	275	25	0.8	13	TPE
KL39 300-275	300	275	33	0.8	13	TPE
KL39 320-290	320	290	30	1	15	TPE
KL39 360-330	360	330	31.5	1	15	TPE
KL39 370-340	370	340	30	1	15	TPE
