Name: KL34 Single Acting Polyurethane Piston Seals Long Service Life
Brand: Shaanxi Kelong New Materials Technology Co., Ltd.
SKU: KL34
Availability: InStock

Home > products > Hydraulic Piston Seals >

KL34 Single Acting Polyurethane Piston Seals Long Service Life

Single Acting Polyurethane Piston Seals

KL34 Polyurethane Piston Seals

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL34

Request A Quote

Product Details

Style:

Single Acting Polyurethane Piston Seals

Material:

NBR / TPE / POM

Pressure (max) Bar:

400

Sliding Speed (max)- M/s:

0.5

Temperature (max) °C:

-35/+100

Application:

Long Stroke Cylinders

Payment & Shipping Terms

Packaging Details:

Opp bags

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

Single Acting Piston Seal Consists Of Thermoplastic Polyurethane Ring Which Avoids Hydrodynamic Pressure

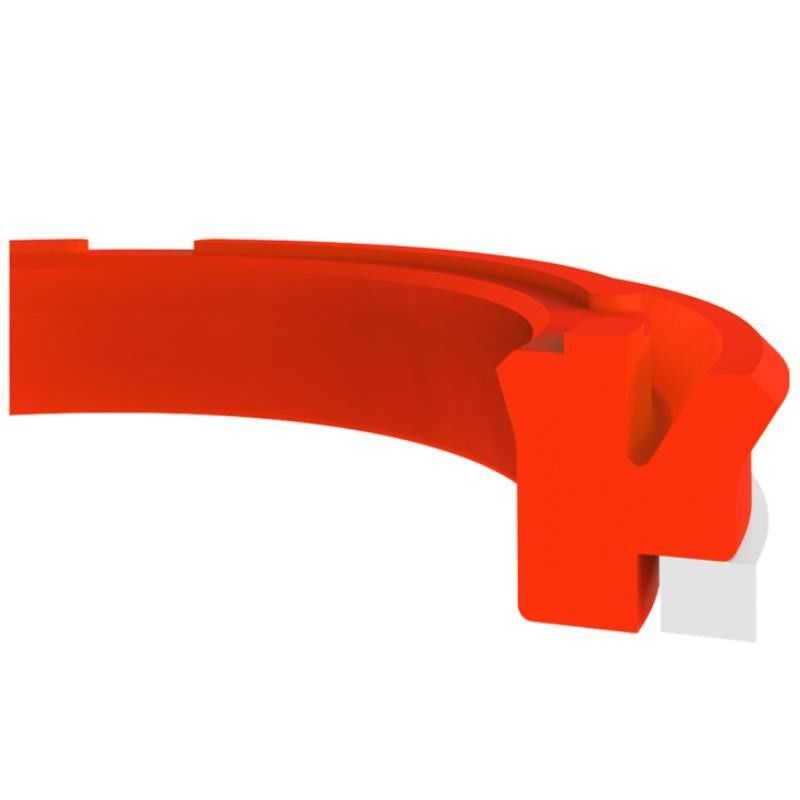

KL34 single acting piston seal consists of thermoplastic polyurethane ring, wihch avoids hydrodynamic pressure thanks to the notched design and thermoplastic POM backup ring.

Advantages

• Good dynamic and static sealing
• Relief grooves against dynamic pressure
• Long service life
• High extrusion resistance
• Thin oil film and very good locking feature

Area of Application

• Heavy duty cylinders
• Mobile machinery
• Scrap and metal industry
• Long stroke cylinders KL34 Single Acting Polyurethane Piston Seals Long Service Life 0

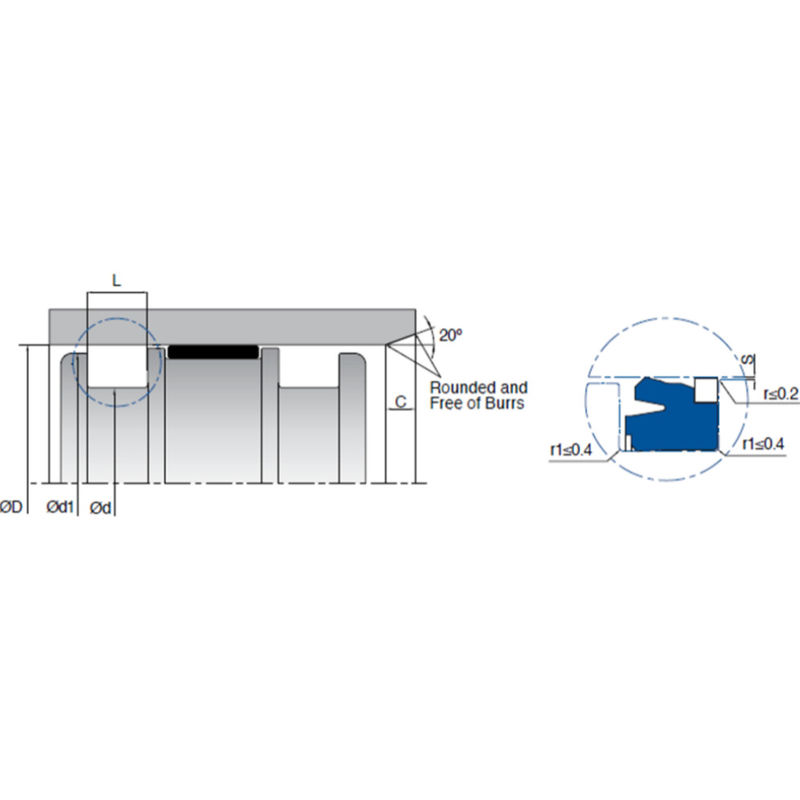

	D (H8)	d (h11)	L (+0.2/-0)	d1min	C	MATERIAL
KL34-014	14	8	6	10	2	PU
KL34-036	36	27	6	32	3	PU
KL34-040	40	25	11	35	4	PU
KL34-045	45	30	11	40	4	PU
KL34-045/1	45	30	9.5	40	4	PU
KL34-050	50	35	11	45	4	PU
KL34-050/1	50	35	9.5	45	4	PU
KL34-050/2	50	30	12	45	5	PU
KL34-055	55	40	11	50	4	PU
KL34-055/1	55	40	9.5	50	4	PU
KL34-060	60	45	11	55	4	PU
KL34-060/1	60	45	9.5	55	4	PU
KL34-063	63	48	10	58	4	PU
KL34-063/1	63	50	10	58	4	PU
KL34-063/2	63	48	9.5	58	4	PU
KL34-063/3	63.5	50.8	10.5	58	4	PU
KL34-065	65	50	11	60	4	PU
KL34-065/1	65	45	13	60	5	PU
KL34-070	70	50	13	64	5	PU
KL34-070/2	70	55	10	64	4	PU
KL34-070/3	70	50	16.5	64	5	PU
KL34-075	75	55	13	69	5	PU
KL34-080	80	60	13	74	5	PU
KL34-080/1	80	60	12.5	74	5	PU
KL34-085	85	70	9.3	79	4	PU
KL34-090	90	70	13	84	5	PU
KL34-100	100	80	13	94	5	PU
KL34-100/1	100	88	8.5	94	4	PU
KL34-110	110	90	13	104	5	PU
KL34-120	120	100	13	114	5	PU
KL34-125	125	100	16.2	119	6.5	PU
KL34-140	140	115	15	134	6.5	PU
KL34-140/1	140	120	12.5	134	5	PU
KL34-150	150	120	19	144	7.5	PU
KL34-170	170	150	12.5	164	5	PU
KL34-180	180	150	19	174	7.5	PU
KL34-220	220	190	17	212	7.5	PU
KL34-240	240	210	17	232	7.5	PU
