Name: Industrial Single Acting Hydraulic Cylinder Seals With Cut Lip
Brand: Shaanxi Kelong New Materials Technology Co., Ltd.
SKU: KL33
Availability: InStock

Home > products > Hydraulic Piston Seals >

Industrial Single Acting Hydraulic Cylinder Seals With Cut Lip

Industrial Single Acting Hydraulic Cylinder Seals

IRIS Single Acting Hydraulic Cylinder Seals

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL33

Request A Quote

Product Details

Style:

Single Acting Hydraulic Cylinder Seals

Material:

NBR / TPE / POM

Pressure (max) Bar:

400 /150

Temperature (max) °C:

-40/+100 -30/+105

Sliding Speed (max)- M/s:

0.5

Application:

Standard Industrial Cylinders

Payment & Shipping Terms

Packaging Details:

Opp bags

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

Single Acting Piston Seal With Cut Lip Design For Use In Hydraulic Applications And Supplying Thin Oil Fim

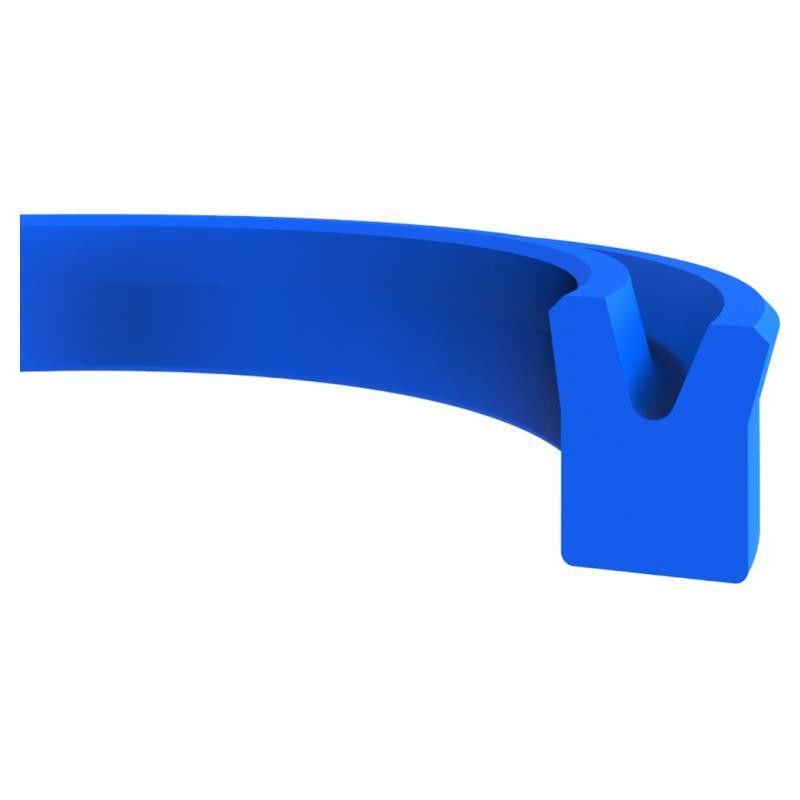

KL33 is a single acting piston seal with cut lip design for use in hydraulic applications and supplying thin oil fim.

Advantages

• Superior static and dynamic sealing effect
• Wide range of dimensions
• Easy installation into closed grooves
• Economical sealing solution
• Simple design suitable with many standard cylinders

Area of Application

• Agricultural machinery
• Presses
• Construction machinery
• Loading platforms
• Injection moulding machines
• Forklifts
• Standard industrial cylinders

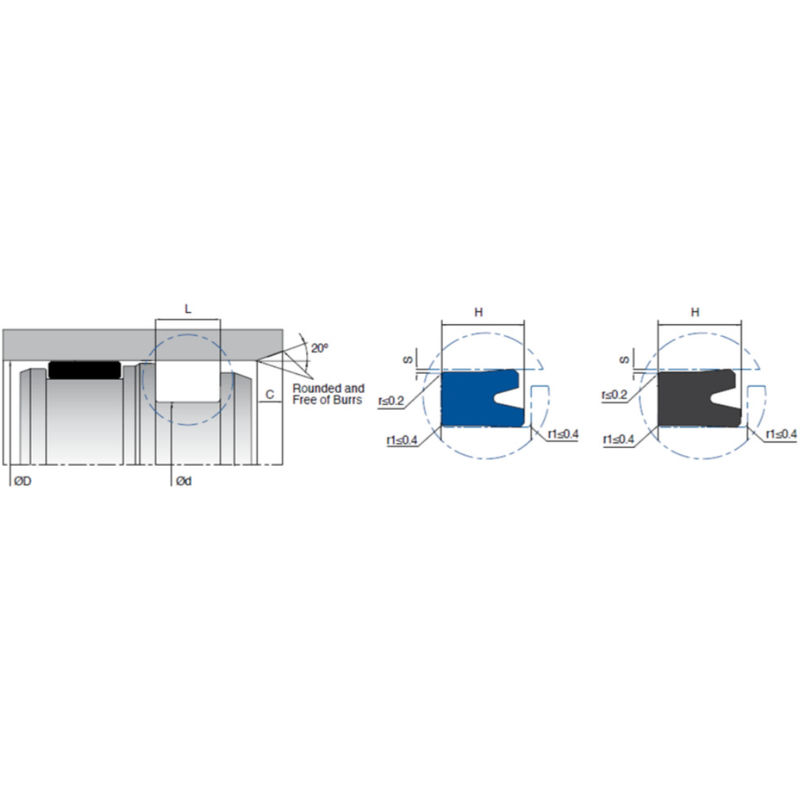

	D (H10)	d (h11)	L (+0.2/-0)	H	C	MATERIAL
KL33-012	12	7	3.05	2.55	2.5	NBR
KL33-012/1	12.5	4.5	4.5	4	4	NBR
KL33-012/1 PU	12.5	4.5	4.5	4	4	PU
KL33-012/2	12.7	6.35	5.2	4.76	3	NBR
KL33-012/2 PU	12.7	6.35	5.2	4.76	3	PU
KL33-012/4	12	6	4.5	4	3	NBR
KL33-013	13.8	8.6	3.3	2.8	2.5	NBR
KL33-013 PU	13.8	8.6	3.3	2.8	2.5	PU
KL33-014	14	6	9	8	4	NBR
KL33-014 PU	14	6	9	8	4	PU
KL33-014/1	14	8	5	4.5	3	NBR
KL33-014/1 PU	14	8	5	4.5	3	PU
KL33-014/3	14	6	7	6	4	NBR
KL33-014/3 PU	14	6	7	6	4	PU
KL33-015	15	9	9	8	3	NBR
KL33-015 PU	15	9	9	8	3	PU
KL33-016	16	6	11	10	4.5	NBR
KL33-016 PU	16	6	11	10	4.5	PU
KL33-016/1	16	10	4.5	4	3	NBR
KL33-016/1 PU	16	10	4.5	4	3	PU
KL33-016/2	16	10	6.5	5.5	3	NBR
KL33-016/2 PU	16	10	6.5	5.5	3	PU
KL33-016/3	16	9	6.5	5.5	3.5	NBR
KL33-016/3 PU	16	9	6.5	5.5	3.5	PU
KL33-016/4	16	10	9	8	3	NBR
KL33-016/4 PU	16	10	9	8	3	PU
KL33-016/5	16	8	6.5	5.5	4	NBR
KL33-016/5 PU	16	8	6.5	5.5	4	PU
KL33-016/7 PU	16	11	4	3.5	3	PU
KL33-017	17.46	12.05	3.5	3.17	3	NBR
KL33-017 PU	17.46	12.05	3.5	3.17	3	PU
KL33-019	19.05	12.7	3.5	3.17	3	NBR
KL33-019 PU	19.05	12.7	3.5	3.17	3	PU
KL33-020	20	14	6.5	5.5	3	NBR
KL33-020 PU	20	14	6.5	5.5	3	PU
KL33-020/1	20	14	4.7	4.2	3	NBR
KL33-020/1 PU	20	14	4.7	4.2	3	PU
KL33-020/3	20	12	6.5	5.5	4	NBR
KL33-020/3 PU	20	12	6.5	5.5	4	PU
KL33-020/4	20.63	14.28	7	6.35	3	NBR
KL33-020/4 PU	20.63	14.28	7	6.35	3	PU
KL33-022	22	13	8	7	4	NBR
KL33-022 PU	22	13	8	7	4	PU
KL33-022/1	22	10	9	8	5	NBR
KL33-022/1 PU	22	10	9	8	5	PU
KL33-022/2	22.22	12.7	7	6.35	4	NBR
KL33-022/2 PU	22.22	12.7	7	6.35	4	PU
KL33-022/3	22	16	6.5	5.5	3	NBR
KL33-022/3 PU	22	16	6.5	5.5	3	PU
KL33-022/4	22	16	4.5	4	3	NBR
KL33-022/4 PU	22	16	4.5	4	3	PU
KL33-025/1	25	18	6	5	3.5	NBR
KL33-025/2	25	19	3.5	3	3	NBR
KL33-025/2 PU	25	19	3.5	3	3	PU
KL33-025/3	25	19	7	6	3	NBR
KL33-025/3 PU	25	19	7	6	3	PU
KL33-025/5	25	15	6	5	4.5	NBR
KL33-025/5 PU	25	15	6	5	4.5	PU
KL33-025/6	25	17	6.5	5.5	4	NBR
KL33-025/6 PU	25	17	6.5	5.5	4	PU
KL33-026	26	18	8	7	4	NBR
KL33-026 PU	26	18	8	7	4	PU
KL33-026/2	26	18	6.5	5.5	4	NBR
KL33-026/2 PU	26	18	6.5	5.5	4	PU
KL33-026/3	26.99	17.46	7	6.35	4	NBR
KL33-026/3 PU	26.99	17.46	7	6.35	4	PU
KL33-028	28	16	10	9	5	NBR
KL33-028 PU	28	16	10	9	5	PU
KL33-028/1	28.57	19.05	7	6.35	4	NBR
KL33-028/1 PU	28.57	19.05	7	6.35	4	PU
KL33-030	30	22	7	6	4	NBR
KL33-030 PU	30	22	7	6	4	PU
KL33-030/1	30	20	8	7	4.5	NBR
KL33-030/1 PU	30	20	8	7	4.5	PU
KL33-030/2	30	15	11	10	5.5	NBR
KL33-030/2 PU	30	15	11	10	5.5	PU
KL33-030/4	30	15	9	8	5.5	NBR
KL33-031/1	31.75	19.05	7	6.35	6	NBR
KL33-031/1 PU	31.75	19.05	7	6.35	6	PU
KL33-031/2	31.75	19.05	8.7	7.93	6	NBR
KL33-031/2 PU	31.75	19.05	8.7	7.93	6	PU
KL33-032	32	24	6.5	5.5	4	NBR
KL33-032 PU	32	24	6.5	5.5	4	PU
KL33-032/1	32	22	8	7	4.5	NBR
KL33-032/1 PU	32	22	8	7	4.5	PU
KL33-032/2	32	22	6	5	4.5	NBR
KL33-032/2 PU	32	22	6	5	4.5	PU
KL33-034	34.92	22.22	7	6.35	6	NBR
KL33-034 PU	34.92	22.22	7	6.35	6	PU
KL33-035	35	25	7.5	6.5	4.5	NBR
KL33-035 PU	35	25	7.5	6.5	4.5	PU
KL33-035/1	35	25	8	7	4.5	NBR
KL33-035/1 PU	35	25	8	7	4.5	PU
KL33-035/2	35	27	11	10	4	NBR
KL33-035/2 PU	35	27	11	10	4	PU
KL33-035/3	35	25	9	8	4.5	NBR
KL33-035/3 PU	35	25	9	8	4.5	PU
KL33-035/4	35	20	11	10	5.5	NBR
KL33-035/4 PU	35	20	11	10	5.5	PU
