Name: Double Acting Hydraulic Cylinder Seals , NBR / TPE / POM Compact Piston Seal
Brand: Shaanxi Kelong New Materials Technology Co., Ltd.
SKU: KL31
Availability: InStock

Home > products > Hydraulic Piston Seals >

Double Acting Hydraulic Cylinder Seals , NBR / TPE / POM Compact Piston Seal

Double Acting Hydraulic Cylinder Seals

TPE Compact Piston Seal

POM Compact Piston Seal

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL31

Request A Quote

Product Details

Style:

Double Acting Hydraulic Cylinder Seals

Material:

NBR / TPE / POM

Pressure (max) Bar:

400

Temperature (max) °C:

-30/+100

Sliding Speed (max)- M/s:

1.5

Application:

Heavy Duty Hydraulic Cylinders / Presses

Payment & Shipping Terms

Packaging Details:

Opp bags

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

Double-Acting Compact Piston Seal Has A Robust Design Which A Preferred Design For A Wide Range Of Mobile Hydraulic

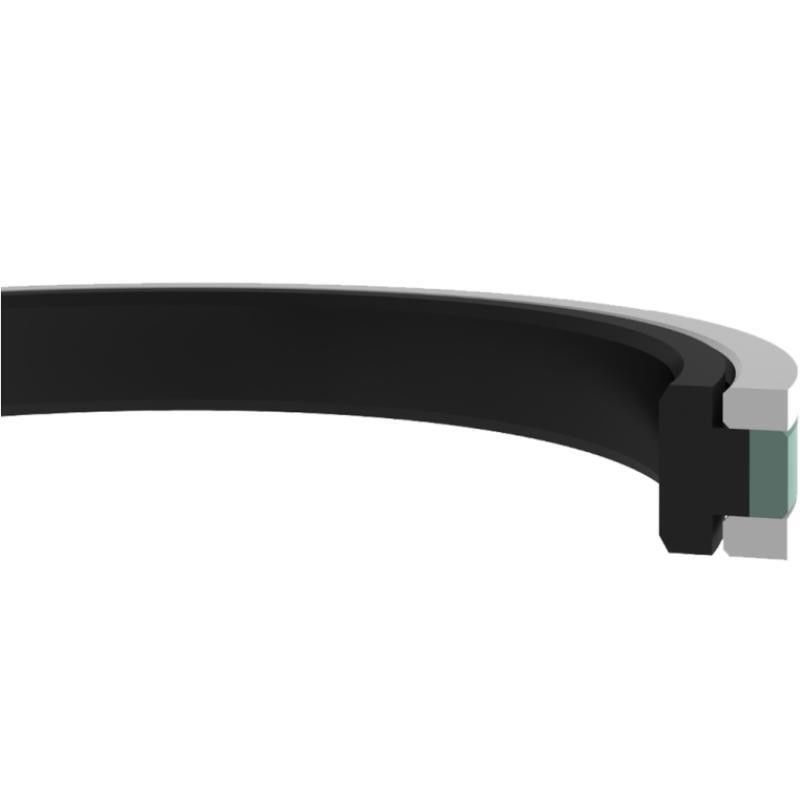

The KL31 double-acting compact piston seal has a robust design which contains an elastomer energizer, a PTFE ring and two thermoplastic back-up rings. The design has been a preferred design for a wide range of mobile hydraulic applications with low friction, low extrusion and long service-life properties.

Advantages

• Low coefficient of friction
• Good wear resistance
• High extrusion resistance
• Design operating at variable pressures
• Long service life

Area of Application

• Construction machinery
• Excavators
• Presses
• Injection moulding machines
• Heavy duty hydraulic cylinders

	D (H8)	d (h9)	L (+0.2/-0)	r1	C	MATERIAL
KL31 050-036	50	36	9	0.3	6.5	PTFE
KL31 055-041	55	41	9	0.3	6.5	PTFE
KL31 060-046	60	46	9	0.3	6.5	PTFE
KL31 060-050	60	50	8	0.3	5	PTFE
KL31 063-048	63	48	11	0.5	7.5	PTFE
KL31 065-050	65	50	11	0.5	7.5	PTFE
KL31 070-055	70	55	11	0.5	7.5	PTFE
KL31 075-060	75	60	11	0.5	7.5	PTFE
KL31 080-065	80	65	11	0.5	7.5	PTFE
KL31 085-070	85	70	11	0.5	7.5	PTFE
KL31 090-075	90	75	11	0.5	7.5	PTFE
KL31 095-080	95	80	11	0.5	7.5	PTFE
KL31 100-085	100	85	12.5	0.5	7.5	PTFE
KL31 105-090	105	90	12.5	0.5	7.5	PTFE
KL31 105-090/1	105	90	13.5	0.5	7.5	PTFE
KL31 105-090/2	105	90	14	0.5	7.5	PTFE
KL31 110-095	110	95	12.5	0.5	7.5	PTFE
KL31 115-100	115	100	12.5	0.5	7.5	PTFE
KL31 120-105	120	105	12.5	0.6	7.5	PTFE
KL31 125-102	125	102	16	0.6	11.5	PTFE
KL31 125-110	125	110	12.5	0.6	7.5	PTFE
KL31 130-107	130	107	16	0.6	11.5	PTFE
KL31 135-112	135	112	16	0.6	11.5	PTFE
KL31 140-117	140	117	16	0.6	11.5	PTFE
KL31 145-122	145	122	16	0.6	11.5	PTFE
KL31 150-127	150	127	16	0.6	11.5	PTFE
KL31 150-130	150	130	18	0.6	10.5	PTFE
KL31 150-135	150	135	12.5	0.6	7.5	PTFE
KL31 155-132	155	132	16	0.6	11.5	PTFE
KL31 160-137	160	137	16	0.6	11.5	PTFE
KL31 160-141.5	160	141.5	19	0.6	10.5	PTFE
KL31 160-145	160	145	12.5	0.6	7.5	PTFE
KL31 165-142	165	142	16	0.6	11.5	PTFE
KL31 165-145	165	145	17	0.6	10.5	PTFE
KL31 170-147	170	147	16	0.6	11.5	PTFE
KL31 170-155	170	155	16	0.6	7.5	PTFE
KL31 180-157	180	157	16	0.6	11.5	PTFE
KL31 180-160	180	160	18	0.6	10.5	PTFE
KL31 200-177	200	177	16	0.6	11.5	PTFE
KL31 225-202	225	202	16	0.6	11.5	PTFE
KL31 240-217	240	217	16	0.6	11.5	PTFE
KL31 260-232	260	232	17.5	0.6	10.5	PTFE
KL31 270-242	270	242	17.5	0.6	10.5	PTFE
KL31 280-252	280	252	17.5	0.6	10.5	PTFE
KL31 290-270	290	270	16	0.6	10.5	PTFE
KL31 360-332	360	332	17.5	0.6	10.5	PTFE
