Place of Origin:
China
Brand Name:
Kelong
Certification:
ISO9001 / IRIS
Model Number:
KE5311
Contact Us

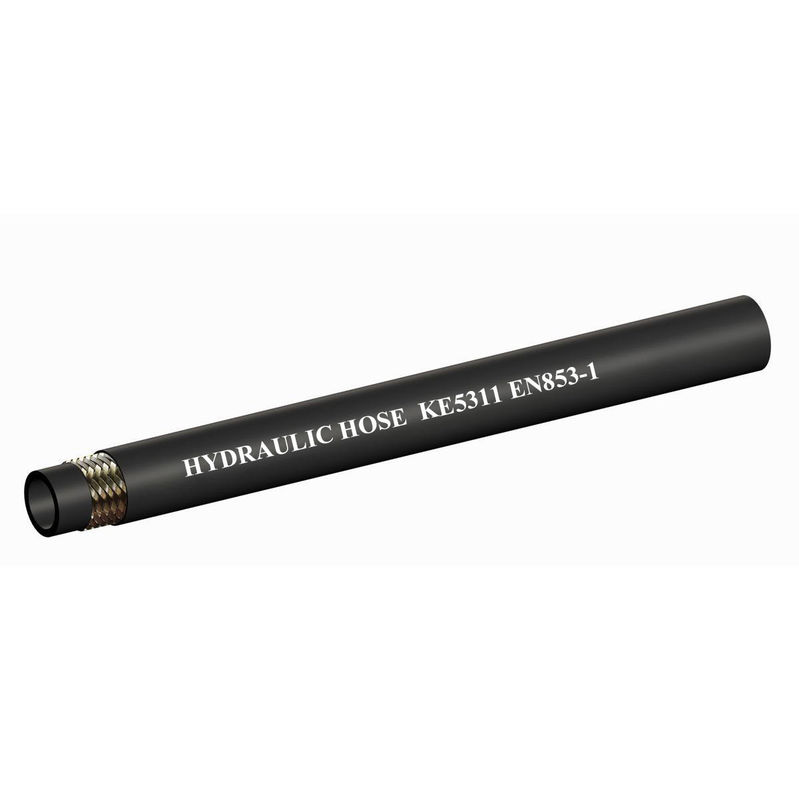

Wire Braid Hydraulic Hose Meets EN 853 1SN, SAE 100R1 And ISO 1436 1SN With Temperature Range Down To -40°C / -40°F

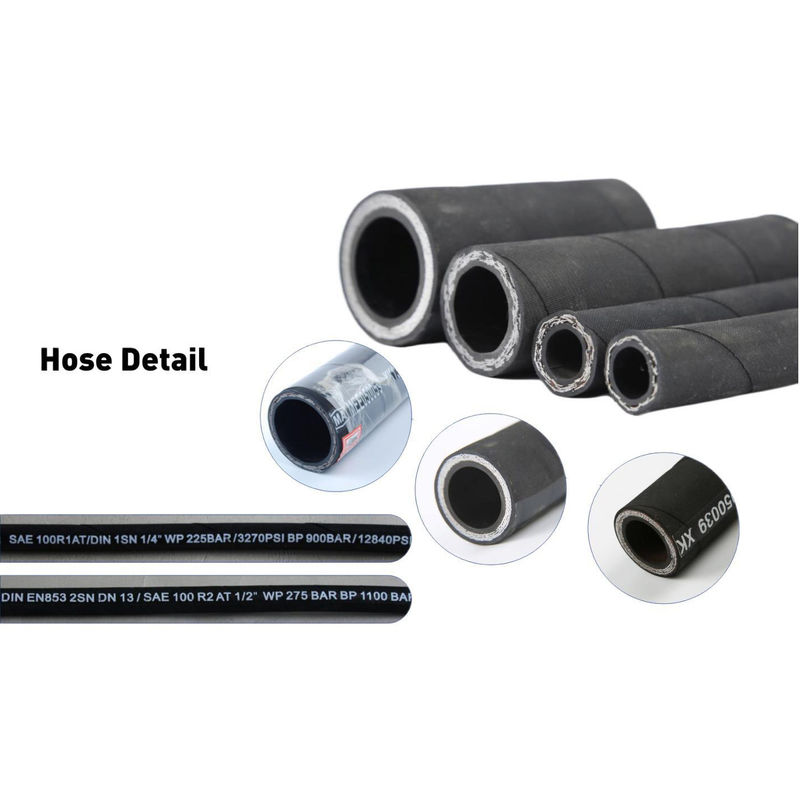

TUBE:
Oil-resistant synthetic rubber inner layer + high tensile steel braided layer + weather-resistant synthetic rubber layer
Reinforcement:One or Two braids of high tensile steel wire
Cover:Abrasion and ozone resistant synthetic rubber
Note:Various covers available
Temperature range:-40°C to 121°C / -40°F to +212°F

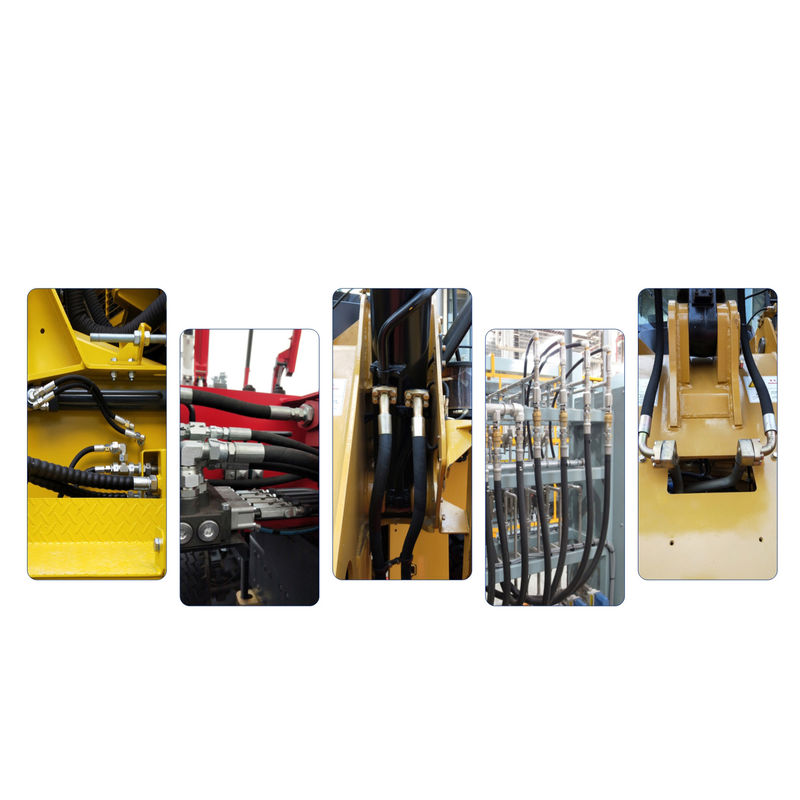

Applications:Suitable for petroleum-based hydraulic oil.
|
TYPE |
Dash size |
I.D |
W.D |
OD |
Working pressure |
Proof pressure |
Min Burst pressure |
Min Bend radius |
W.T |
||||||||||
|
1ST TYPE |
1SN TYPE |
W.P |
P. P |
B.P |
Min B.R |
||||||||||||||
|
mm |
1/16 |
Inch |
Min |
Max |
Min |
Max |
Min |
Max |
Max |
Mpa |
Psi |
Mpa |
Psi |
Mpa |
Psi |
Inch |
mm |
Kg/m |
|
|
KE5311-03 |
5 |
-3 |
3/16 |
4.9 |
5.4 |
9 |
10 |
11.9 |
13.5 |
12.5 |
25 |
3625 |
50 |
7250 |
100 |
14500 |
3.54 |
90 |
0.200 |
|
KE5311-04 |
6.3 |
-4 |
1/4 |
6.4 |
7 |
10.6 |
11.6 |
15.1 |
16.7 |
14.1 |
22.5 |
3260 |
45 |
6525 |
90 |
13050 |
3.94 |
100 |
0.250 |
|
KE5311-05 |
8 |
-5 |
5/16 |
7.9 |
8.5 |
12.1 |
13.3 |
16.7 |
18.3 |
15.7 |
21.5 |
3120 |
43 |
6235 |
85 |
12325 |
4.53 |
115 |
0.310 |
|
KE5311-06 |
10 |
-6 |
3/8 |
9.5 |
10.1 |
14.5 |
15.7 |
19 |
20.6 |
18.1 |
18 |
2610 |
36 |
5220 |
72 |
10440 |
5.12 |
130 |
0.360 |
|
KE5311-08 |
12.5 |
-8 |
1/2 |
12.7 |
13.5 |
17.5 |
19.1 |
22.2 |
23.8 |
21.4 |
16 |
2320 |
32 |
4640 |
64 |
9280 |
7.09 |
180 |
0.450 |
|
KE5311-10 |
16 |
-10 |
5/8 |
15.8 |
16.7 |
20.6 |
22.2 |
25.4 |
27 |
24.5 |
13 |
1885 |
26 |
3770 |
52 |
7540 |
7.87 |
200 |
0.520 |
|
KE5311-12 |
19 |
-12 |
3/4 |
18.8 |
19.8 |
24.6 |
26.2 |
29.4 |
31 |
28.5 |
10.5 |
1520 |
21 |
3045 |
42 |
6090 |
9.45 |
240 |
0.650 |
|
KE5311-16 |
25 |
-16 |
1 |
25.4 |
26.4 |
32.5 |
34.1 |
36.9 |
39.3 |
36.6 |
8.8 |
1280 |
17.5 |
2540 |
35 |
5075 |
11.81 |
300 |
0.910 |
|
KE5311-20 |
31.5 |
-20 |
1-1/4 |
31.8 |
33.0 |
39.3 |
41.7 |
44.4 |
47.6 |
44.8 |
6.3 |
910 |
15 |
2175 |
25 |
3625 |
16.54 |
420 |
1.300 |
|
KE5311-24 |
38 |
-24 |
1-1/2 |
38.1 |
39.3 |
45.6 |
48.0 |
50.8 |
54.0 |
52.1 |
5 |
725 |
10 |
1450 |
20 |
2900 |
19.69 |
500 |
1.700 |
|
KE5311-32 |
51 |
-32 |
2 |
50.6 |
52.0 |
58.7 |
61.7 |
65.1 |
68.3 |
65.5 |
4 |
580 |
8 |
1160 |
16 |
2320 |
24.80 |
630 |
2.000 |
