Place of Origin:
China
Brand Name:
Kelong
Certification:
ISO9001 / IRIS
Model Number:
KS1703
Contact Us

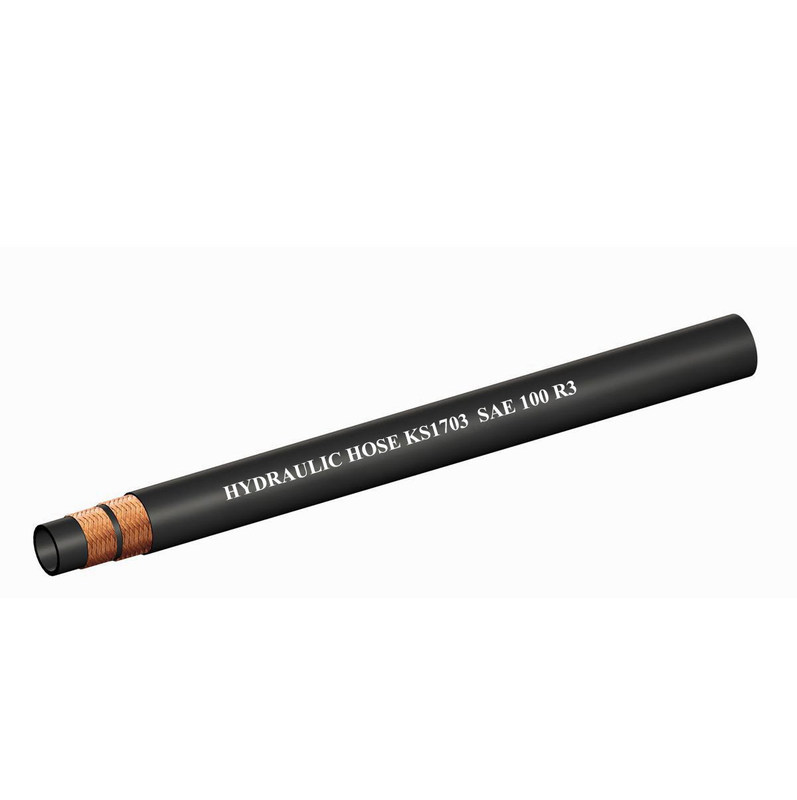

Two textile braids hydraulic hose meets SAE 100R3

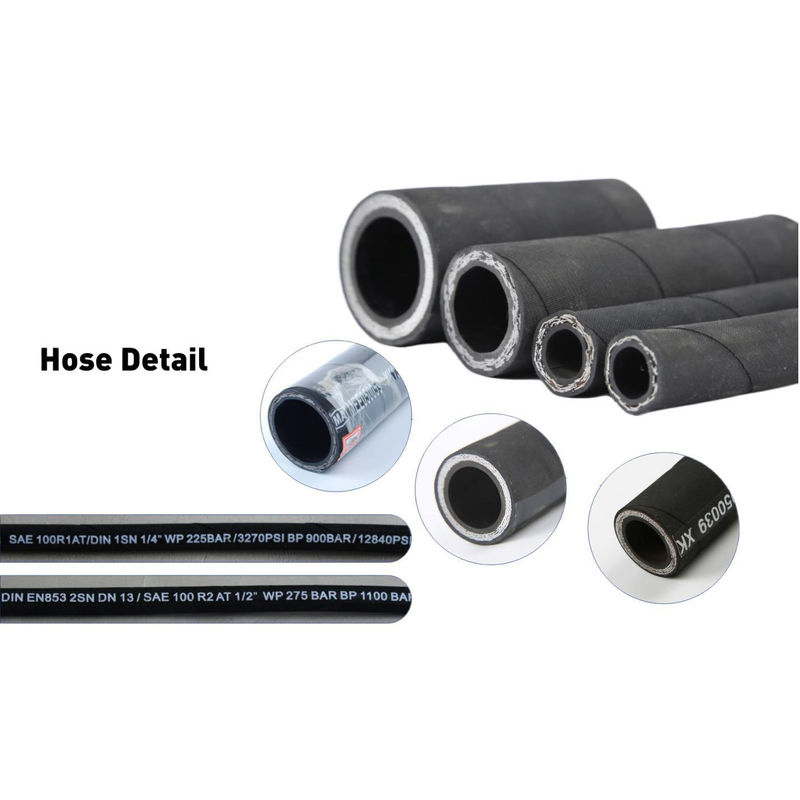

TUBE:
Oil-resistant synthetic rubber inner layer + textile braid + oil-resistant and weather-resistant synthetic rubber outer layer
Reinforcement:Two textile braids
INNER TUBE:oil resistant synthetic nitrile rubber
REINFORCEMENT:single layer of steel wire braided
COVER:Black, oil resistant, synthetic rubber.
Note:Various covers available
APPLICATION:
Medium pressure hydraulic lines. Meets or exceeds the requirements of SAE 100 R1 R2 R9 Type AT and performance requirementsof EN 853 1SN 2SN en856 4sp 4SH.

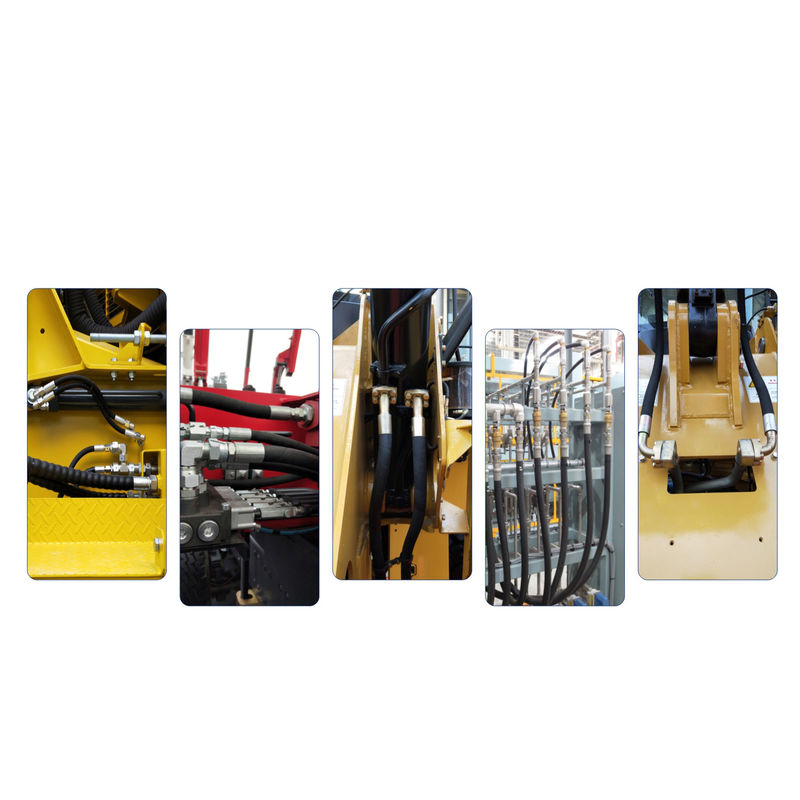

Mine hydraulic support, oilfield extraction machinery, mine/ road/construction machinery.
Suitable for petroleum-based hydraulic oil.
SURFACE:Wrapped surface,smooth surface
TEMPERATURE RANGE:-40℃ (-104 ℉ ) to +100℃(+212 ℉)
|
TYPE |
Dash size |
I.D |
O.D |
Working pressure |
Proof pressure |
Min Burst pressure |
Min Bend radius |
W.T |
||||||||
|
W.P |
P. P |
B.P |
Min B.R |
|||||||||||||
|
mm |
1/16 |
Inch |
Min |
Max |
Min |
Max |
Mpa |
Psi |
Mpa |
Psi |
Mpa |
Psi |
Inch |
mm |
Kg/m |
|
|
KS1703-03 |
5 |
-3 |
3/16 |
4.5 |
5.4 |
11.9 |
13.5 |
10.5 |
1520 |
21 |
3050 |
42 |
6090 |
2.95 |
75 |
0.16 |
|
KS1703-04 |
6.3 |
-4 |
1/4 |
6.1 |
7.0 |
13.5 |
15.1 |
8.7 |
1260 |
17.5 |
2540 |
35 |
5075 |
2.95 |
75 |
0.18 |
|
KS1703-05 |
8 |
-5 |
5/16 |
7.6 |
8.5 |
16.7 |
18.3 |
8.4 |
1220 |
16.8 |
2440 |
33.5 |
4860 |
3.94 |
100 |
0.27 |
|
KS1703-06 |
10 |
-6 |
3/8 |
9.2 |
10.1 |
18.3 |
19.8 |
7.8 |
1130 |
15.7 |
2280 |
31.5 |
4570 |
3.94 |
100 |
0.31 |
|
KS1703-08 |
12.5 |
-8 |
1/2 |
12.4 |
13.5 |
23.0 |
24.6 |
7 |
1015 |
14 |
2030 |
28 |
4060 |
4.92 |
125 |
0.45 |
|
KS1703-10 |
16 |
-10 |
5/8 |
15.6 |
16.7 |
26.2 |
27.8 |
6.1 |
885 |
12.2 |
1770 |
24.5 |
3550 |
5.51 |
140 |
0.53 |
|
KS1703-12 |
19 |
-12 |
3/4 |
18.7 |
19.8 |
31.0 |
32.5 |
5.2 |
750 |
10.5 |
1520 |
21 |
3045 |
5.91 |
150 |
0.72 |
|
KS1703-16 |
25 |
-16 |
1 |
25.1 |
26.2 |
36.9 |
39.3 |
3.9 |
570 |
7.8 |
1130 |
15.7 |
2280 |
8.07 |
205 |
0.90 |
|
KS1703-20 |
31.5 |
-20 |
1-1/4 |
31.4 |
32.9 |
42.9 |
46.0 |
2.6 |
380 |
5.2 |
750 |
10.5 |
1520 |
9.84 |
250 |
1.07 |
