Place of Origin:
China
Brand Name:
Kelong
Certification:
ISO9001 / IRIS
Model Number:
KL01
Contact Us

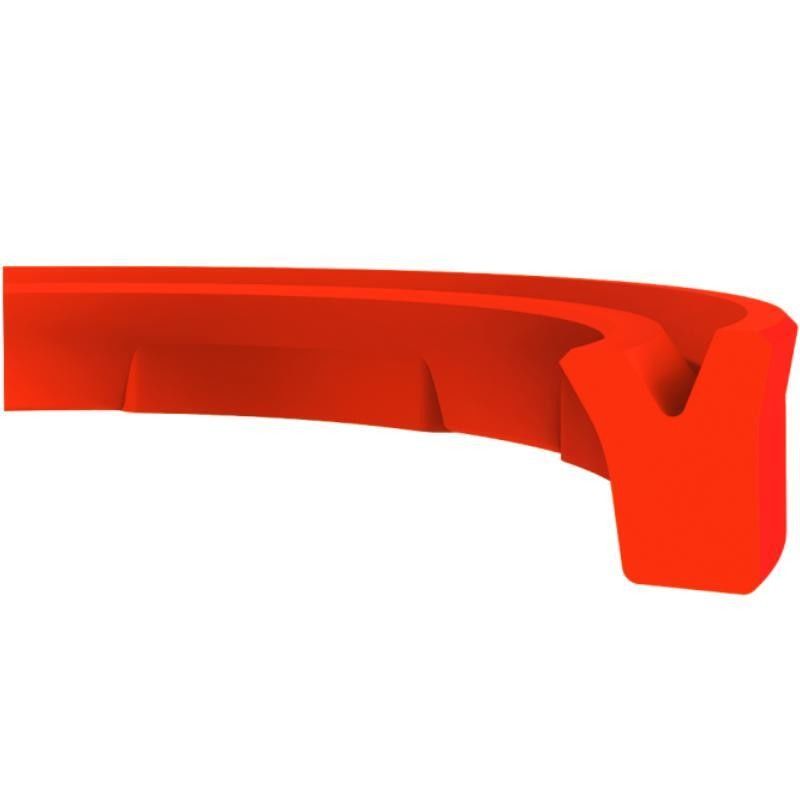

PU Material Low Friction Rod Seal With High Extrusion Resistance Hydraulic Rod Seal
KL01 is a product that has the ability to react quickly to sudden pressure changes with its improved design, thin oil film and low friction performance. Design if FR200 allows the seal to relief hydrodynamic pressure in the system safely.

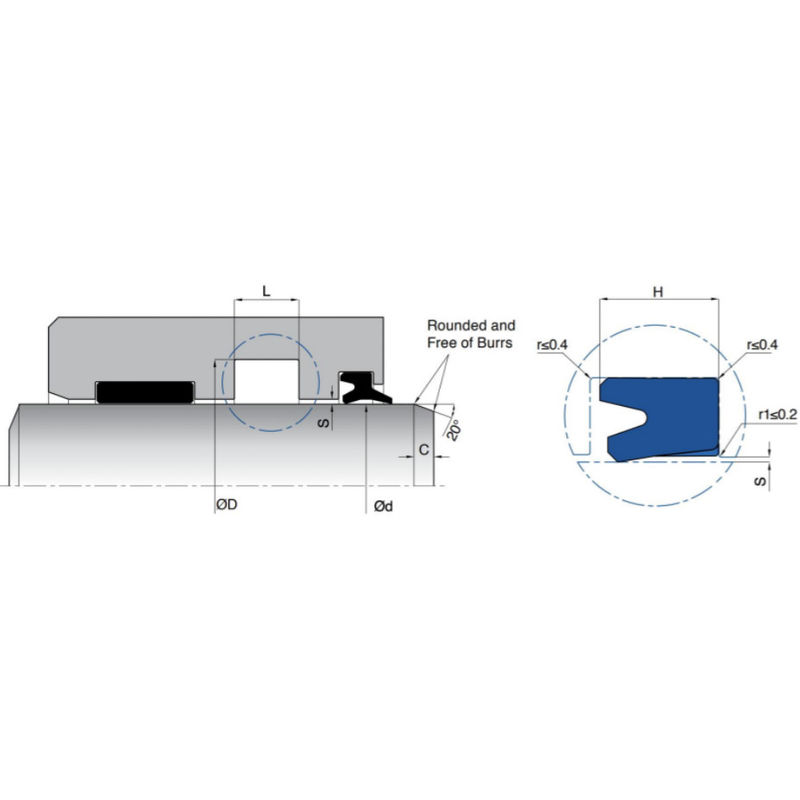

| d (f8) | D (H10) | L (+0.2/-0) | H | C | MATERIAL | |
| KL01-015 | 15 | 20 | 5 | 4.5 | 2 | PU |
| KL01-016 | 16 | 24 | 6.3 | 5.7 | 2 | PU |
| KL01-016/1 | 16 | 22 | 5.7 | 5.1 | 2 | PU |
| KL01-018 | 18 | 26 | 6.3 | 5.7 | 2 | PU |
| KL01-020 | 20 | 28 | 6.3 | 5.7 | 2 | PU |
| KL01-020/1 | 20 | 26 | 5.7 | 5.1 | 2 | PU |
| KL01-022 | 22 | 30 | 6.3 | 5.7 | 3 | PU |
| KL01-022/1 | 22 | 32 | 8 | 7.2 | 3 | PU |
| KL01-025 | 25 | 33 | 6.3 | 5.7 | 3 | PU |
| KL01-025/1 | 25 | 35 | 8 | 7.2 | 3 | PU |
| KL01-025/2 | 25 | 31 | 5.7 | 5.1 | 3 | PU |
| KL01-028 | 28 | 36 | 6.3 | 5.7 | 3 | PU |
| KL01-028/1 | 28 | 38 | 8 | 7 | 3 | PU |
| KL01-030 | 30 | 40 | 8 | 7.2 | 3 | PU |
| KL01-030/1 | 30 | 38 | 6.3 | 5.7 | 3 | PU |
| KL01-032 | 32 | 42 | 8 | 7.2 | 3 | PU |
| KL01-036 | 36 | 46 | 8 | 7.2 | 3 | PU |
| KL01-036/1 | 36 | 44 | 6.3 | 5.7 | 3 | PU |
| KL01-040 | 40 | 50 | 8 | 7.2 | 3.5 | PU |
| KL01-040/1 | 40 | 48 | 7 | 6.3 | 3.5 | PU |
| KL01-045 | 45 | 55 | 8 | 7.2 | 3.5 | PU |
| KL01-045/1 | 45 | 53 | 6.3 | 5.7 | 3.5 | PU |
| KL01-050 | 50 | 60 | 8 | 7.2 | 3.5 | PU |
| KL01-055 | 55 | 65 | 8 | 7.2 | 4.5 | PU |
| KL01-056 | 56 | 71 | 12.5 | 11.2 | 4.5 | PU |
| KL01-060 | 60 | 70 | 8 | 7.2 | 4.5 | PU |
| KL01-060/1 | 60 | 75 | 12.5 | 11.2 | 4.5 | PU |
| KL01-063 | 63 | 78 | 12.5 | 11.2 | 4.5 | PU |
| KL01-065 | 65 | 75 | 8 | 7.2 | 4.5 | PU |
| KL01-070 | 70 | 85 | 12.5 | 11.2 | 4.5 | PU |
| KL01-080 | 80 | 95 | 12.5 | 11.2 | 5 | PU |
| KL01-090 | 90 | 105 | 12.5 | 11.2 | 5 | PU |
| KL01-100 | 100 | 120 | 16 | 14.4 | 5 | PU |
